HC&D Adjustable Long Travel Threaded Strut Cup Kit

The HC&D adjustable threaded strut cup is the pinnacle for front suspension adjustment.  Our newly designed wide body adjustable strut cup features a 1/2" wider thread diameter, allowing sufficient space inside the cup for accommodating long-travel struts. The larger cups provide more clearance for the socket wrench when making adjustments,

Additionally, they allow for infinite ride height adjustment without the need for adjusting spring height and increase/decrease in travel in the front strut. Our kit makes adjustments as easy as possible by using the supplied socket and spanner wrench.

Specs:

• Billet 4130 threaded outer cup
• Billet 6061 aluminum threaded inner cup
• 2" of travel adjustment
• Wider outer cup for long travel applications
• Taller outer cup (2.375" of weldable surface height) than competitors allowing for a larger notch on the front strut cup support tubes
• Teflon lined COM12T spherical bearings
• Electroless nickel plated socket and spanner wrench

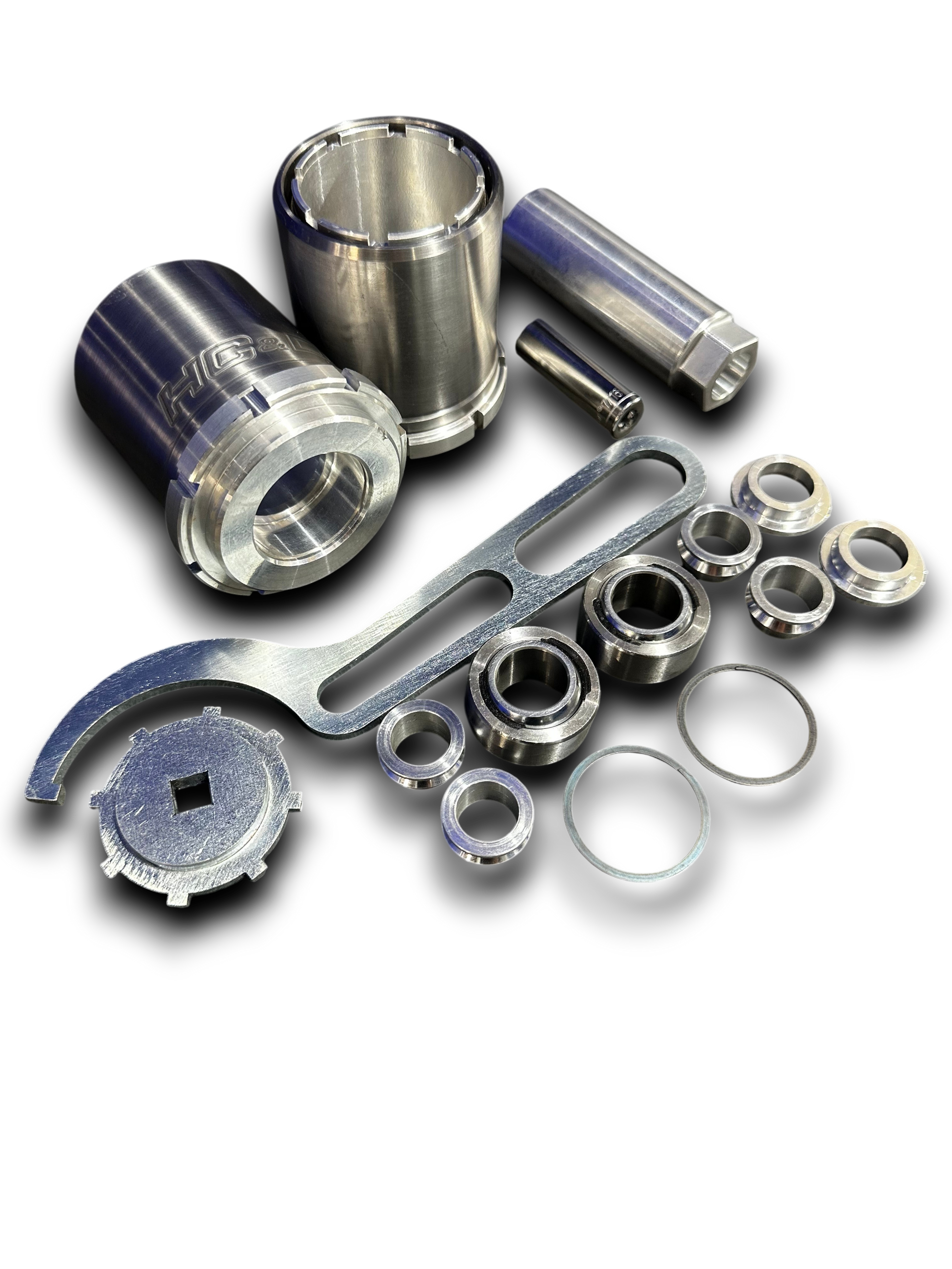

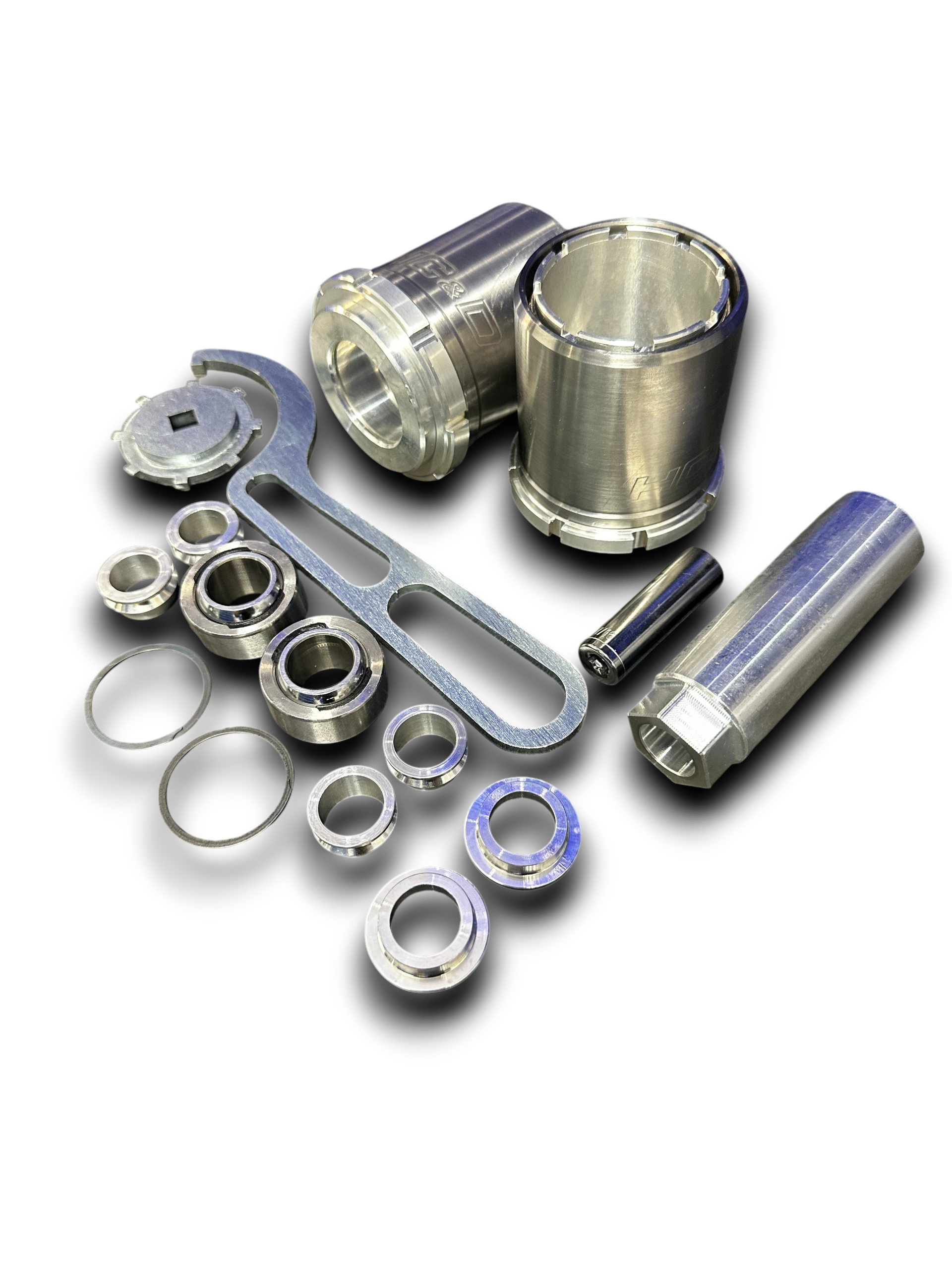

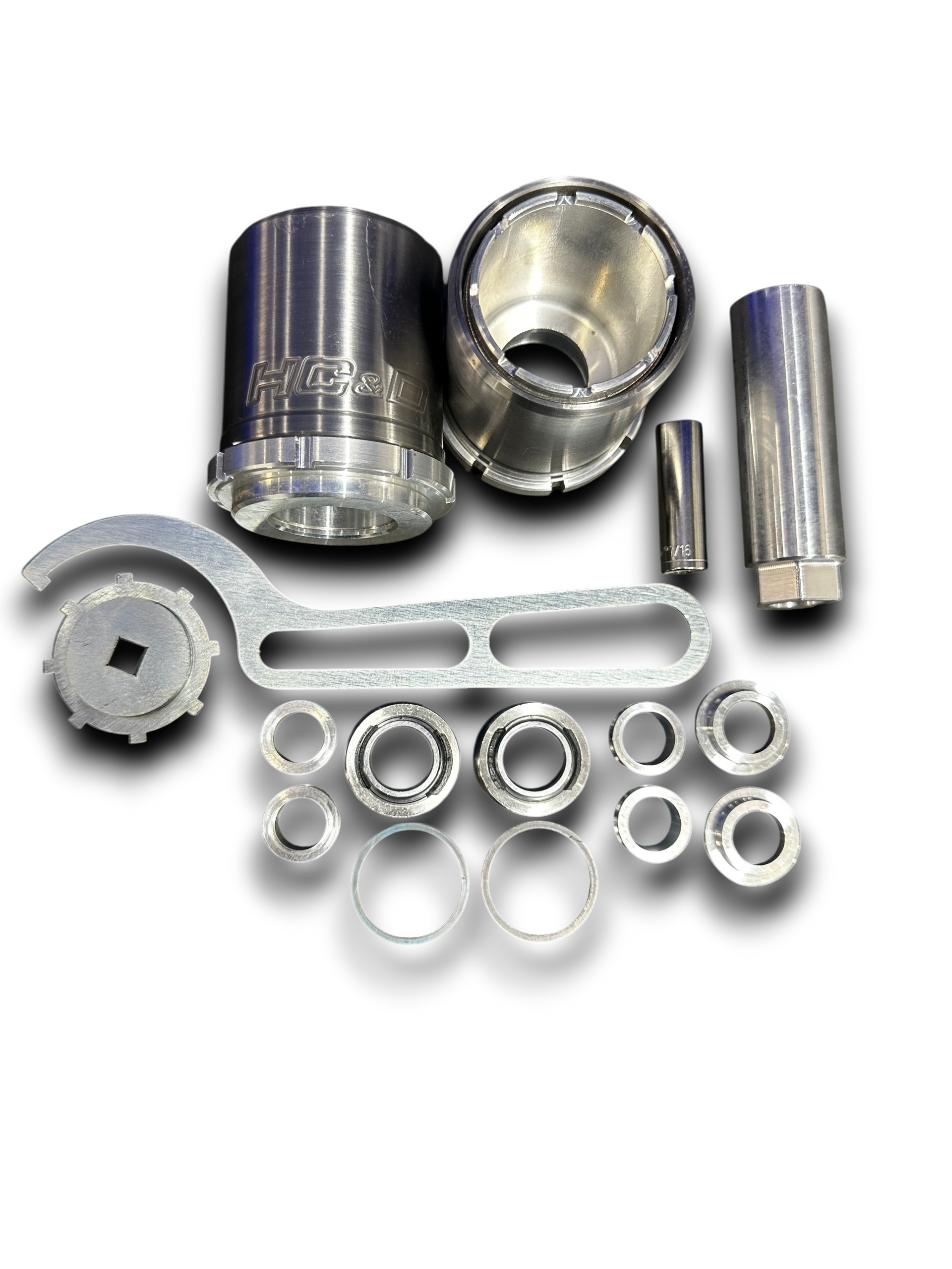

Kit includes:

• 2ea outer wide threaded cups
• 2ea inner wide threaded cups
• 2ea spanner nuts
• 2ea thrust bearing spacers
• 2ea misalignment spacers
• 2ea COM12T spherical bearings
• 2ea spiral locks
• 1ea adjustment socket tool
• 1ea spanner wrench

Options:

• 5/8 ID misalignment spacers
• 11/16 ID misalignment spacers

***Misalignment spacer ID is commensurate with the stepped diameter portion of your strut between the top thread and main shaft***
