Adjustable Strange Modular Housing 4 Link Brackets (Titanium)
Description

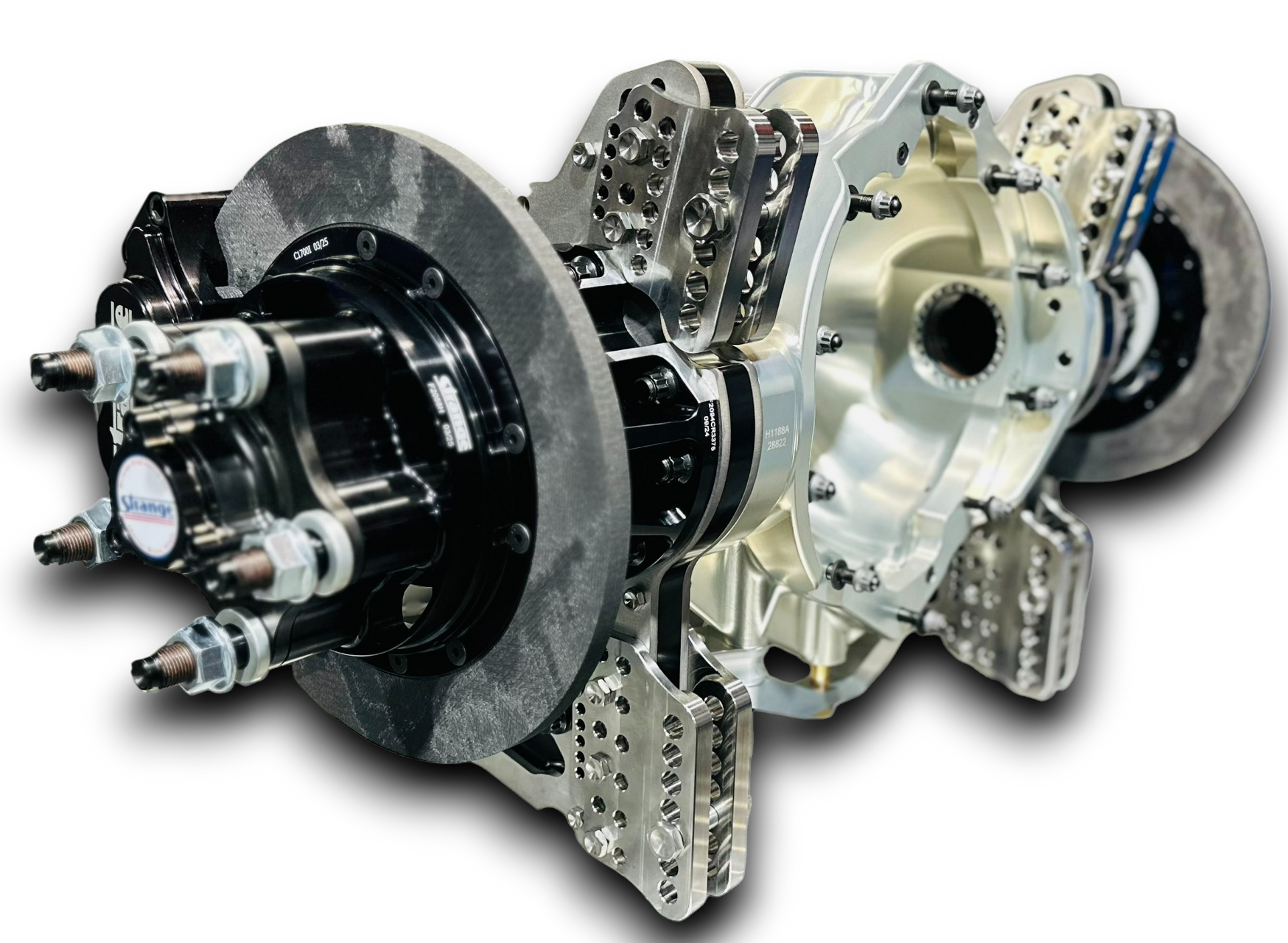

Crafted with precision engineering and superior materials, this bracket kit is designed to perfectly complement the new Strange 11" Billet Pro Mod Housing. Our bracket system is renowned for its exceptional performance and lightweight design, making it the top choice for racers like Mark Micke, who currently holds the record for the fastest Pro Mod using our bracket setup.
This is a custom setup that requires the modular housing and end bells to be modified and machined. We have a streamlined process with the engineering department at Strange to complete the modifications. Each housing is made to order and has a 2-3 week lead time. Call us to order the housing/bracket combo
***US Patent 11396213***
Specs:
- Saves approx. 14 lbs vs the 4130 version of this bracket setup
- Titanium main bracket material
- Ttianium heim bracket material
- 1/4" main brackets
- 3/4" billet aluminum spacer
- A beefy 1/2" material per side around the 4 link bar holes for a total of 1" of material
- NAS hardware
- Keyway locking system for ultimate strength
- Modular bolt together design for direct fit on the Strange "Pro Mod" modular housing
- 1/2" Holes on 5/8" spacing
- 1/8" adjustment capability
- Billet aluminum adjustable shock mounts

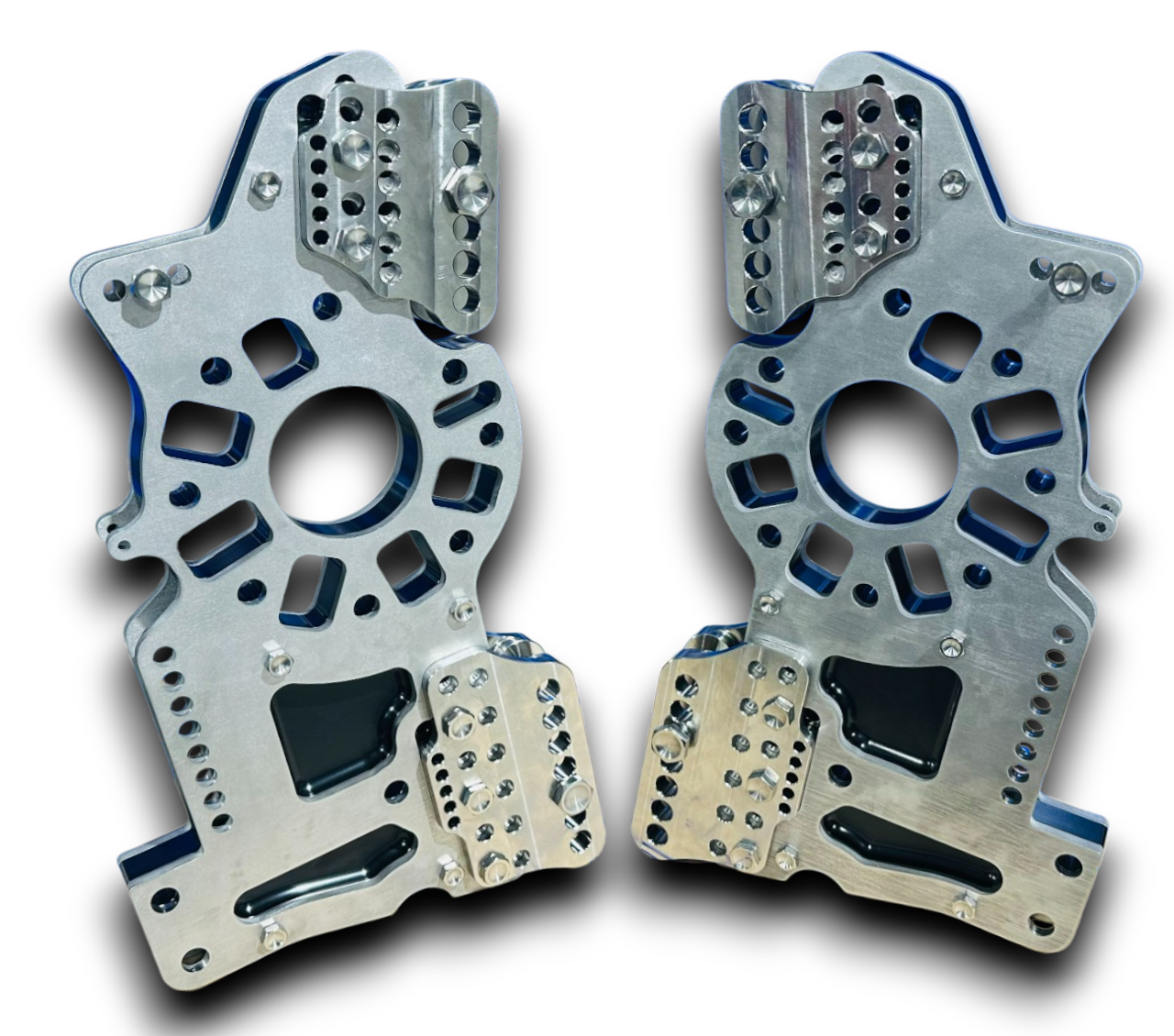

Adjustable Strange Modular Housing 4 Link Bracket kit will include:
- 4ea 1/4” 4 link housing main brackets
- 2ea 3/4" 4 link housing main bracket spacers
- 4ea 4 link housing upper heim brackets
- 4ea 4 link housing lower heim brackets
- 2ea Billet Adjustable shock mounts
- 3/8-24 NAS bolts, NAS washers, and nylon jam nuts
- 1/4-28 NAS/12 point bolts, NAS washers, and nylon jam nuts
- O-rings for sealing brackets
