Strange Billet 9-11" Modular Floater Housing

This billet modular floater housing is specifically designed to withstand and excel in the most demanding applications. It is equipped with removable lugs, allowing for customization with 9", 9 1/2", 10", 10 1/2" Chrisman, and 11" Lazarus style 3rd members. Paired with the HC&D 1/8" adjustable 4 link brackets, the potential for adjustments is virtually limitless.

The Strange Billet 9-11" Modular Floater Housing Assembly allows customization with options for brakes, bolt circle size (4 3/4", 5", or 5 1/2"), 4 link width, and wheel to wheel width. This provides versatility and flexibility in configuring the housing to your specifications. Choose from various options for 4-link brackets, including traditional-style and patented 1/8" adjustable designs, available for separate purchase.

***4-Link Brackets, Axles, & Center Section Sold Separately***

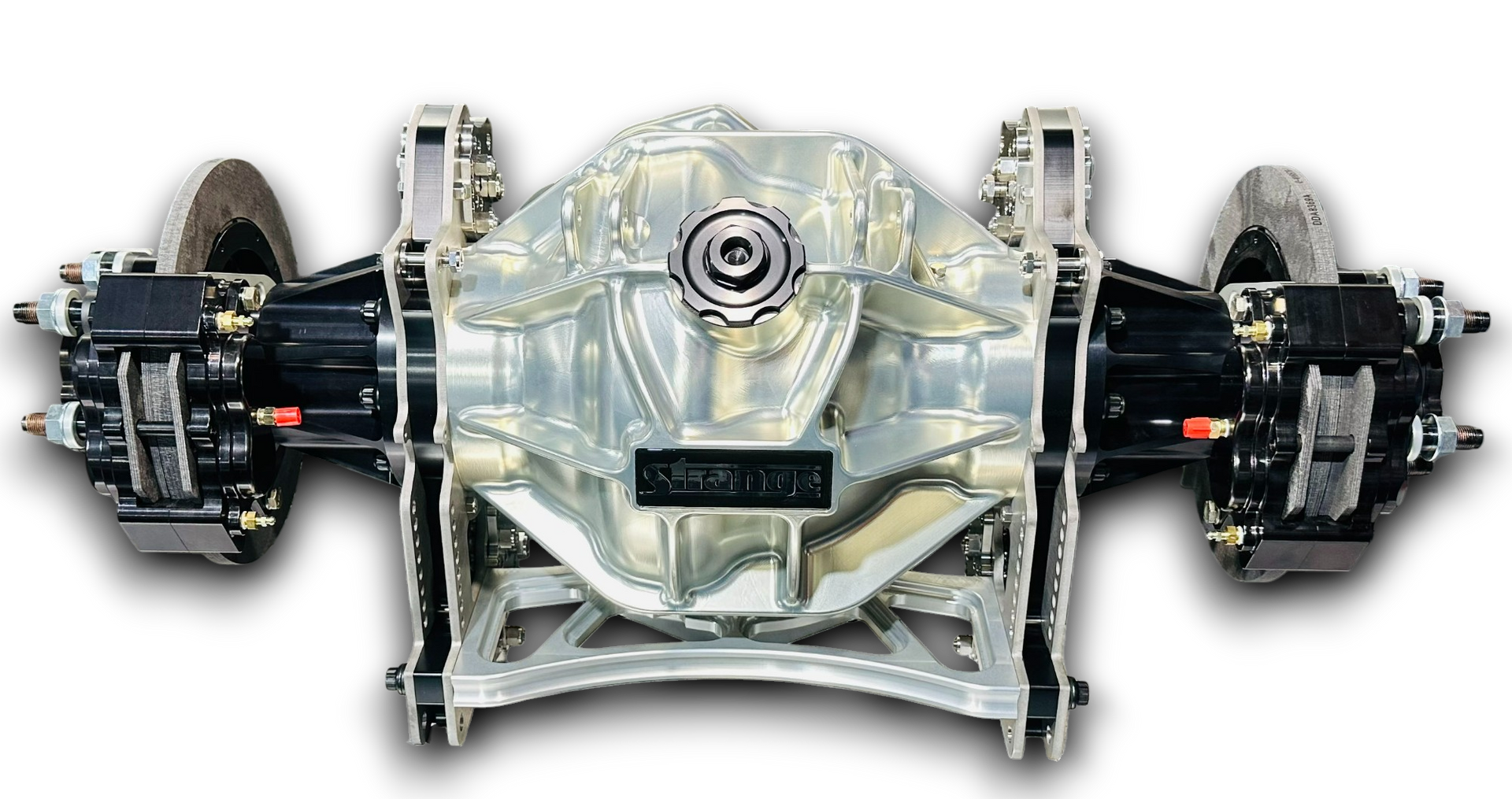

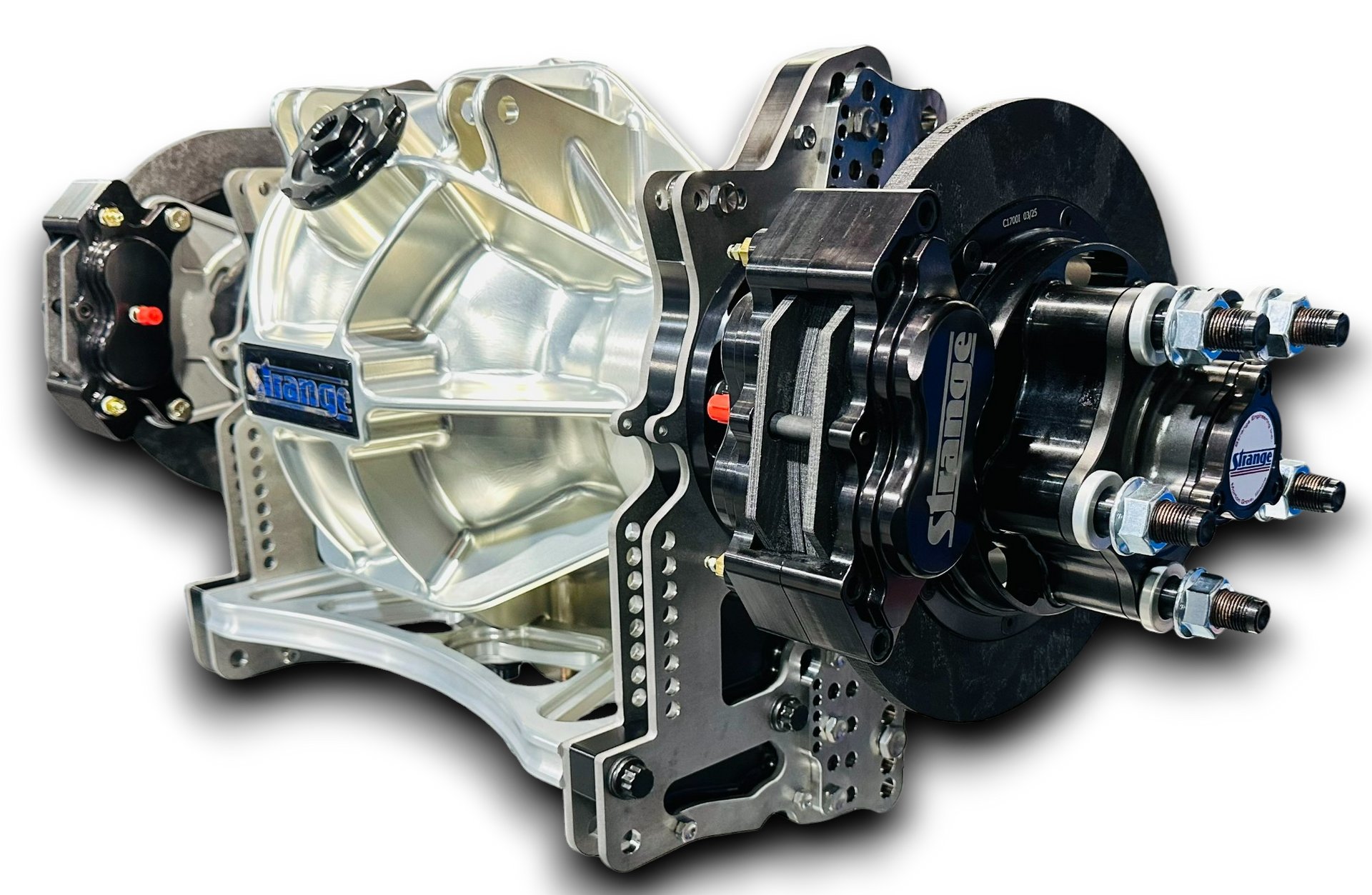

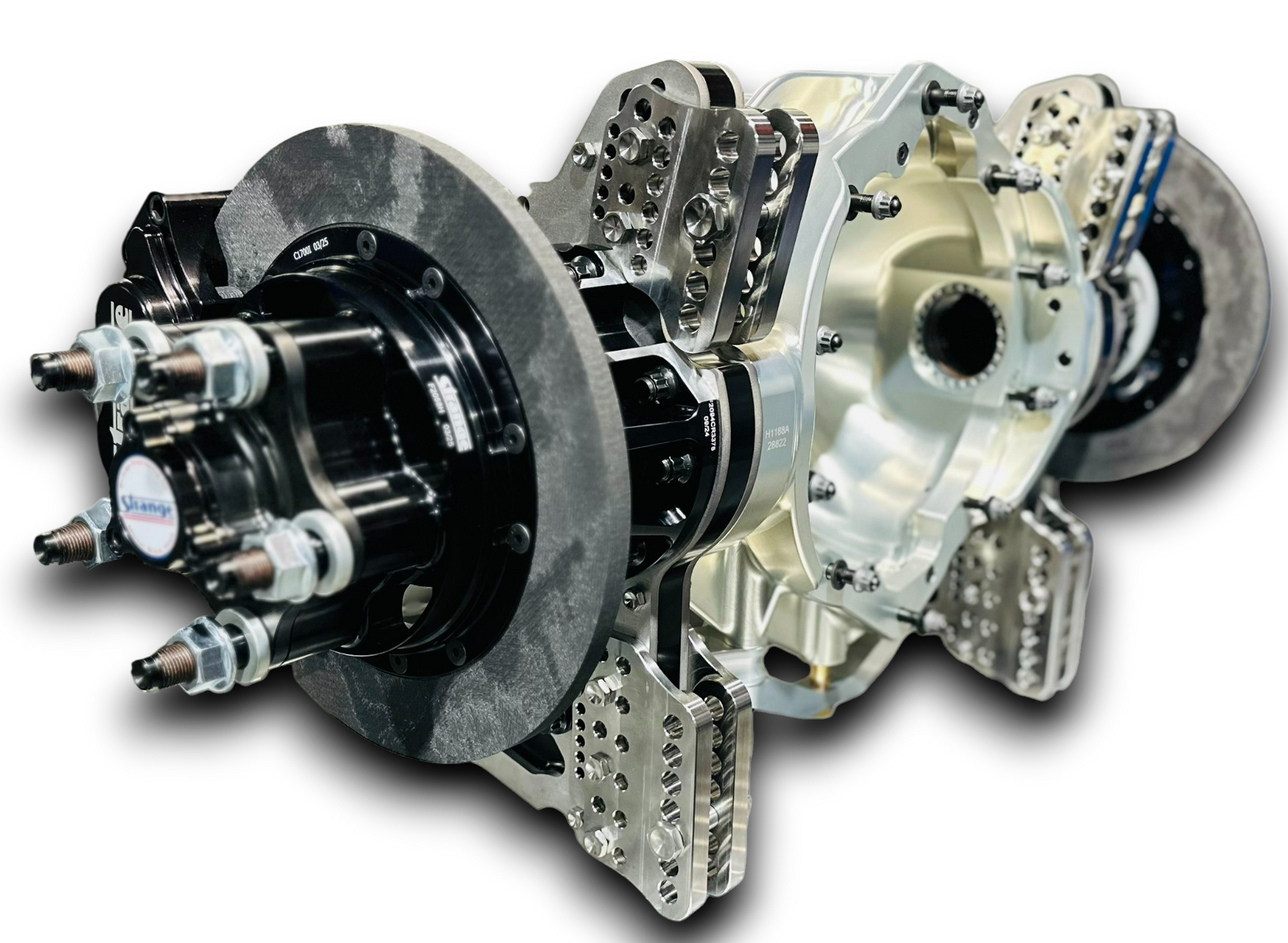

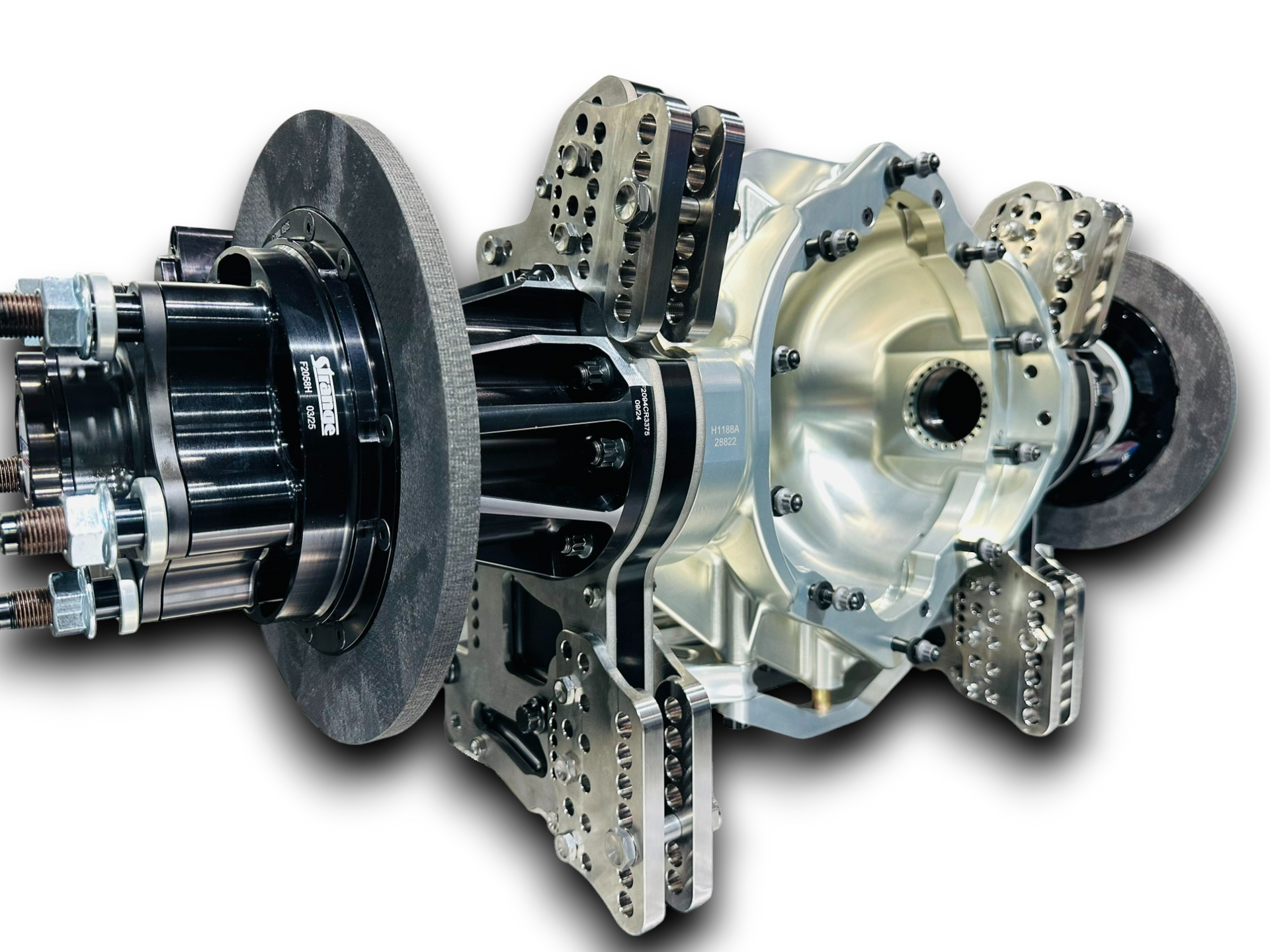

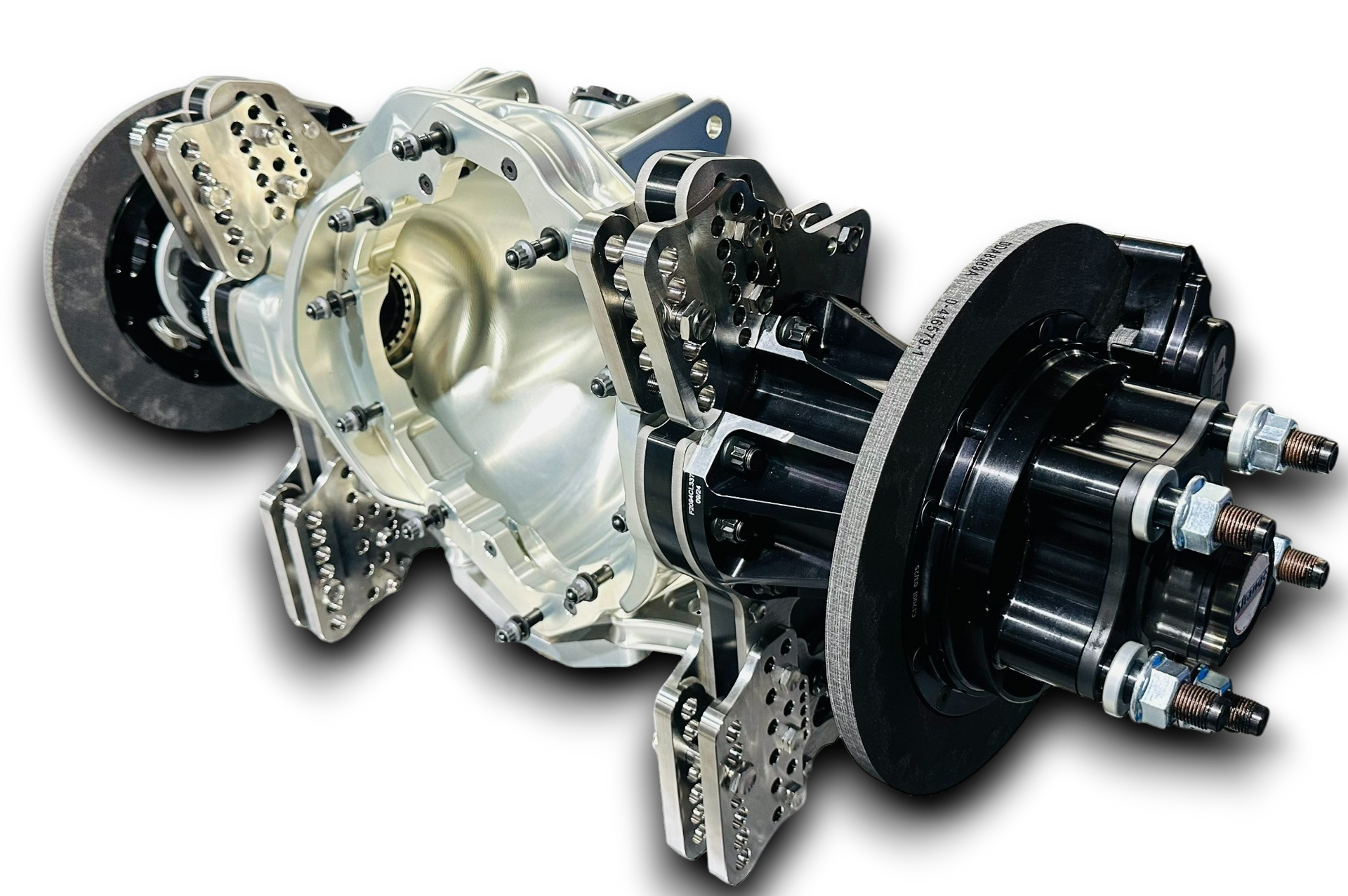

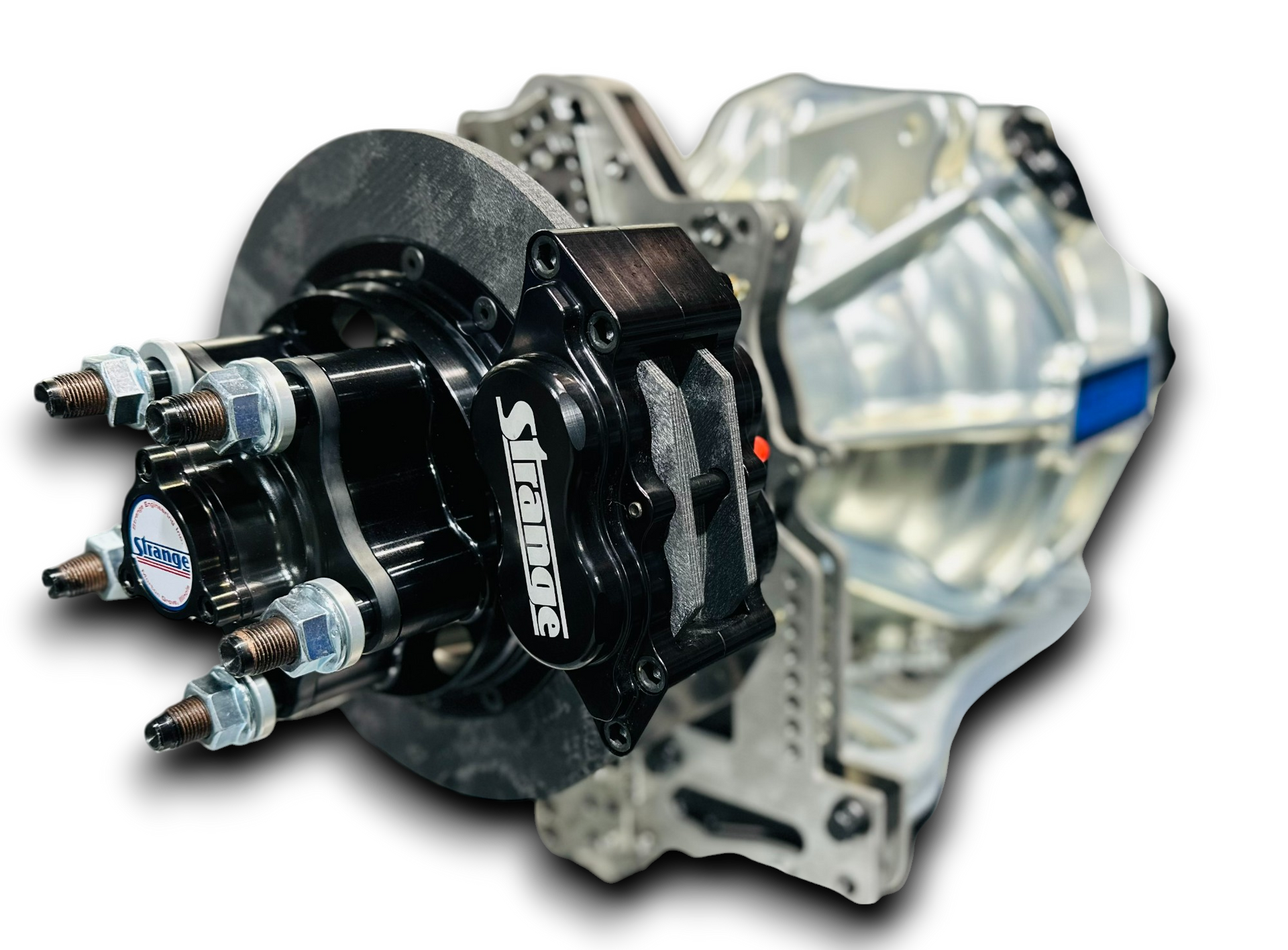

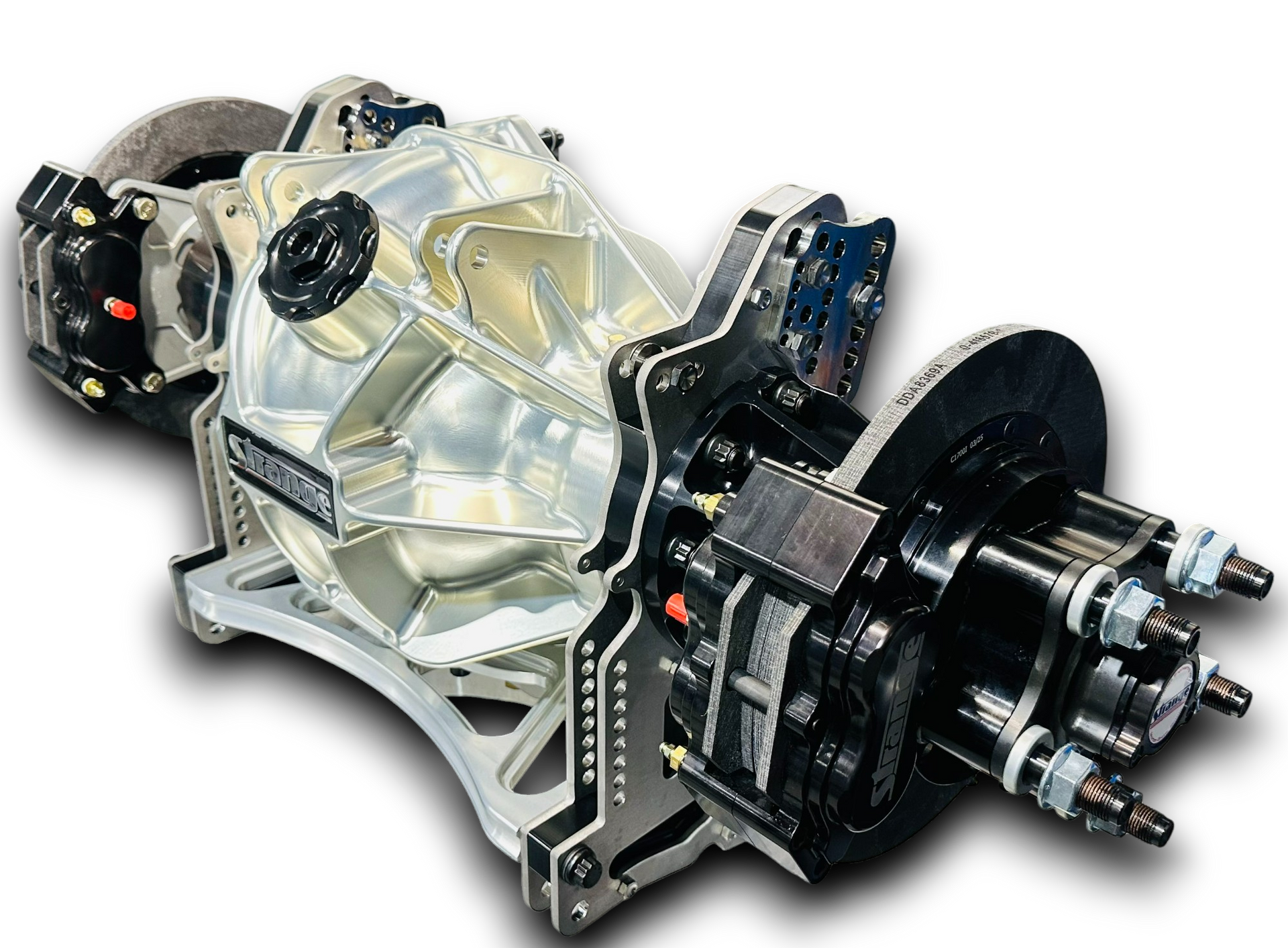

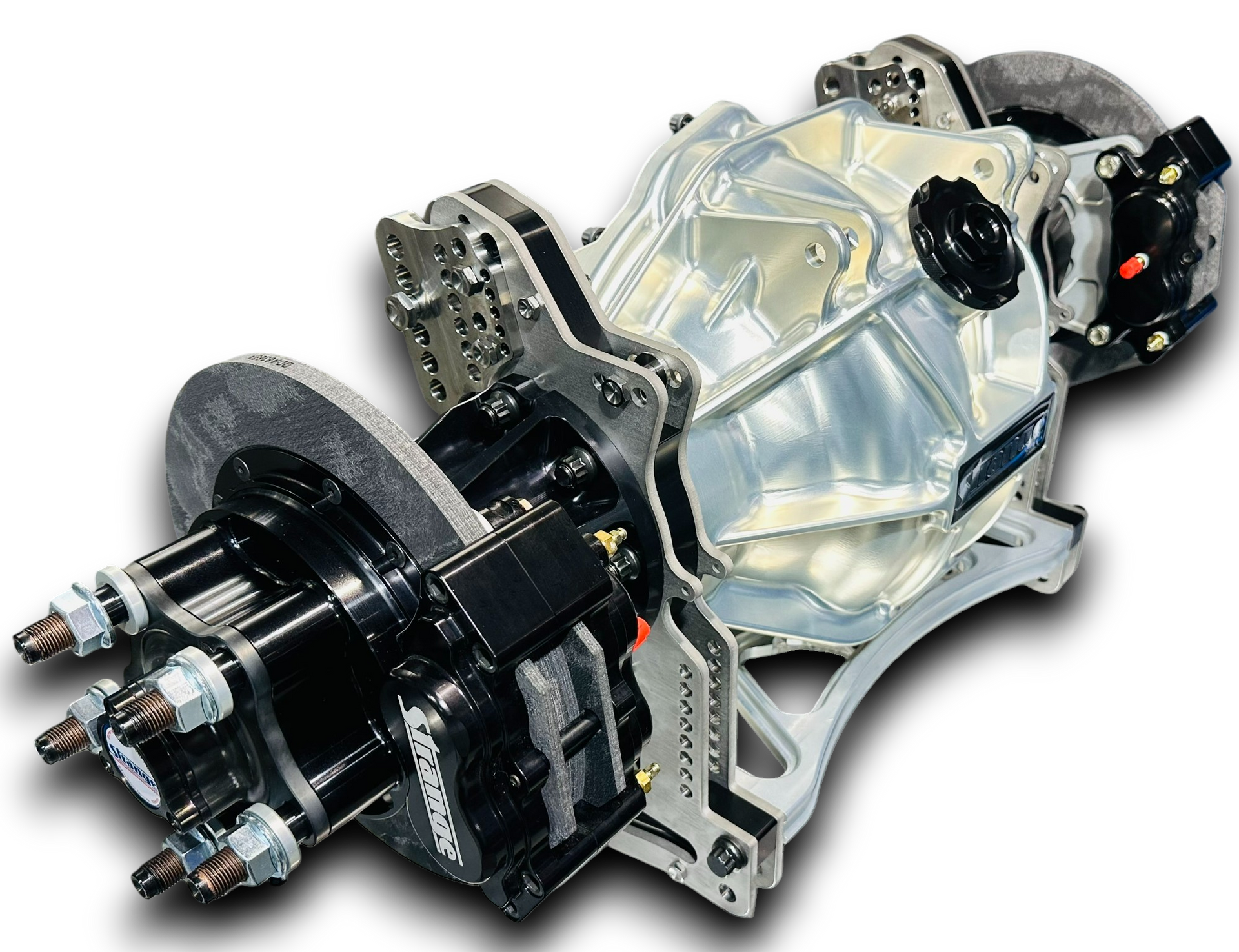

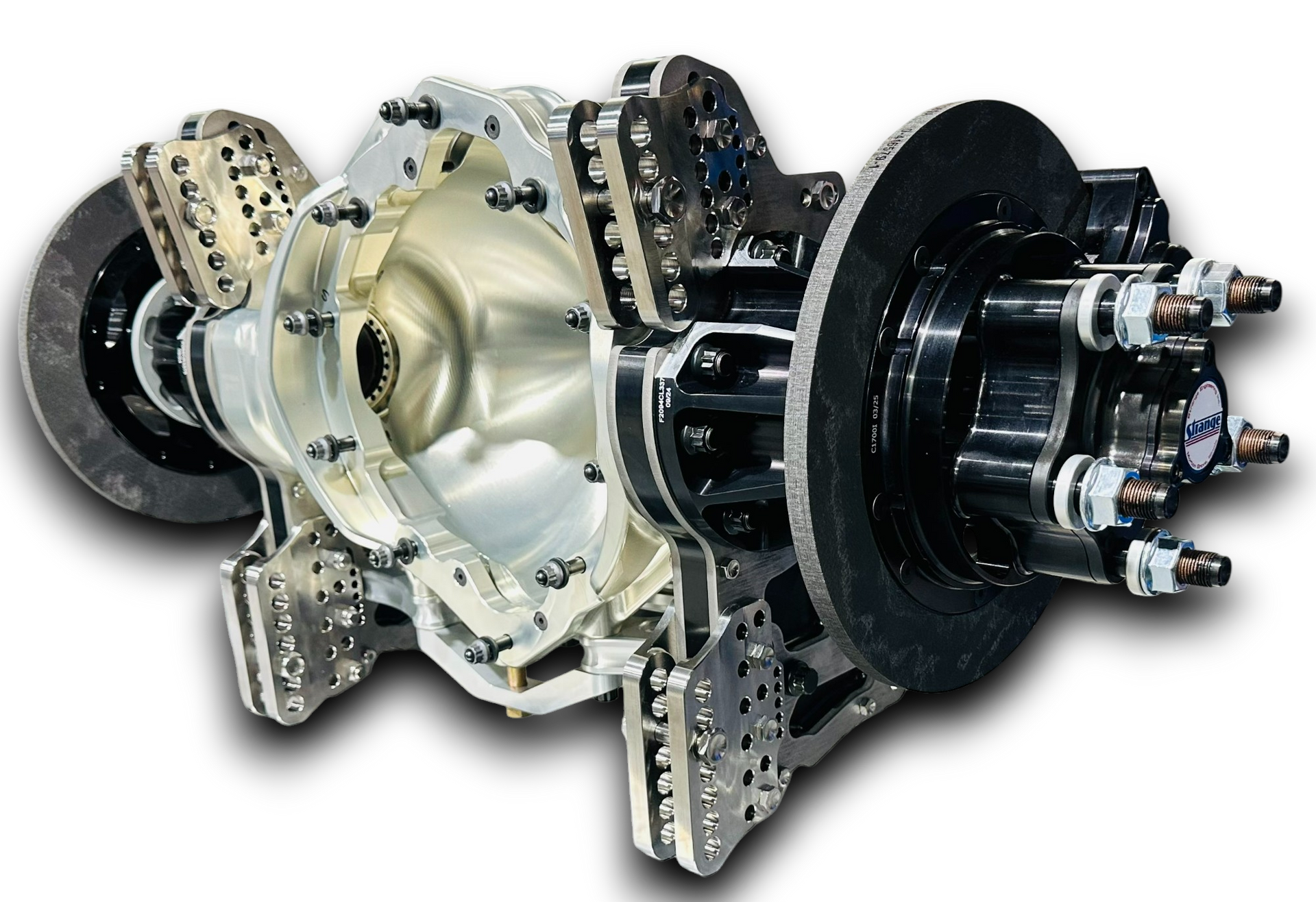

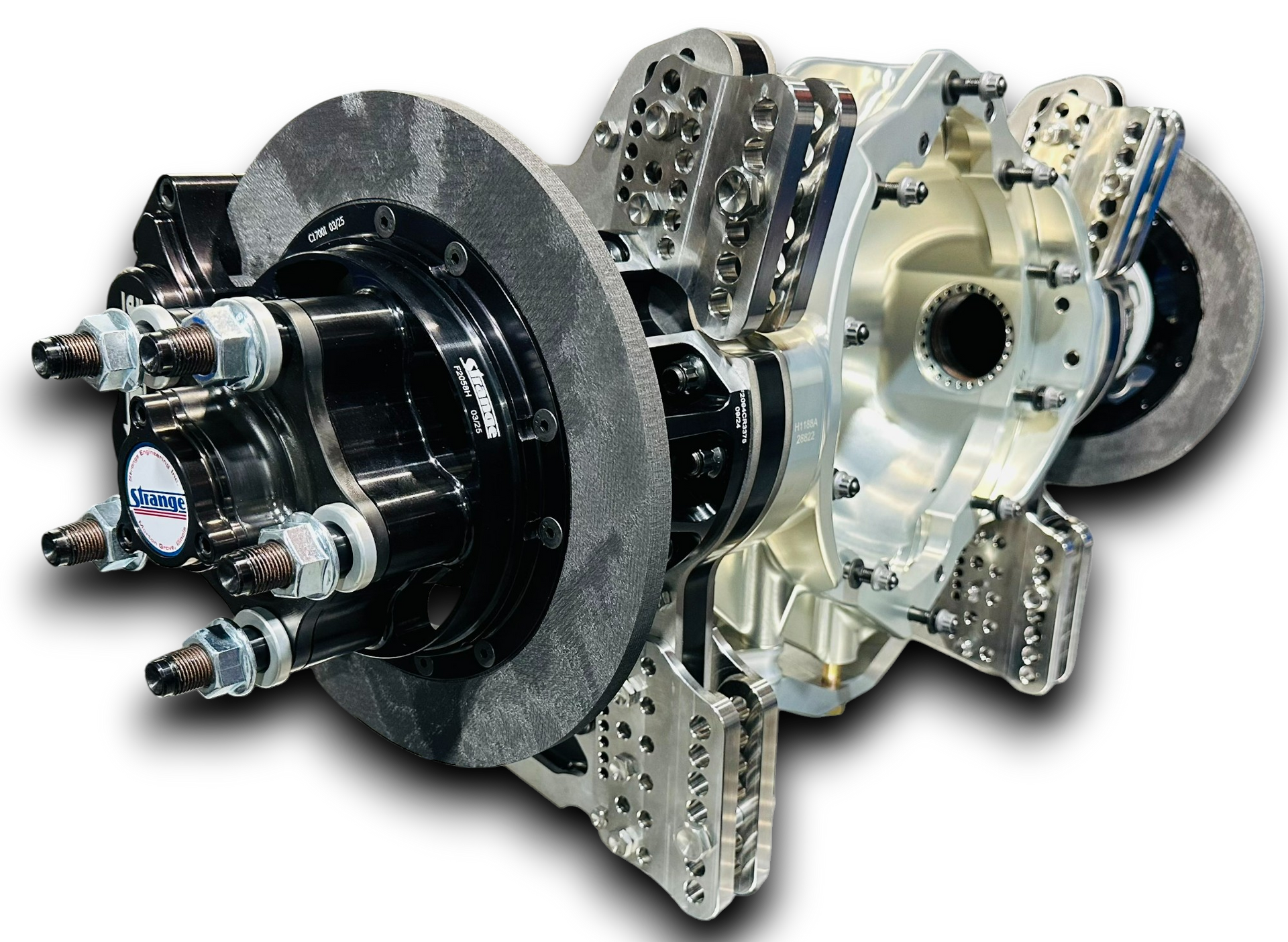

***Carbon brake option pictured***

Available Wheel to Wheel Widths

16″ 4-Link Centers
31.750″ / 32.750″ / 33.250″ / 33.750″ / 34.250″ / 34.750″ / 41.00 *, 42.00 *

17″ 4-Link Centers
32.750″ / 34.250″ / 34.750″ / 42.00 *

18″ 4-Link Centers
33.750″ / 34.750″ / 35.250″ / 35.750″ / 36.250″ / 36.750″ / 43.00 *, 44.00 *

19″ 4-Link Centers
34.750″ / 36.250″ / 36.750″ / 44.00 *

20″ 4-Link Centers
35.750″ / 36.750″ / 37.250″ / 37.750″ / 38.250″ / 38.750″ / 45.00 *, 46.00 *

21″ 4-Link Centers
36.750″ / 38.250″ / 38.750″ / 46.00 *

22″ 4-Link Centers
37.750″ / 38.750″ / 39.250″ / 39.750″ / 40.250″ / 40.750″ / 47.00* , 48.00 *

23″ 4-Link Centers
38.750″ / 40.250″ / 40.750″ / 48.00 *

*4 3/4″ & 5″ Bolt Circles Only

Housing

• Billet heat treated aluminum
• 5 axis machined
• Removeable adapter lug to use 9", 9 1/2", 10", 10 1/2" Chrisman, and 11" Lazarus style 3rd members
• Large fill cap allows for gear inspection
• Magnetic drain plug
• Lug design prevents plate & tube rotation
• Integral upper wheelie bar mounts
• Designed & machined by Strange
• Material made in USA

Four Link Spacer Plates
• 6061-T6511 billet aluminum
• Pockets engage housing lugs
• Lightened for weight reduction
• O-rings ensure sealing integrity
• Black anodized

Bottom Four Link Brace
• 6061-T6511 billet aluminum
• Eliminates lower 4 link plate welding
• Lightened for weight reduction
• Black anodized finish

Next Generation Floater Spindles
• 4130 chrome moly
• Increased wall thickness
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Prevents spindle elongation
• Press fit into housing tubes
• Inner end secured by internal locking nut

Housing Tube Ends
• 6061-T651 billet aluminum
• Internal pockets engage housing lugs
• Prevents tube rotation
• Black anodized finish

Solid Preload Spacer
• Stainless steel
• Machined to precise width
• Prevents excessive bearing preload

Spindle Lock System
• Billet heat treated spindle nuts
• Threaded & non-threaded holes
• Dog pilot set screws engage washer
• Washer indexes on spindle keyway
• Maintains consistent bearing preload

Timken® Bearings & Races
• Oversized to increase load capacity
• Ensures long bearing life
• Proven quality from a trusted manufacturer

Wheel Hub
• 2024-T351 billet aluminum
• Scalloped with integral rotor mount
• Reduces weight and additional parts
• Lug design allows rotor to float
• Same hub as used for carbon brakes
• Simplifies later brake conversions

Press-in Wheel Studs
• 8740 chrome moly steel
• Anti-rotational head design
• 5/8″-18 available in two lengths
• Aluminum anti-marring washers
• Flanged steel lug nuts

Drive Plates
• 8620 chrome moly steel
• 40 spline with 45° pressure angle
• Scalloped to remove unnecessary weight

Carbon Brake Kit
• 11″ OD carbon rotor
• Internal lugs mate with aluminum hubs
• Floating design allows for thermal expansion
• Billet aluminum four piston calipers
• Carbon brake pads
• Aluminum caliper mounts

Post in the notes at checkout or email your 4 link spread and wheel to wheel width to us at: hammerconceptsanddesigns@gmail.com
