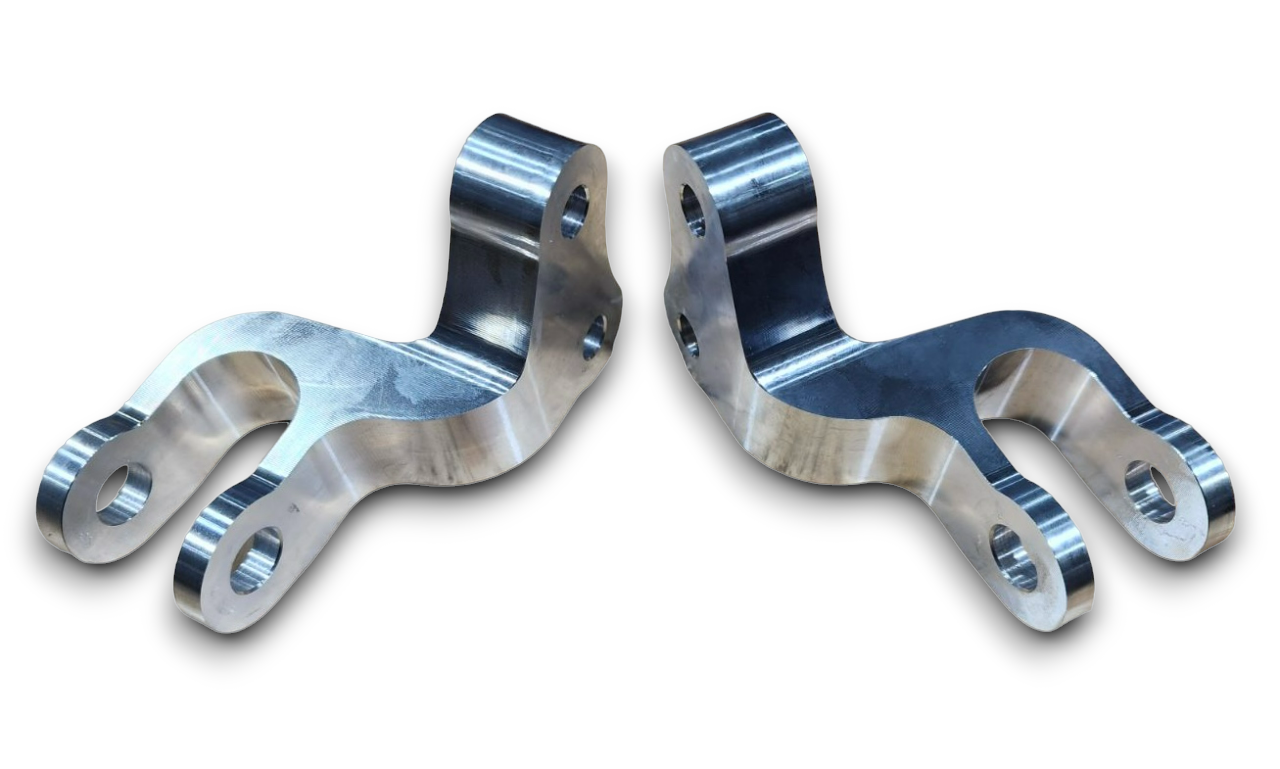

Billet Offset Shock Mount Brackets (Series II)
Description
These billet shock mounts work with all of our 4 link brackets and stock suspension coil over brackets. Made with 1.5" offset to step the shock inboard to align with frame rails when using our splined ARBs that mount to top of the housing 4 link bracket. We made the shock eyelet slot longer than our competitors to resolve known clearance issues. These are 1/3 lighter than our series I billet shock mounts!
Specs:
- 6061 material
- 1 1/2" offset
- 3/4" width for mounting between 4 link or shock brackets
- 3/8" holes on a 1 1/2" spacing (compatible with brackets with a 1/2” or 3/4” hole spacing)
- 1/2" shock mount bolt holes with 1" shock eye spacing
- 3" distance between 3/8" shock bracket mount holes and 1/2" shock eye holes
- Extended and recessed slot to clear an AFCO shock mount body
- Grade 8 hardware included
- Sold in pairs
