Adjustable Housing Stock Suspension Lower Control Arm Brackets (Economy)

$595.00
$595.00
Shipping calculated at checkout.

Description

***US Patent 11396213***

We have came up with an economical solution for 1/8" adjustment placing the capability on the housing. The LCA bracket assembly is made of 4130N making it a great choice for longevity and durability.

The 1/4 bolt serves as the adjustment indicator for a given heim hole choice, adjusting through the sweep in 1/8" increments up to 5/8" before needing to adjust to the next heim hole.

Specs:

  • 4130N material
  • 1/4" main brackets layered x 3 for overall width of 3/4"
  • 1/4" heim brackets
  • 1/8" doublers
  • 12pt grade 9 hardware
  • 3.5" Axle tube radius
  • 1/2" Holes on 5/8" spacing
  • 1/8" adjustment capability

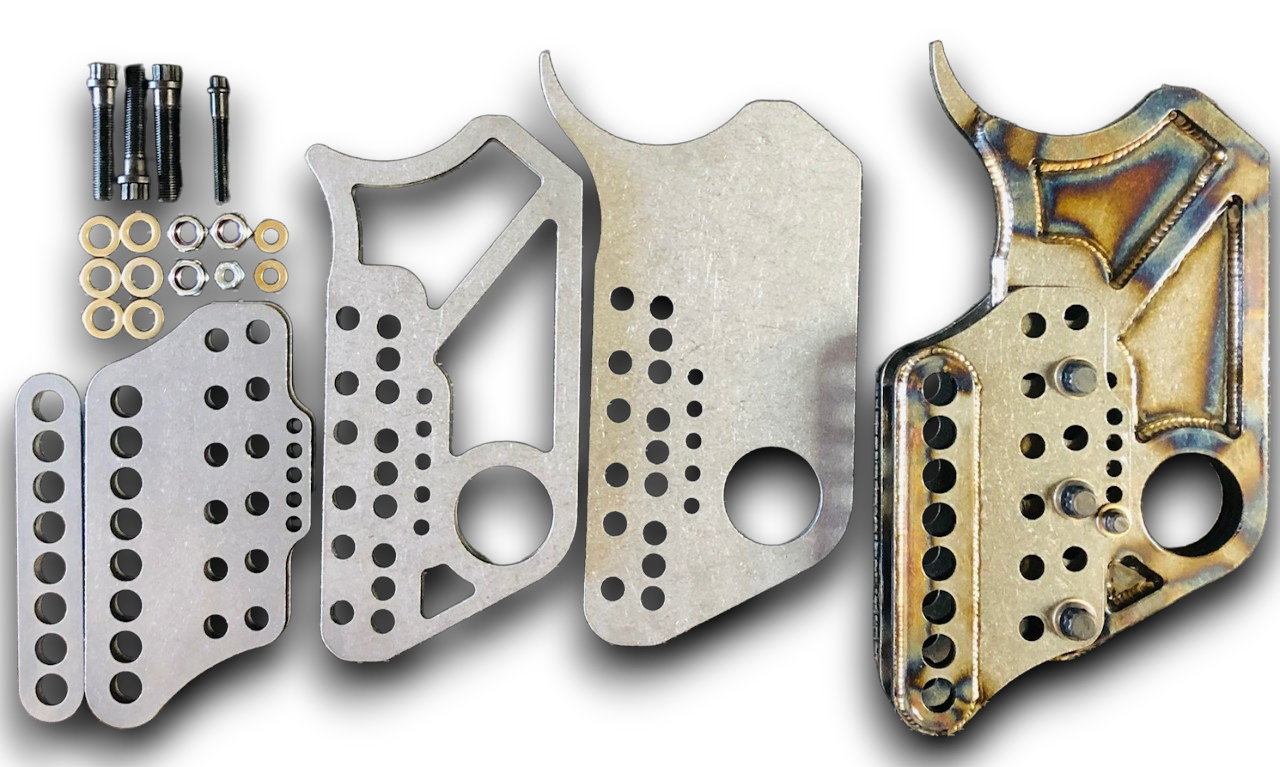

Adjustable LCA Bracket (Economy) kit will include:

  • 2ea 1/4” LCA housing inner brackets
  • 4ea 1/4" LCA housing outer brackets
  • 4ea 1/4" LCA housing lower heim brackets
  • 4ea 1/8" LCA housing lower heim bracket doublers
  • 3/8-24 12 point bolts, NAS washers, and nylon jam nuts
  • 1/4-28 12 point bolts, NAS washers, and nylon jam nuts

***Requires TIG welding. The perimeter of the main bracket layers has an 1/8" step to allow for a good welding surface.  Additionally, the lightening pockets serve as a perimeter for additional welding for maximum bonding and strength***

***Recommend welding no more than 2” at a time alternating ends and sides to minimize heat and distortion.  Clamp to a flat surface is best ***
