Description

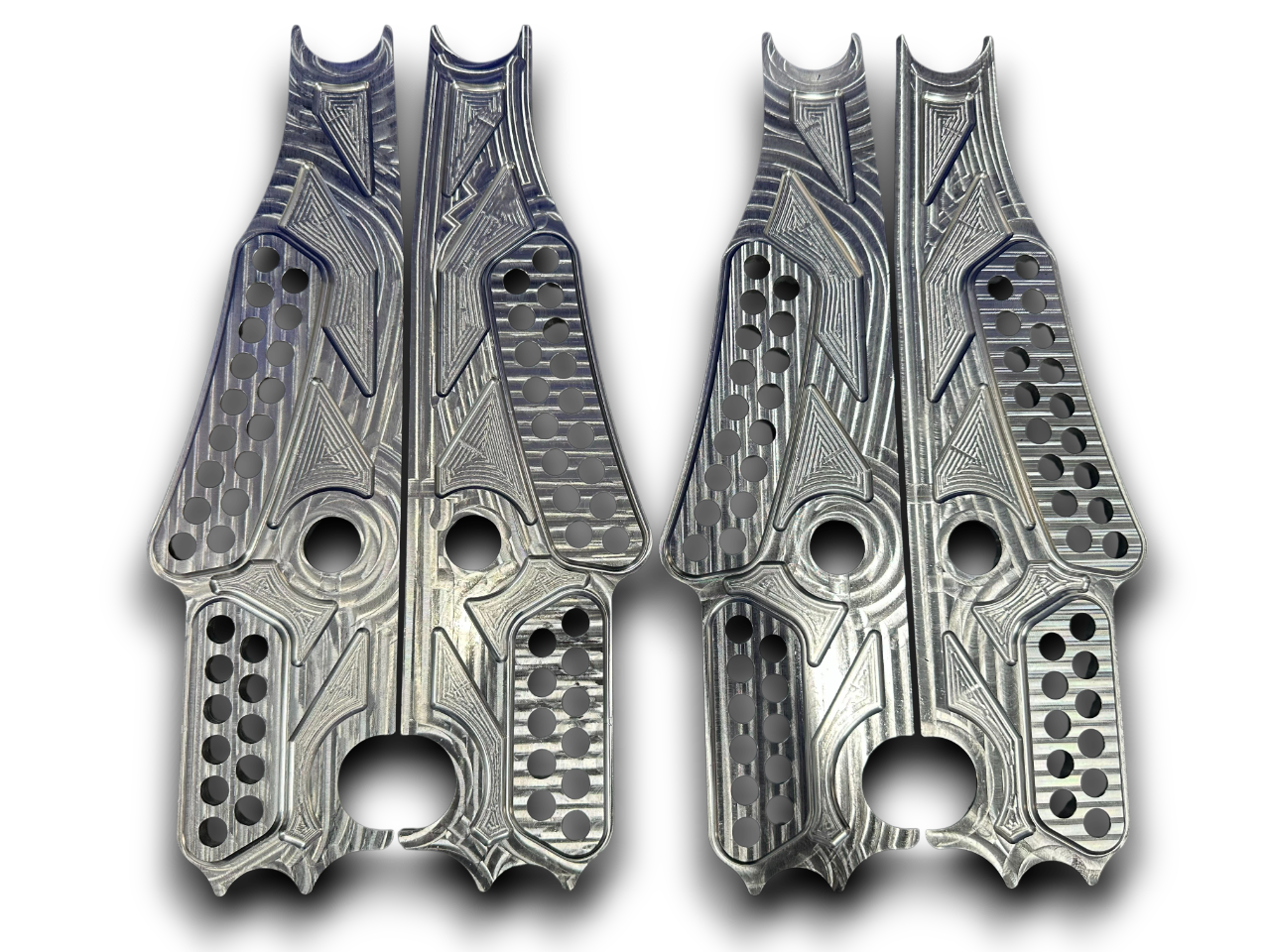

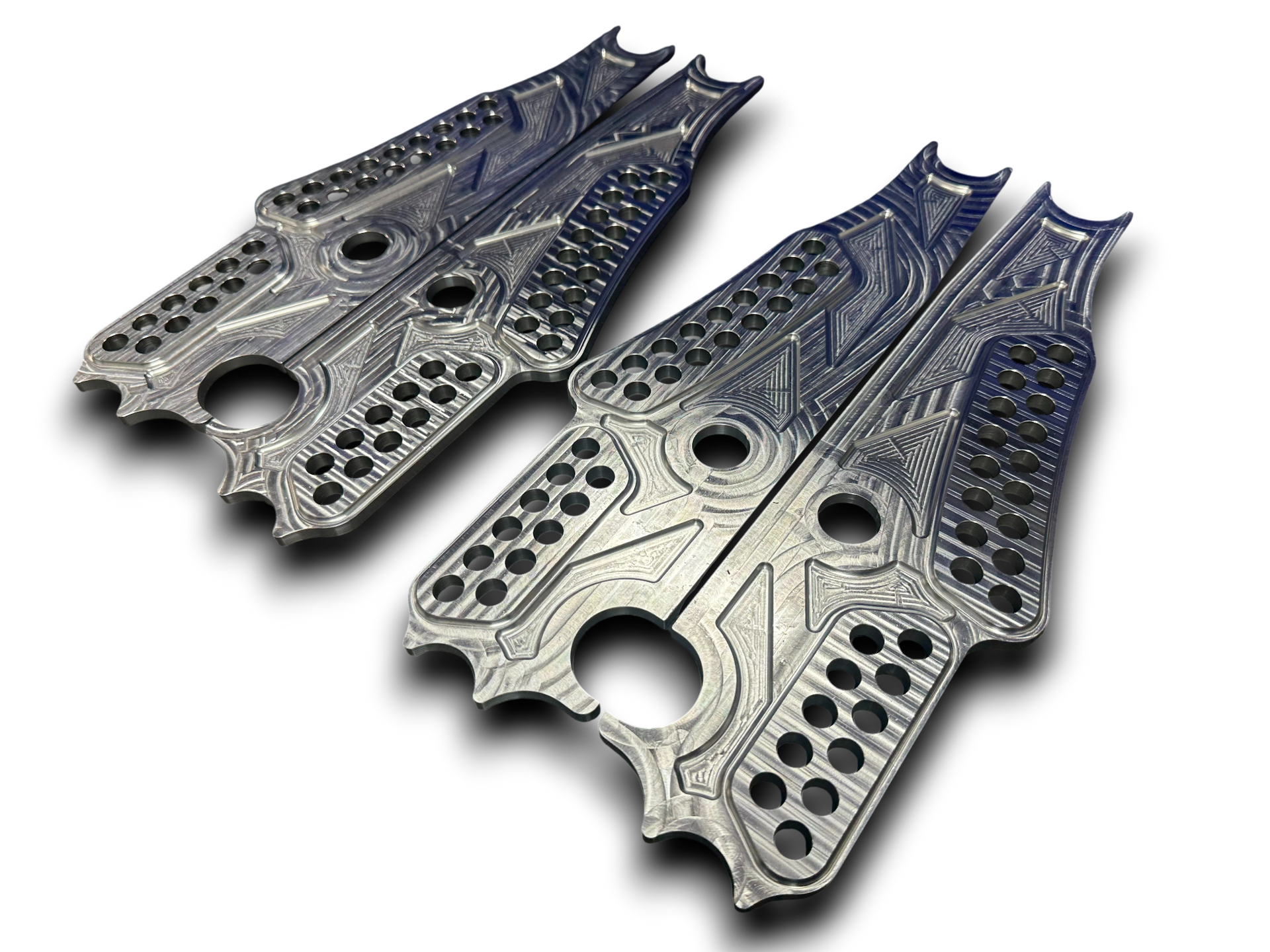

Engineered and CNC machined from premium 4130 billet stock, these chassis brackets deliver precision-machined construction built for high performance racing demands. The traditional design geometry accommodates both large and small tire configurations, making them versatile across diverse racing applications. Tight tolerances and a robust design ensure reliability under extreme conditions and sustained stress.
Specs:
- Billet machined 4130 material
- .285" main bracket
- .090" main bracket machined doublers
- 22" Radius on upper hole arc
- 1 5/8" Tube notches
- 4 deg angle between upper and lower notch center
- Double row 1/2" holes on 5/8" spacing
- 1" center hole for gusset support tubes or shear tube
- Lightening pockets for mass reduction with ribbed gussets for maximum strength
- 13” measurement is from top of #1 bar notch to bottom of #15 bar notch (14 5/8" center to center of notches)
- Pro-Jack notches
***Set of 4 (2 LH / 2 RH)***
