We designed this lightweight titanium A arm kit to eliminate the strut mounting pin misalignment binding issues with better a arm cup alignment both at ride height and extension.
We use a larger diameter tube making this kit suitable for any tube chassis race car application to include short travel, long travel, and drag n drive cars.
Specs:
- All Titanium construction
- 1/4" mounting tab
- 1" Ti GR 9 tubes
- COM10 Uniball (5/8" bore hole)
- QA1 XM 4130 rod ends
- Uniball cup has a 10 degree king pin angle and 10 degrees of positive caster built in
- AN hardware
- Universal kit will work well with most modern style struts

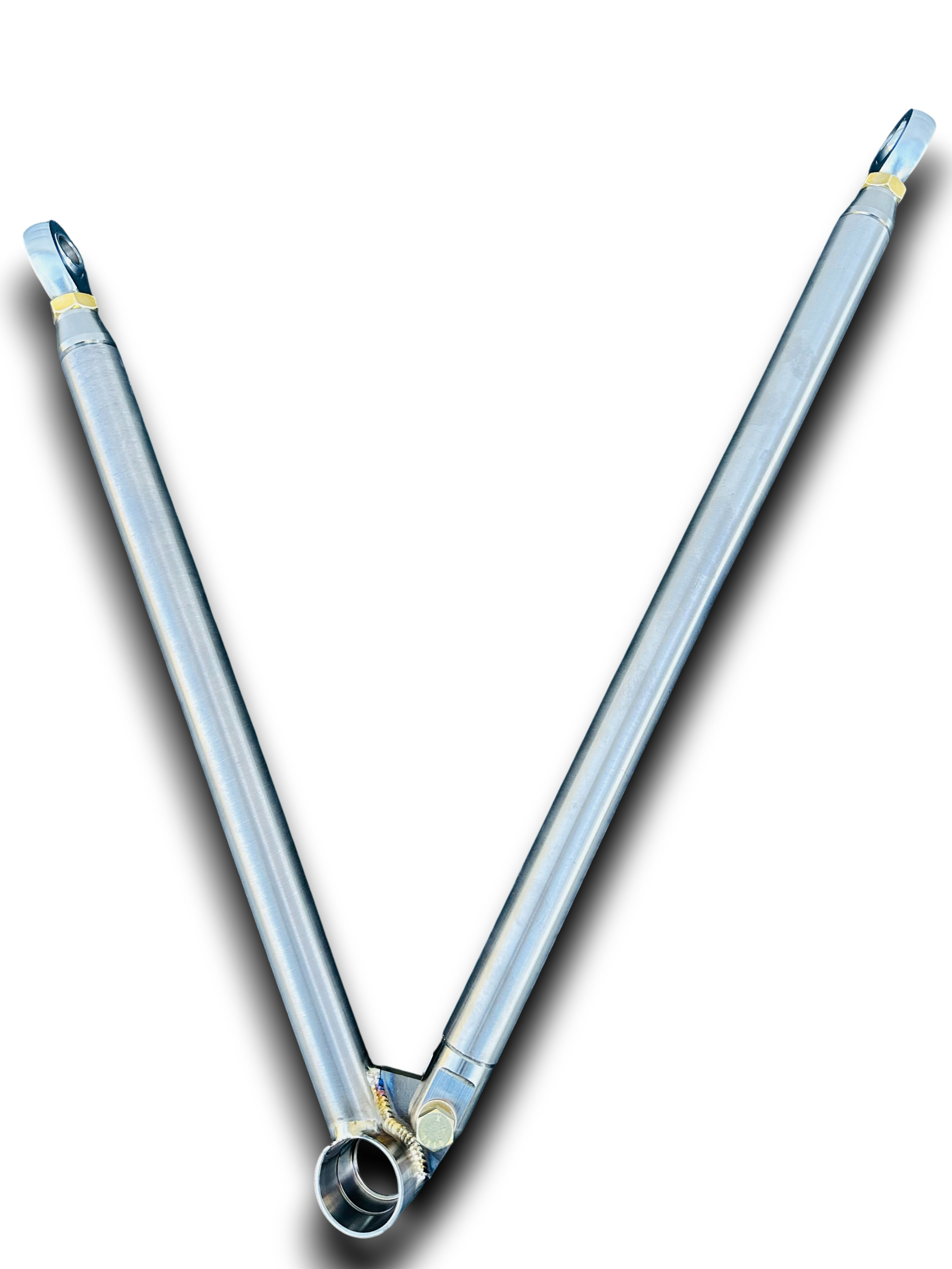

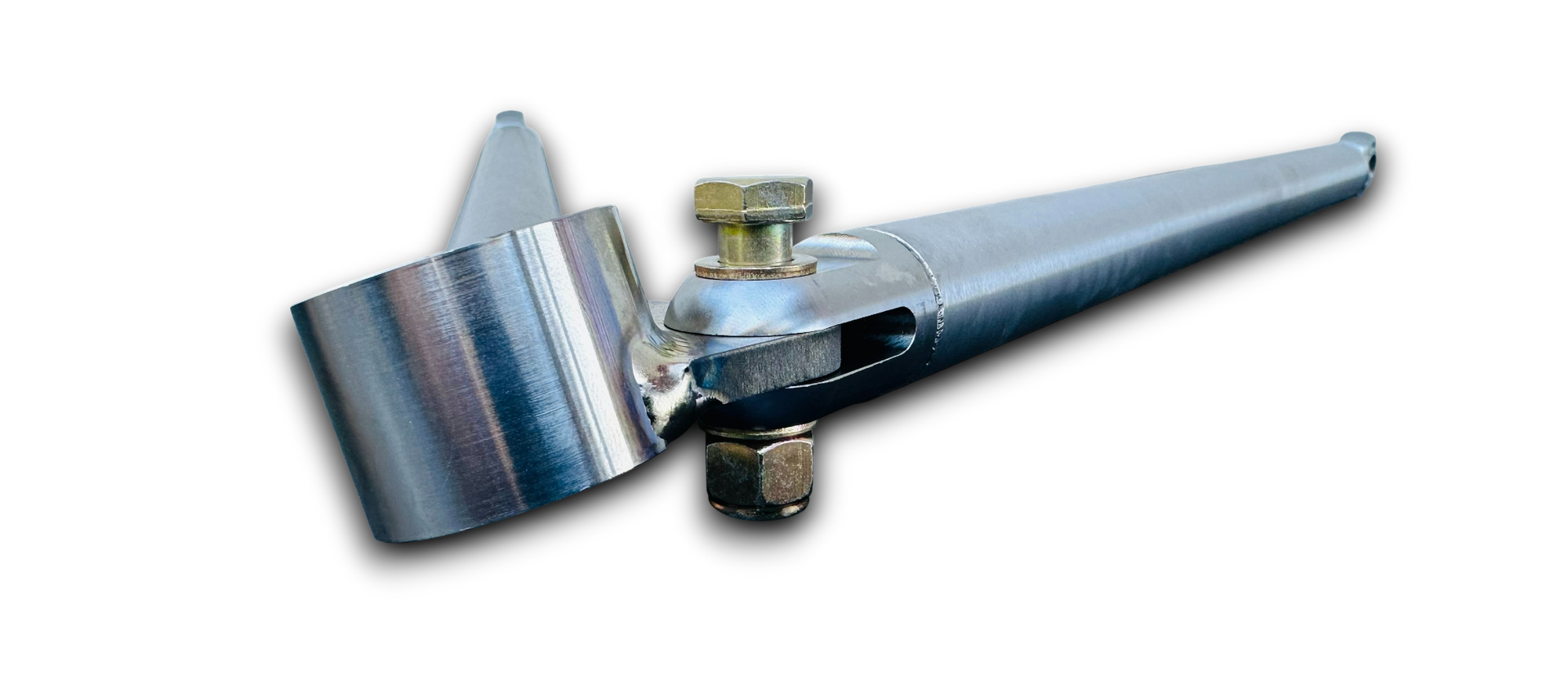

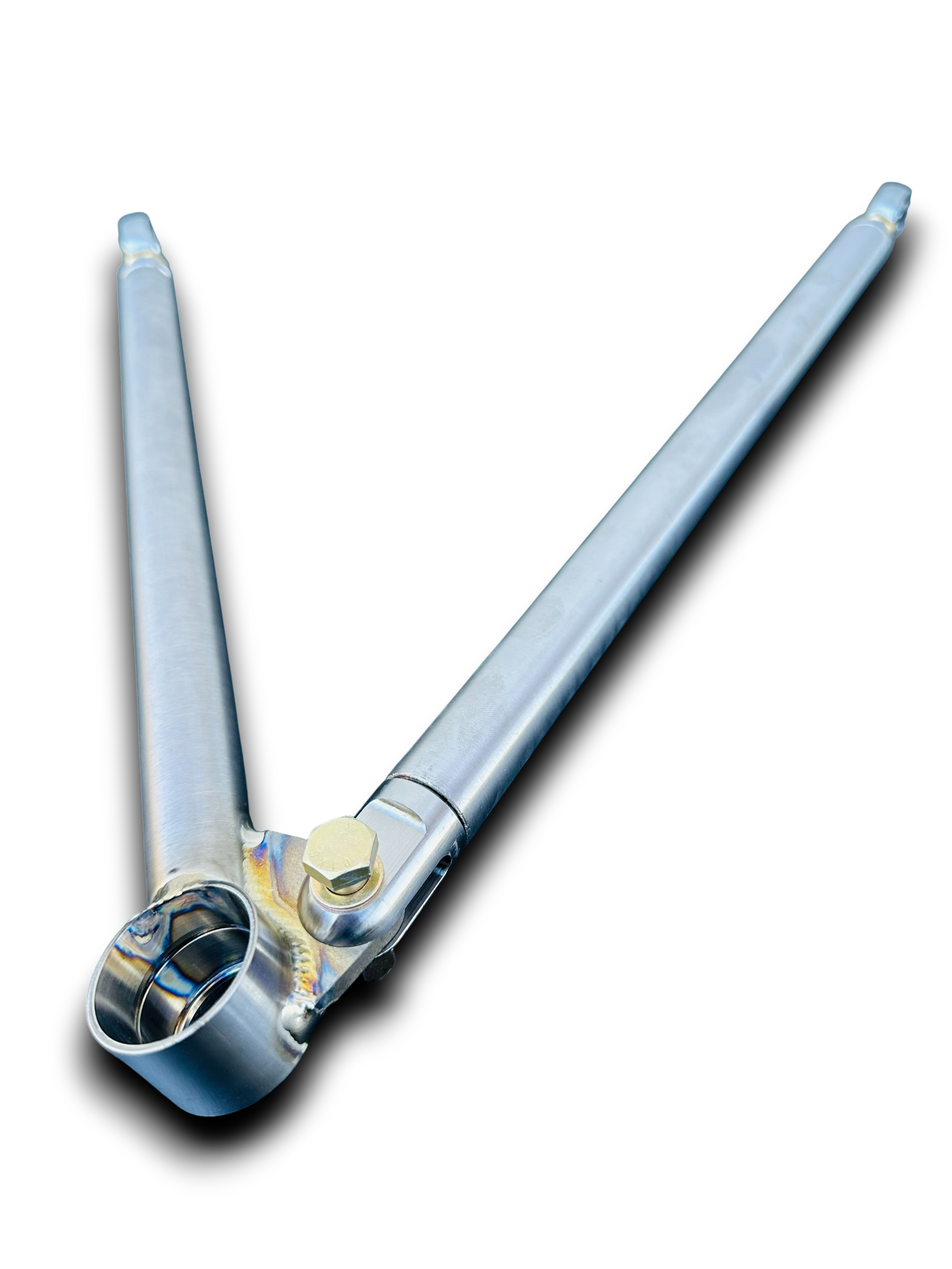

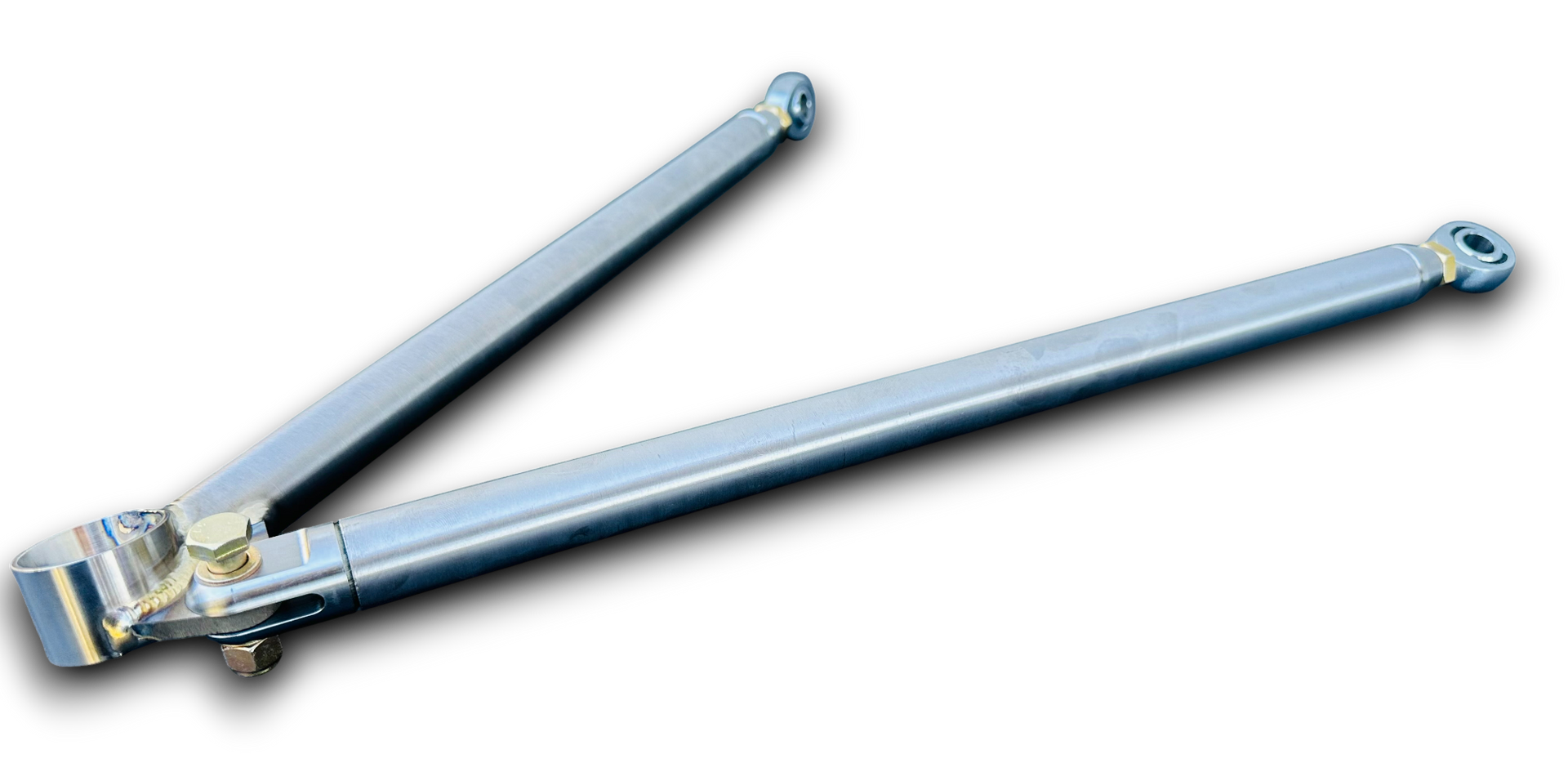

- TIG / Jig welded (Clevis tabs are welded on as depicted in the pics)
- Kit weighs 4.4lbs (a 2.8lb savings over our 4130 version)

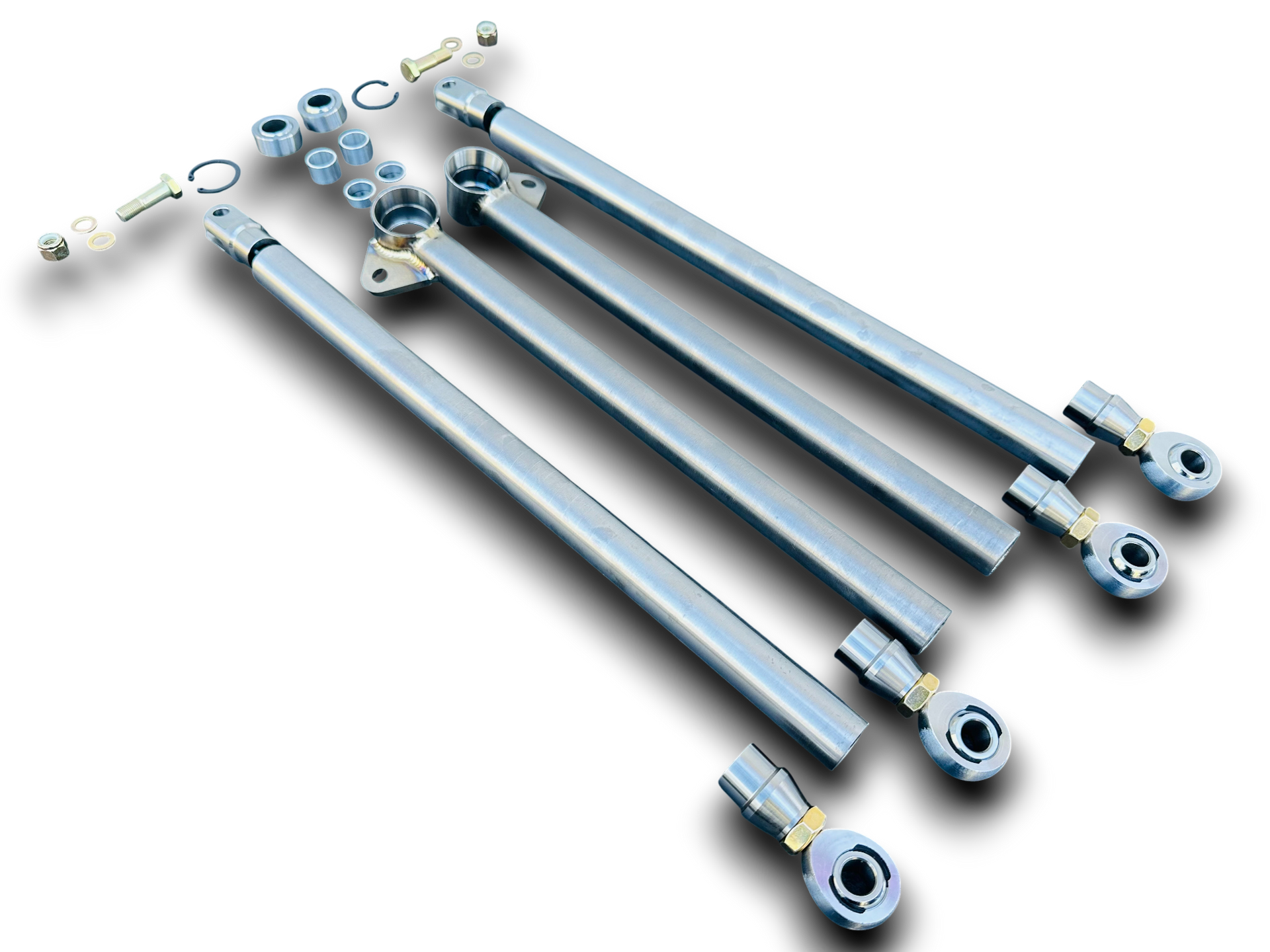

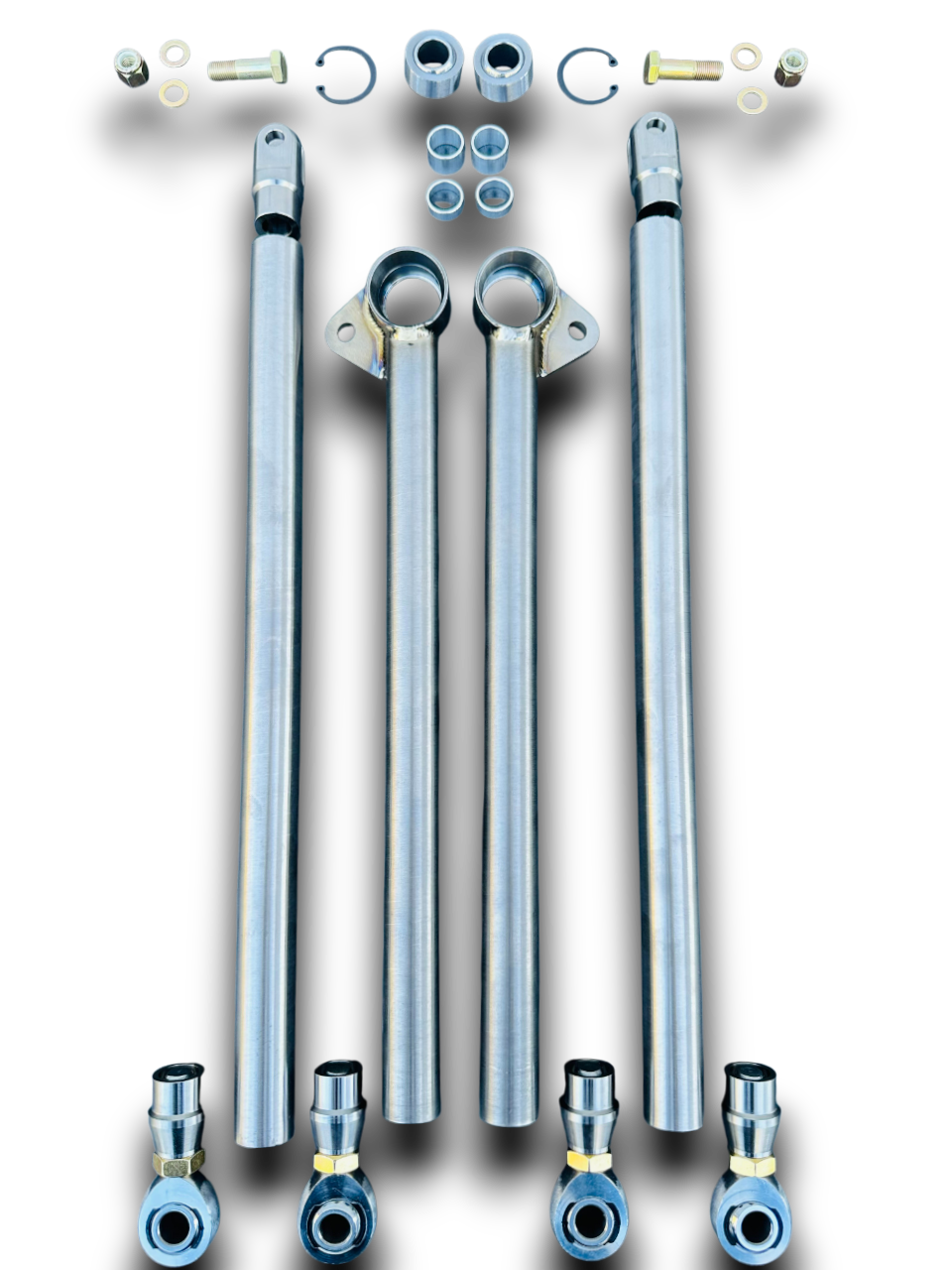

Kit includes:
- 2ea (1xLH, 1xRH) 1" Ti GR 9 tubes 14" long
- 16" long with uniball cup and tab welded on
- 2ea 1" Ti GR 9 tubes 16" long
- 4ea RH threaded tube adpaters
- 2ea Ti slot clevis
- 4ea Ti threaded tube adapters
- 4ea QA1 XM8 series rod ends
- 2ea COM10T Uniballs
- 2ea Snap rings
- 2ea 1/4" tall high misalignment spacers
- 2ea 1/2" tall high misalignment spacers
- 2ea AN Bolts, NAS Washers, GR8 Nuts
