Furick FUPA #12 Glass kit (2 cups)
Description

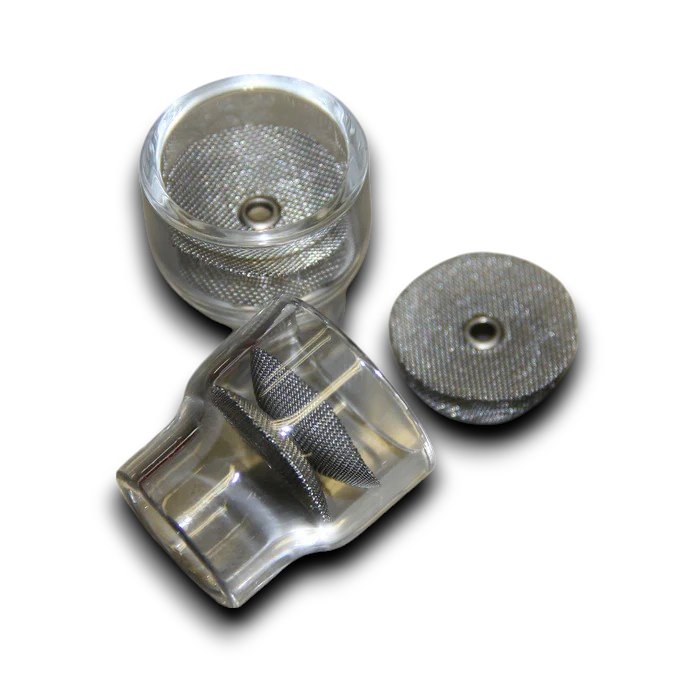

Comes with 2 cups, 3 o-rings and 1 spare diffuser.
Carries an Issued US Patent on the Diffuser design has an inside diameter of .750 inches/ 19mm and is recommended for DC polarity applications only, It uses anywhere from 20-30 + CFH of Argon flow. It is recommended for 3/32 / 2.4mm tungsten size and carries a 180 amp rating on constant amperage. It can go higher if using pulse settings. It is hand made in the USA of Borosilicate laboratory grade glass. Due to the nature of the Glass “walking the Cup “ is not suggested.
Fupa 12 Mounting
If you have a #17, #18 or #26 size torch you will need a #17 kit.
If you have a #9 or #20 torch you will need to have a 45V44 gas lens, If you have one already you can surly use it , Keep in mind that import brands yield lower results.
Fupa 12 is recommended for Mild steel, Stainless steel, Chromoly, Titanium, inconel and other space grade alloys. It works best on thinner / smaller applications such as header tubes and chassis tubing.
It is recommended you keep the diffuser the shape it comes and you remove and reinstall if it gets out of shape. Also it is recommended with all the BIG Diffuser cups that the user start off on low amps to stabilize the arc as to make sure you will not arc off diffuser. If diffuser arcing occurs you will have to clean/Regrind the tungsten. You will not hurt the diffuser on low amps but if arc with high amps you can deteriorate the Diffuser. Also be careful not to drop or hit cups against hard objects being we all know the nature of glass.
