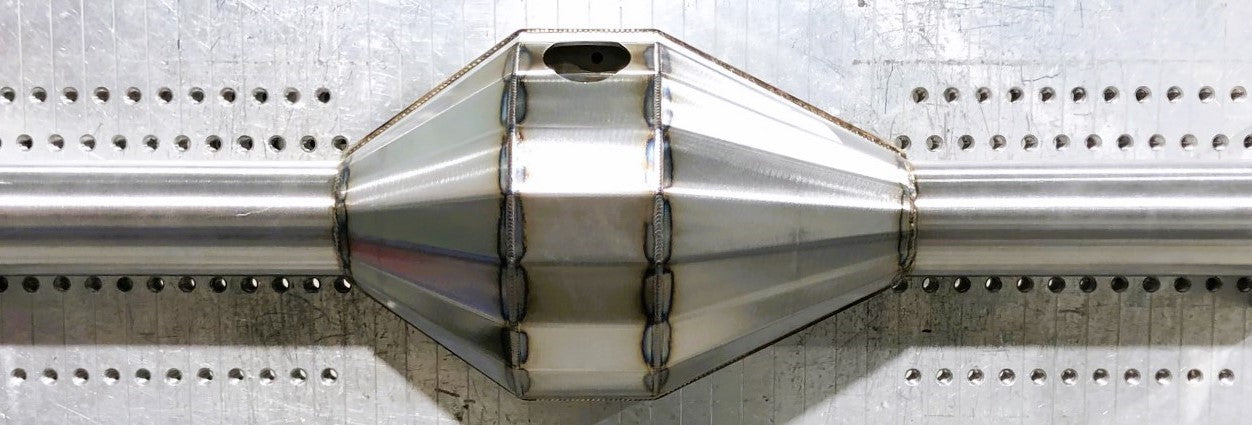

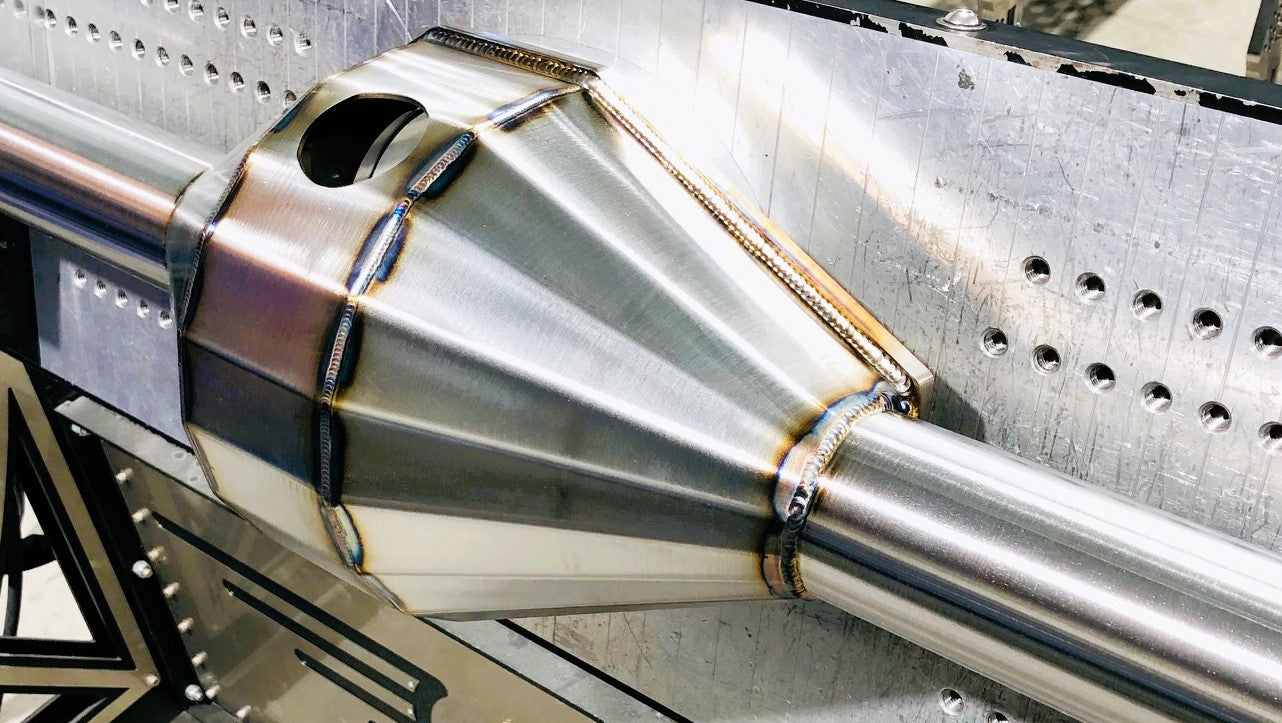

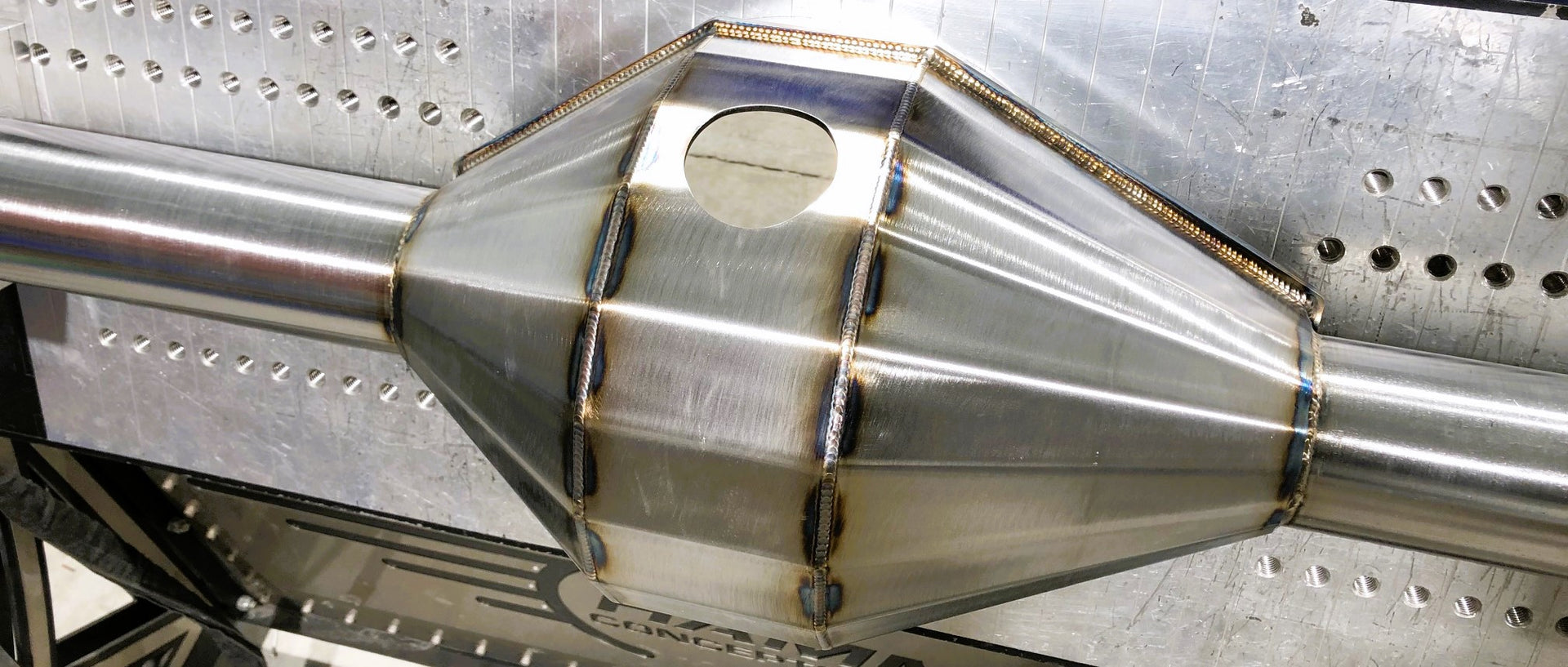

HC&D FAB 9 SS Mustang Housing Blank (Bare Housing)

Now available are our housing kits in a blank (bare housing) form.  We do the hard work of ensuring the housing is built true using our well known FAB 9 PRO jig.  This is a great option for those that desire to finish the housing out themselves without having to build the housing blank from kit form. Backbrace, filler cap/bung, drain/bung, and housing vent will come loose and not installed.

We have a full compliment of brackets to finish these housings out.  Our backbrace and upper control arm mount use a tab and slot method to locate the brackets precisely at the appropriate angle for a simple install.

***If you need a custom length housing tube end to end, call us to order***

Specs:

• 48" tube end to end
• 4130 or Mild Steel material
• 3.5" x .250 wall axle tube for 4130
• 3.5" x .188 wall axle tube for mild
• 1/8" banjo material
• 1/4" or 1/2" o-ring lightened faceplate
• Backbrace with slots for factory offset or centered pinion
• Threaded studs
• Billet filler cap/bung
• 12pt drain/bung
• Vent/bung

Options:

• Factory offset pinion mild blank housing with 1/4" faceplate
• Centered pinion mild blank housing with 1/4" faceplate
• Factory offset 4130 blank housing with 1/4" faceplate
• Centered pinion 4130 housing with 1/4" faceplate
• Factory offset pinion 4130 blank housing with 1/2" o-ring and lightened faceplate
• Centered pinion 4130 blank housing with 1/2" o-ring and lightened faceplate
