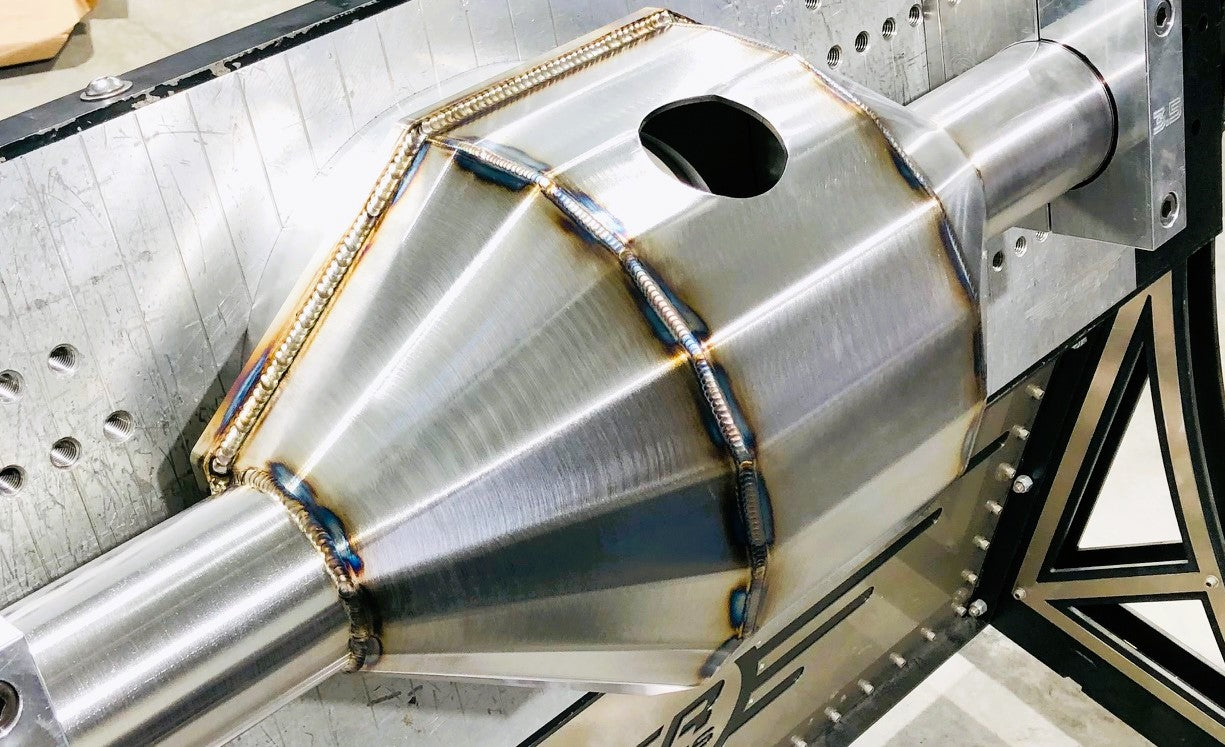

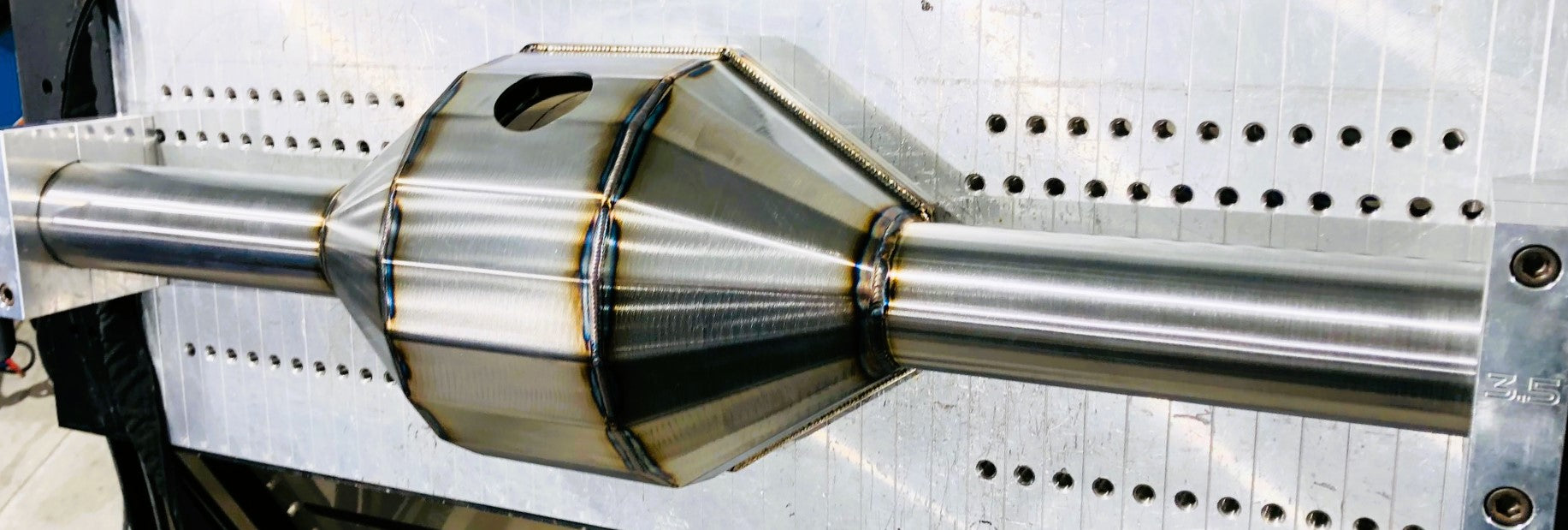

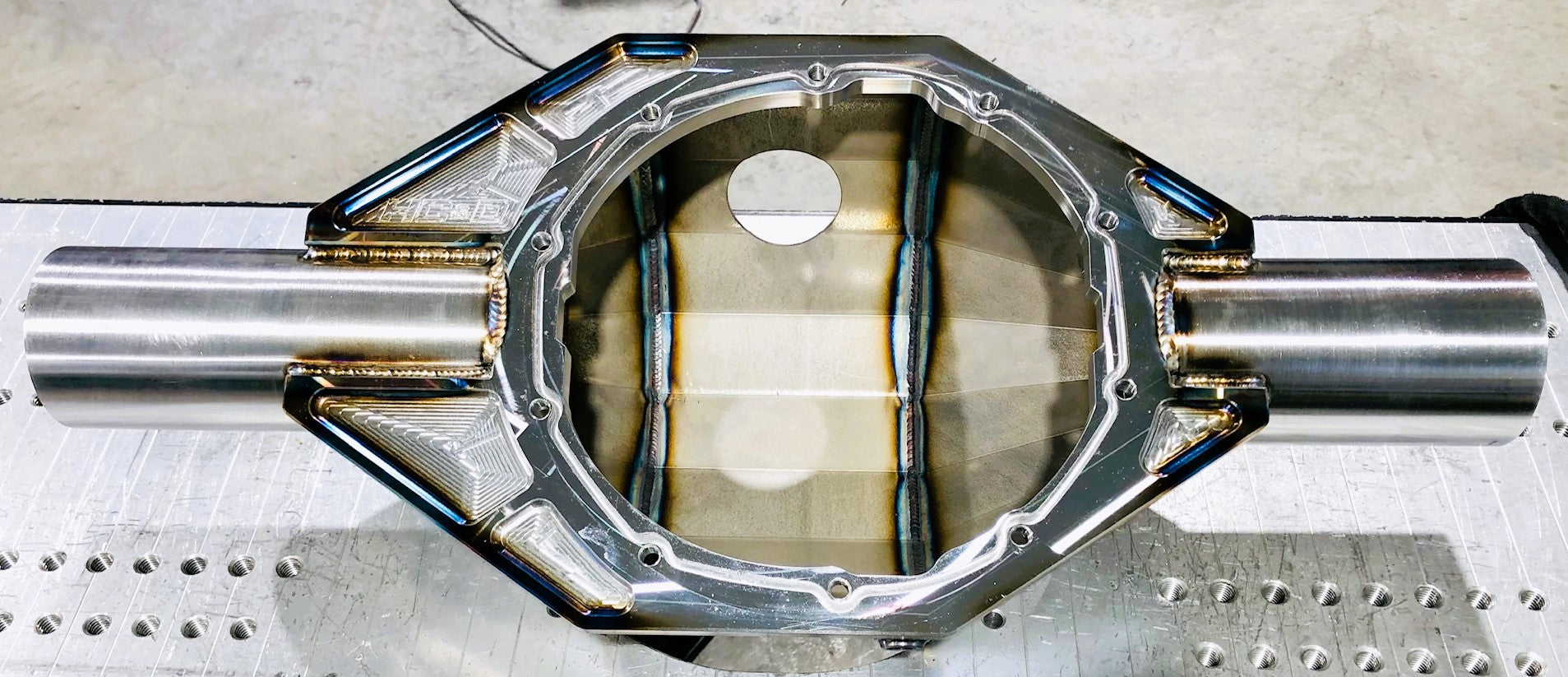

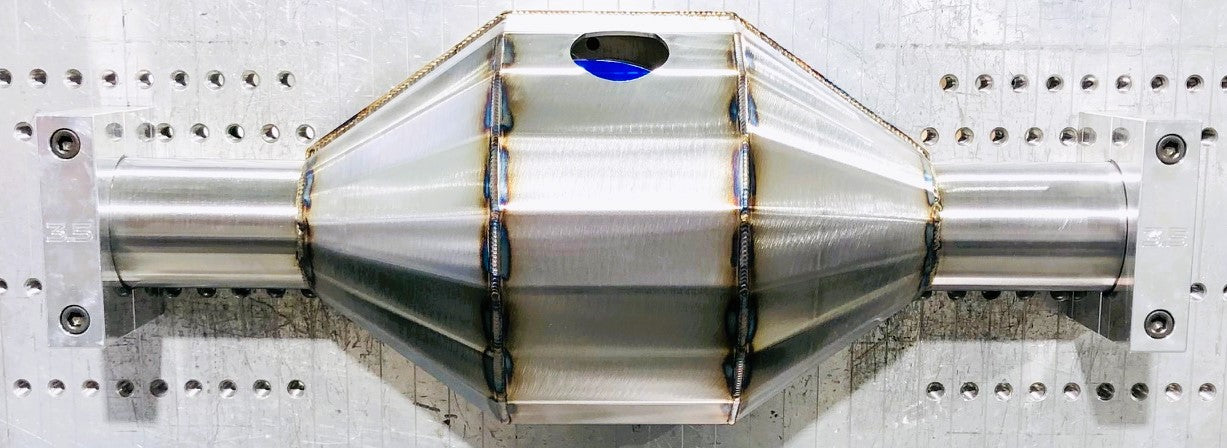

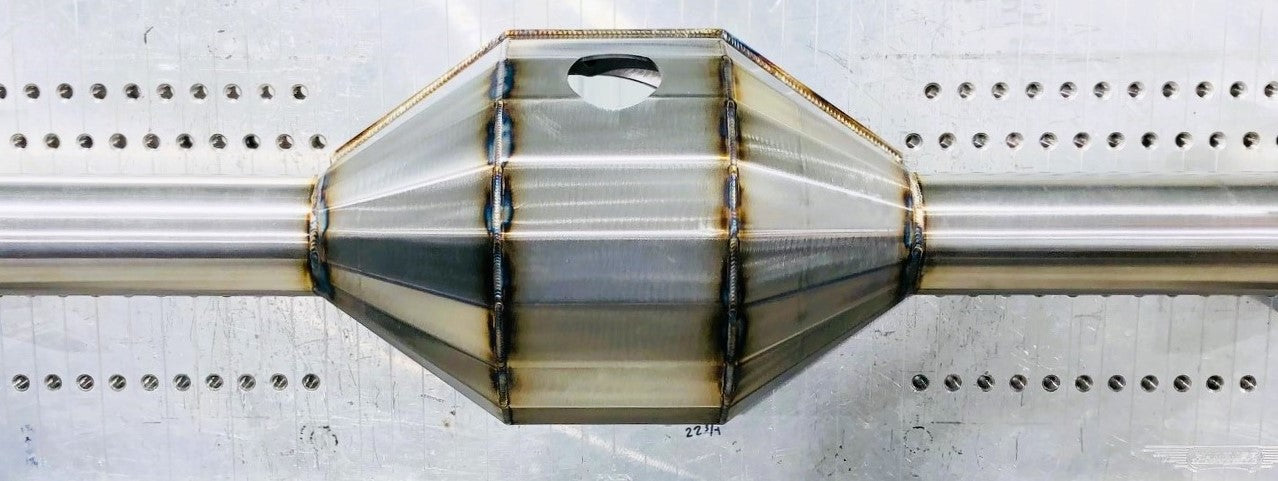

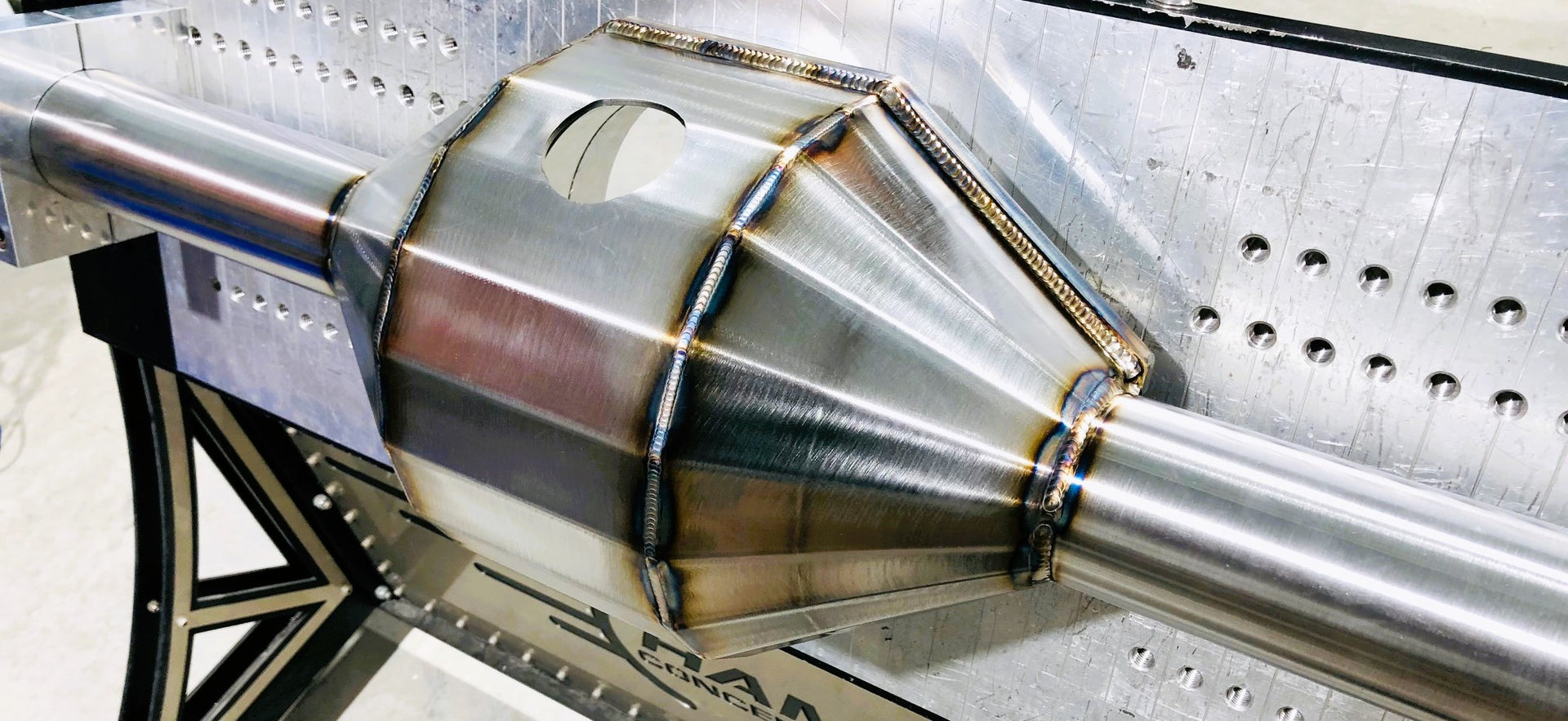

HC&D FAB 9 Symmetrical Housing Blank (Bare Housing)
Description
Now available are our housing kits in a blank (bare housing) form. We do the hard work of ensuring the housing is built true using our well known FAB 9 PRO jig. This is a great option for those that desire to finish the housing out themselves without having to build the housing blank from kit form. Backbrace, filler cap/bung, drain/bung, and housing vent will come loose and not installed.
***If you need a custom length housing tube end to end, call us to order***
Specs:
- Minimum 4 link width no mods 18.5". Remove 1/4" off ends of faceplate no mods 18"
- 48" tube end to end
- 4130 or Mild Steel material
- 3.5" x .250 wall axle tube for 4130
- 3.5" x .188 wall axle tube for mild
- 1/8" banjo material
- 1/4" or 1/2" faceplate
- Threaded studs
- Billet filler cap/bung
- 12pt drain/bung
- Vent/bung
Options:
- Mild blank housing with 1/4" faceplate
- 4130 blank housing with 1/4" faceplate
- 4130 blank housing with 1/2" o-ring and lightened faceplate
