Description

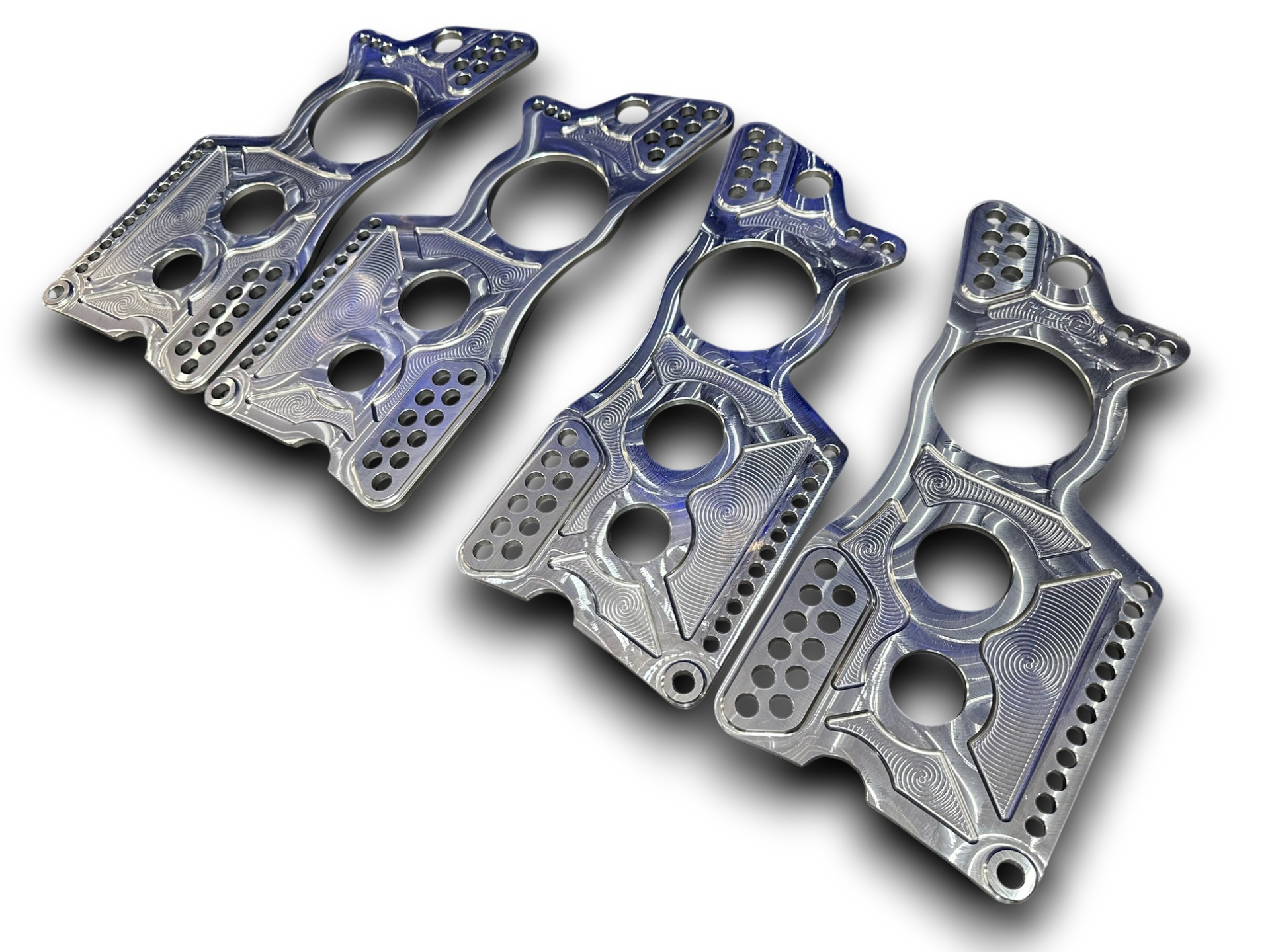

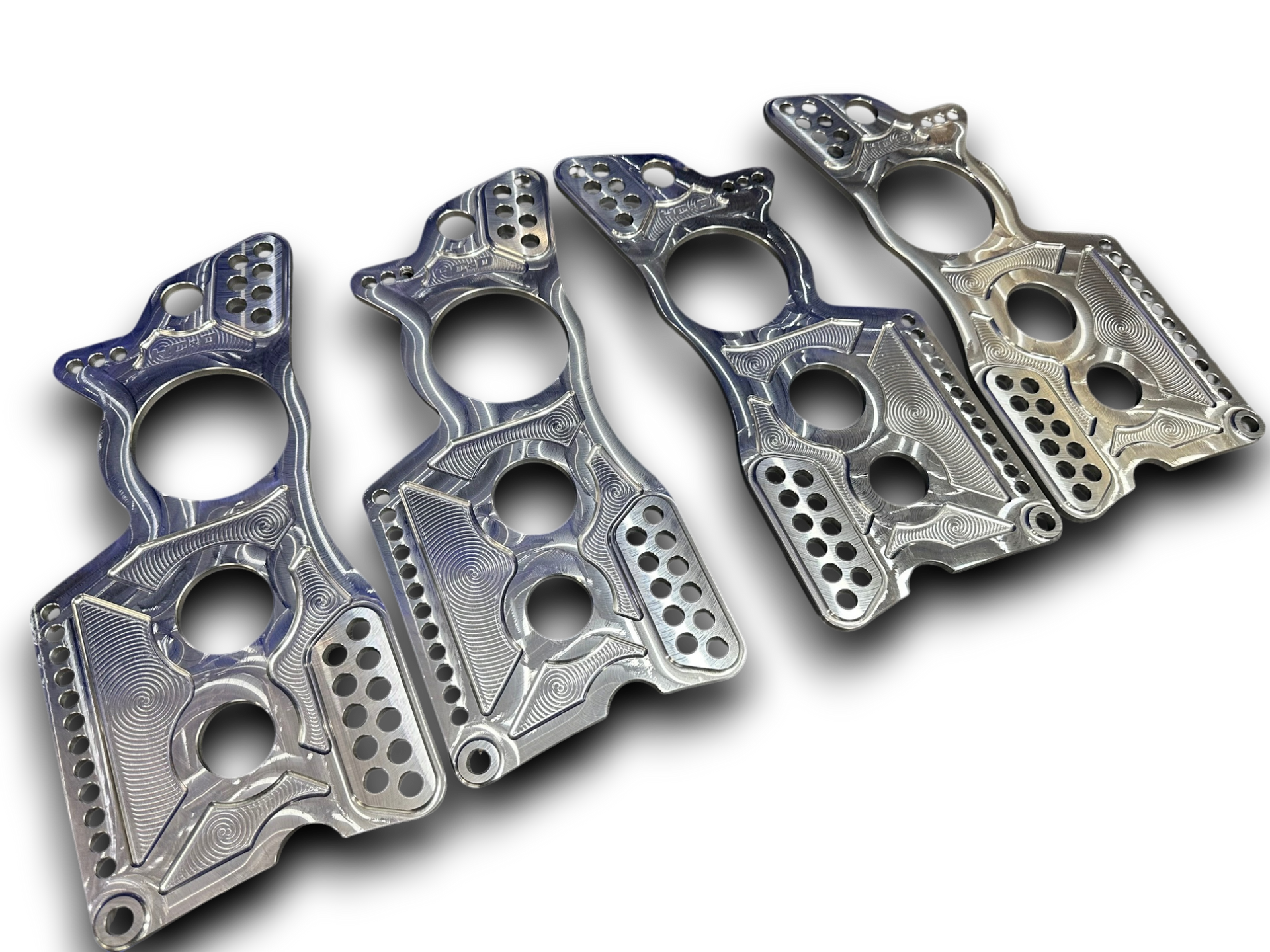

Engineered from premium 4130 billet stock, these rearend housing brackets deliver precision-machined construction built for high performance racing demands. The traditional design geometry accommodates both large and small tire configurations, making them versatile across diverse racing applications. Tight tolerances and a robust design ensure reliability under extreme conditions and sustained stress.
Specs:
- Billet machined 4130 material
- .285" main bracket
- .090" main bracket machined doublers
-
Compatible with 3 1/2" axle tube
- Double row 1/2" holes on 5/8" spacing
- 5 1/2" of vertical shock adjustment in 1/2" increments
- 1 1/2" lower cross tube hole
- 1" upper cross tube hole
- 3 hole ARB mounting provisions
- Lower wheelie bar hole
- Lightening pockets for mass reduction with ribbed gussets for maximum strength
- Pro-Jack notches
***Set of 4 (2 LH / 2 RH)***
