Description

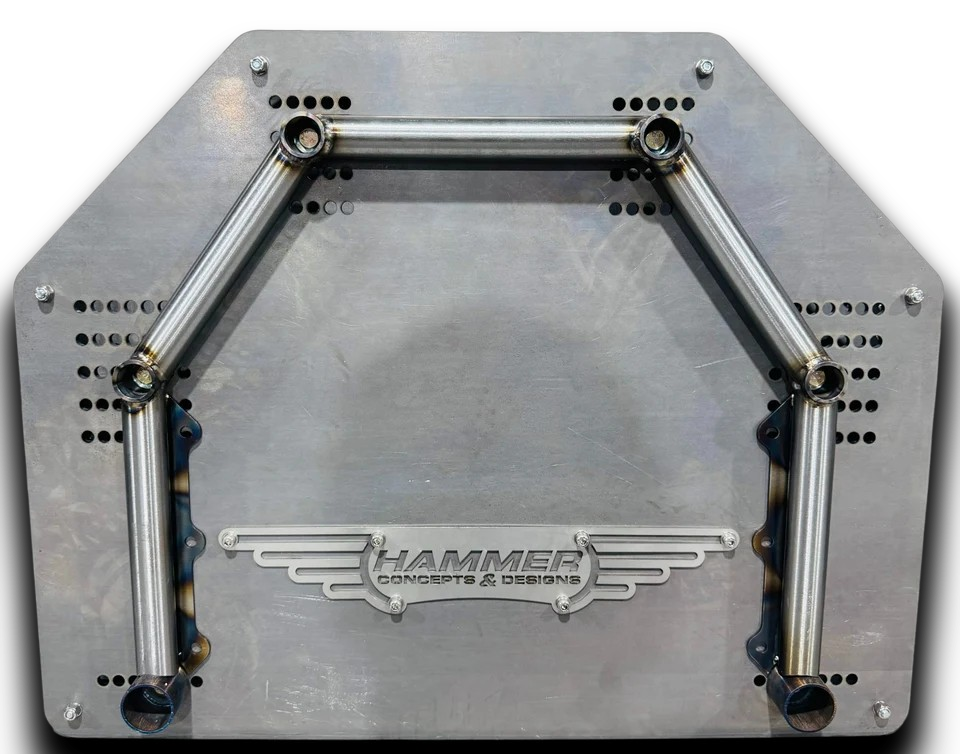

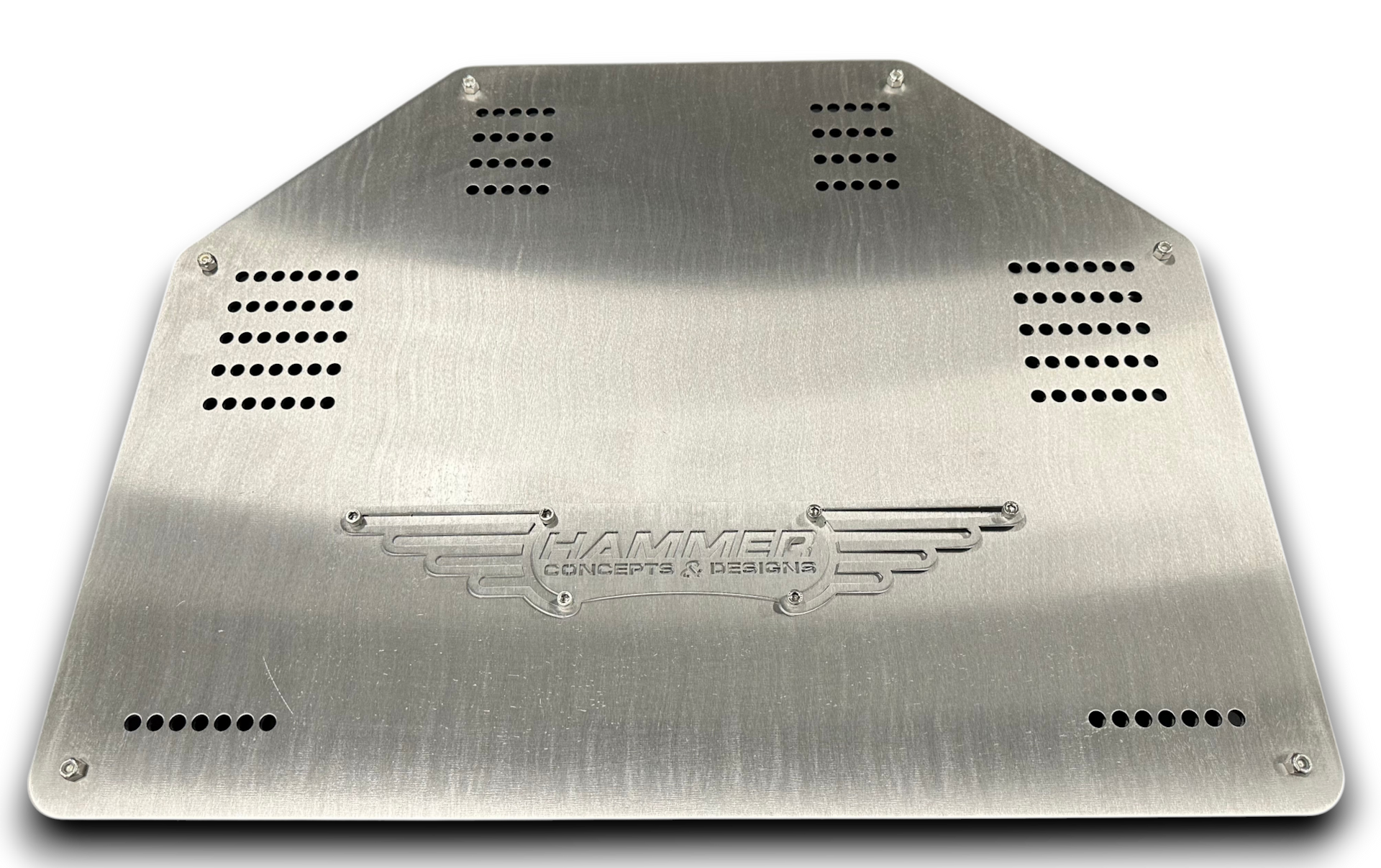

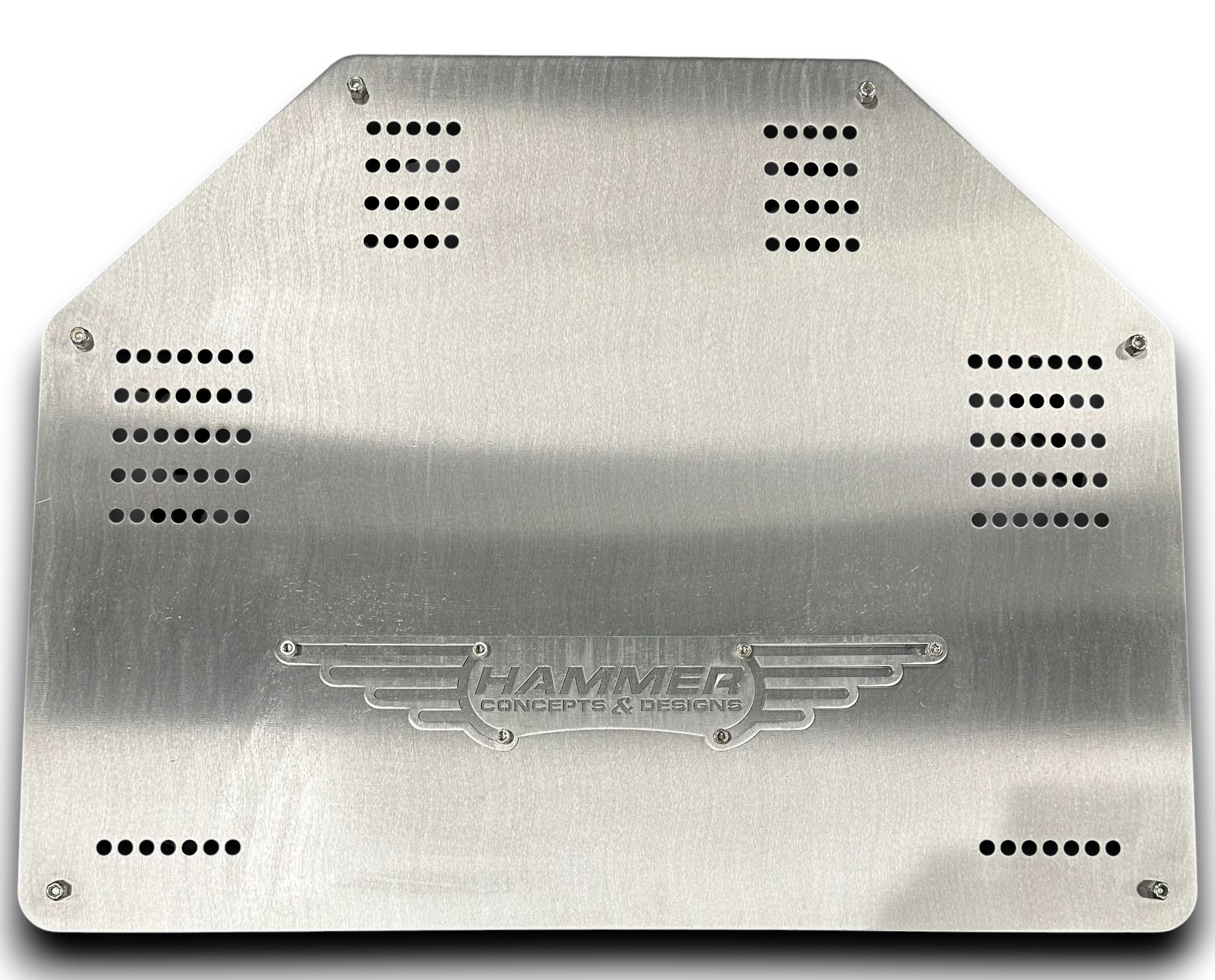

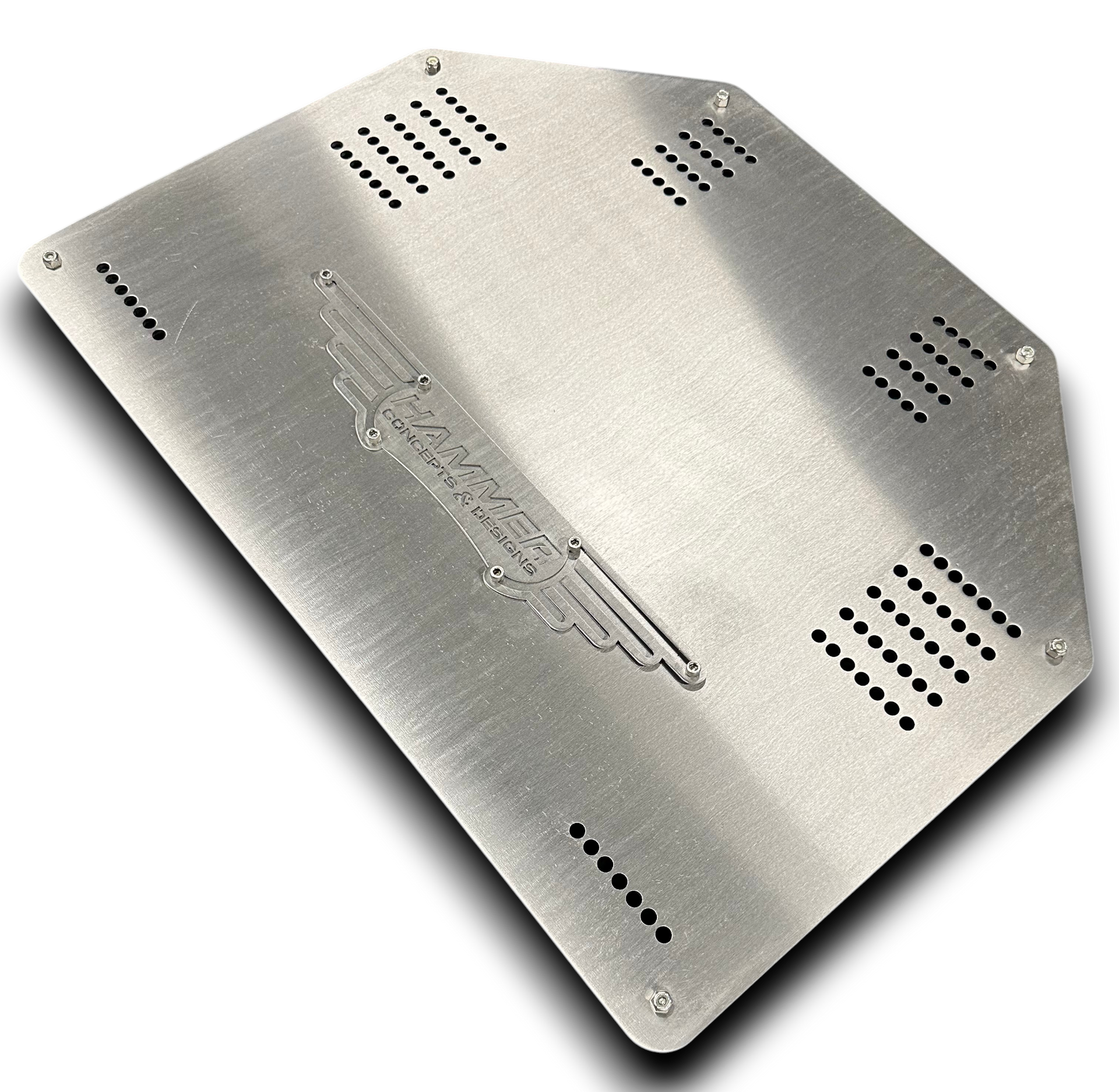

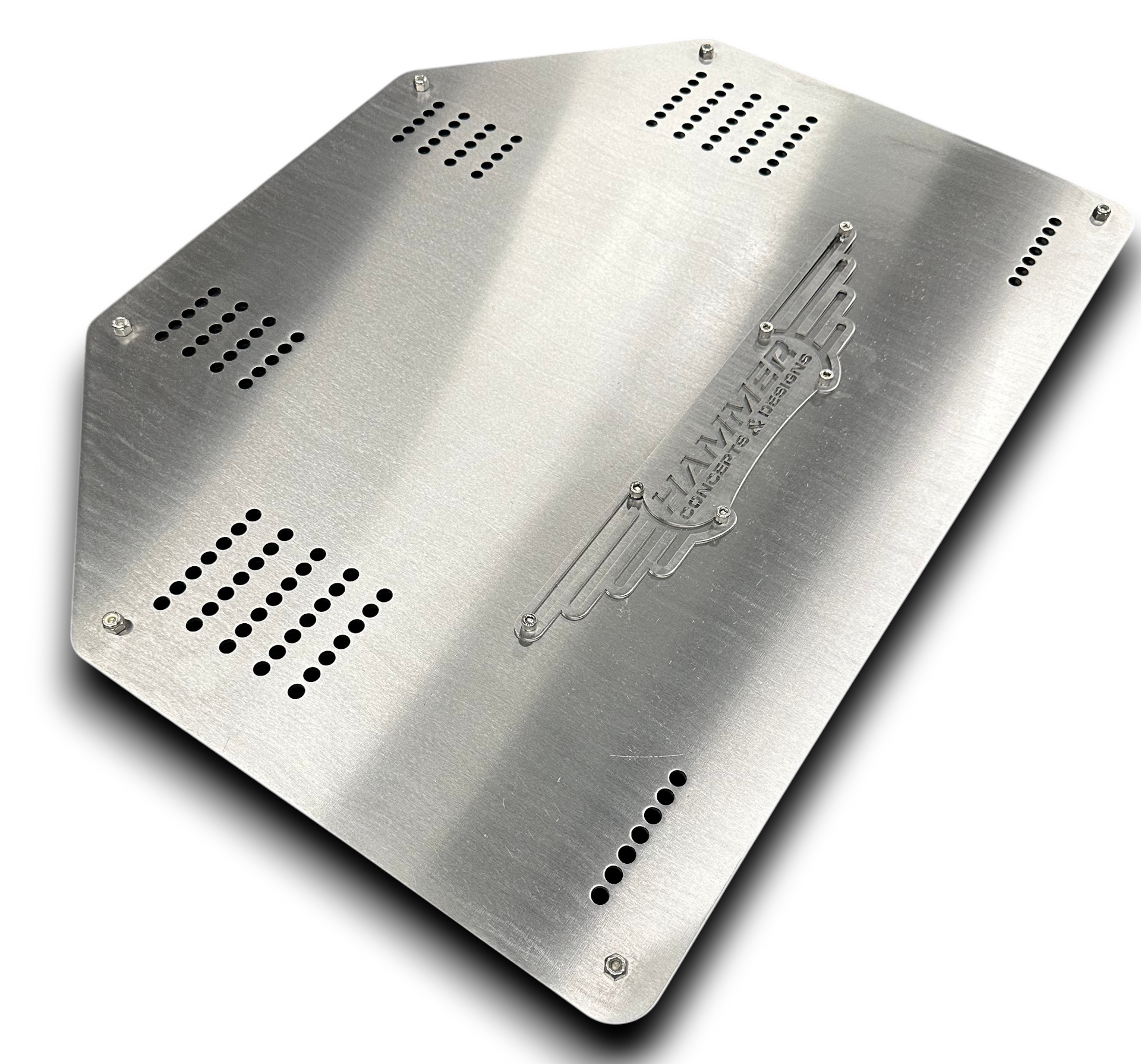

Professional mid plate hoop jig engineered for fabricators who demand precision. Eliminates deflection and misalignment issues common with bent hoops, delivering a gap-free fit every time. The mounting face precisely aligned in a single plane for seamless chassis installation. Built from 1/4" steel with 3/8" bore holes compatible with HC&D Billet 4130 bushings. Configurable across multiple dimensional ranges to match your application requirements.
The HC&D Mid plate hoop kit can be purchased HERE
Specs:
- 1/4" Steel material
- Raw finish
- Compatible with the HC&D Billet 4130 bushings
- 3/8" bore holes
- Dimensional ranges:
- Width 18-24" range (in 1" increments)
- Vertical leg height 8-12" range (in 1" increments)
- Top Horizontal bar width 8-12" range (in 1" increments)
- Top Horizontal bar height 15-18" range (in 1" increments)
