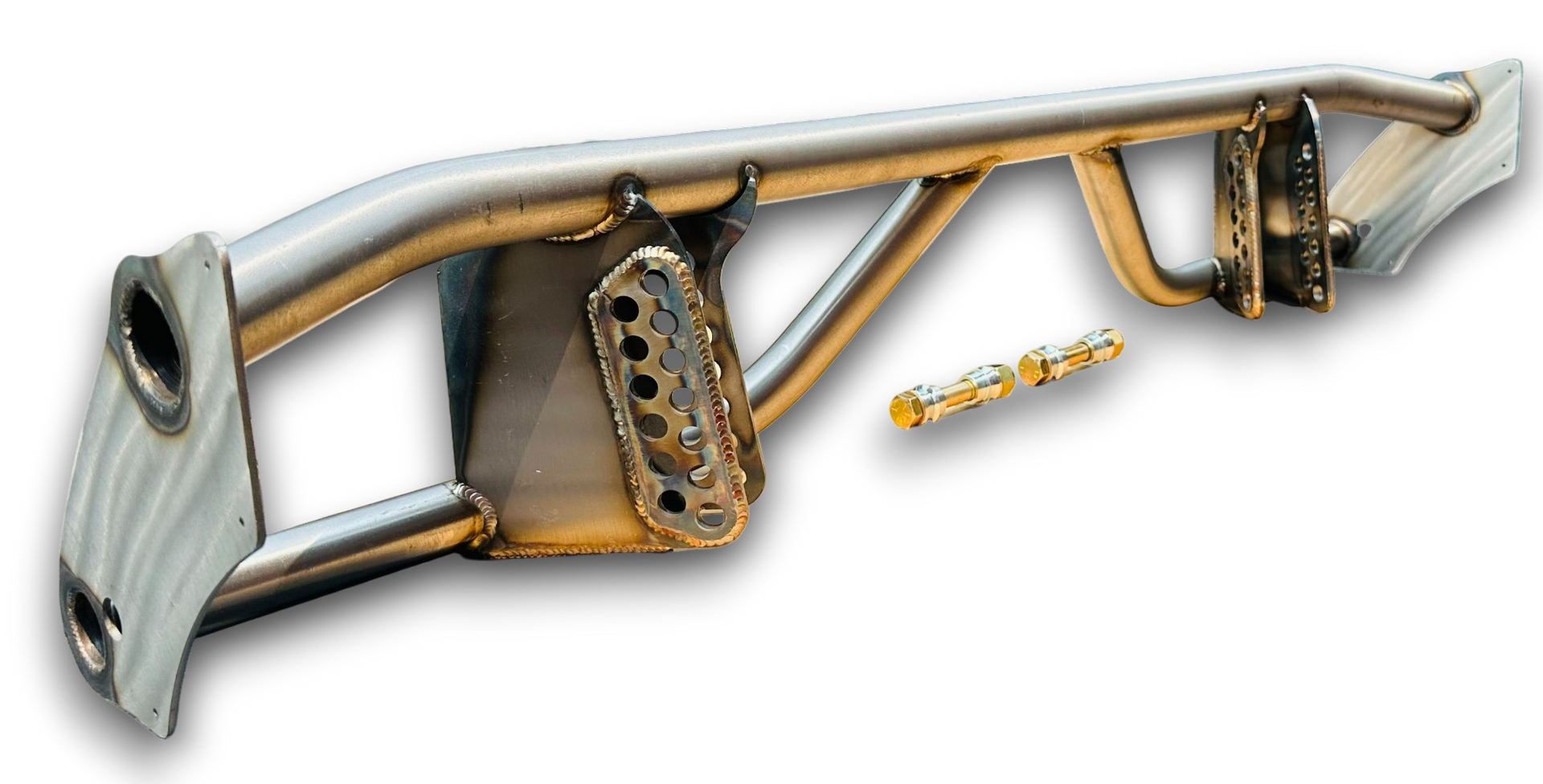

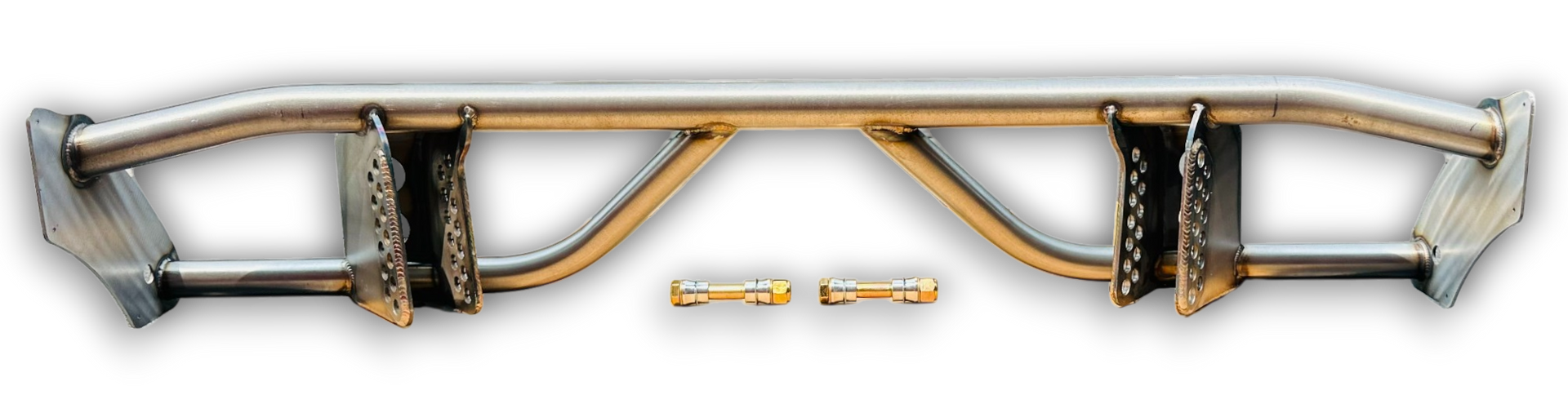

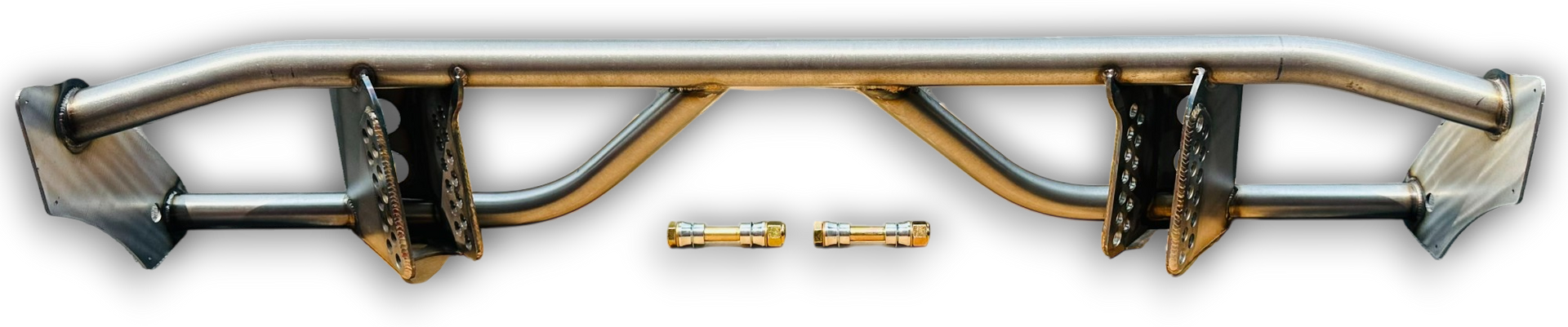

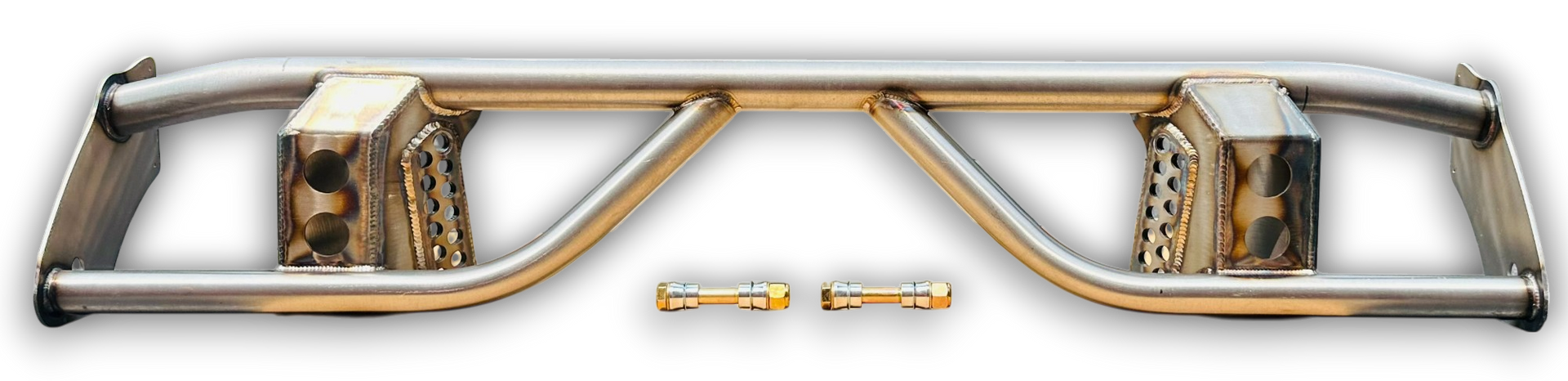

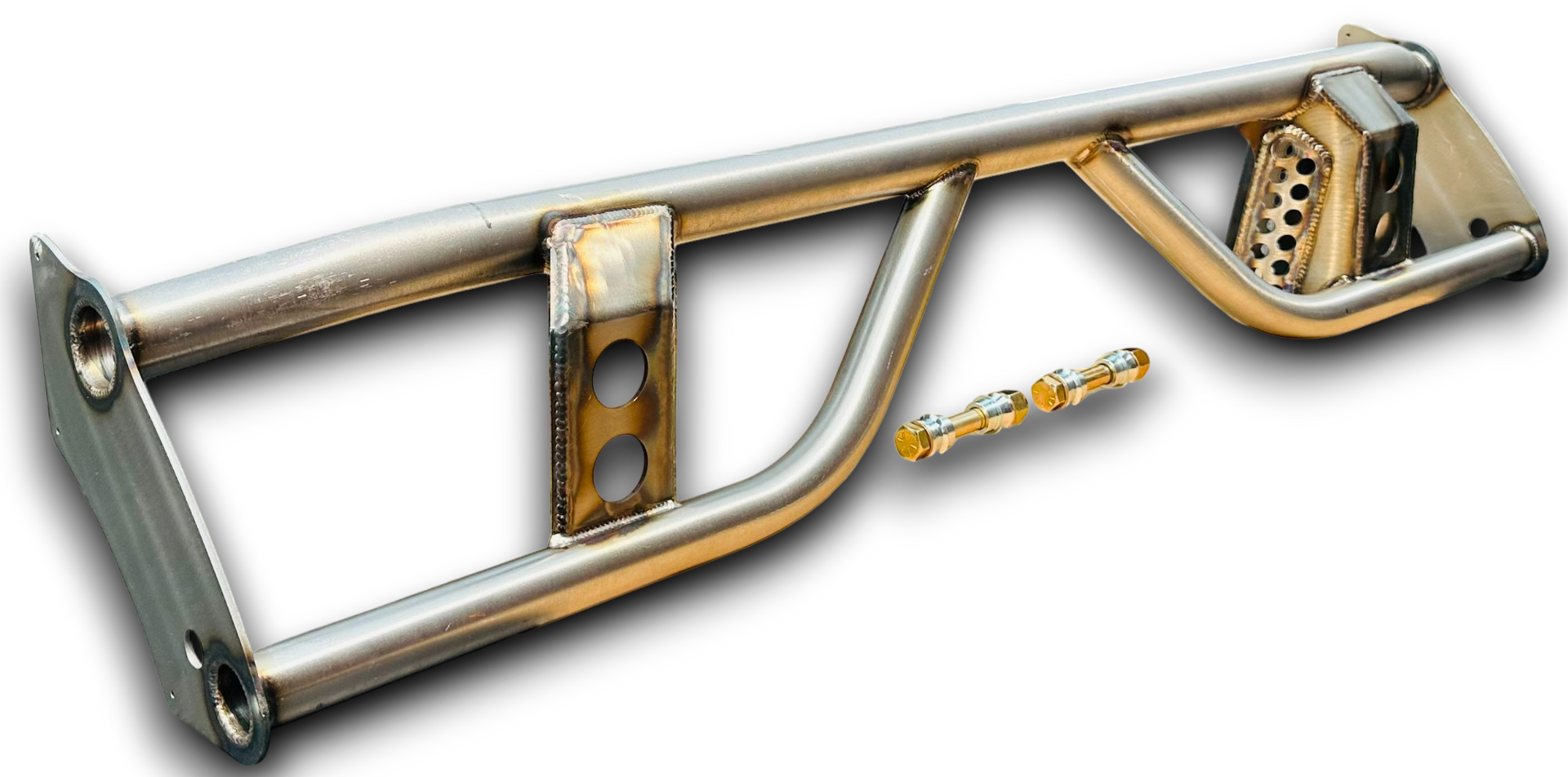

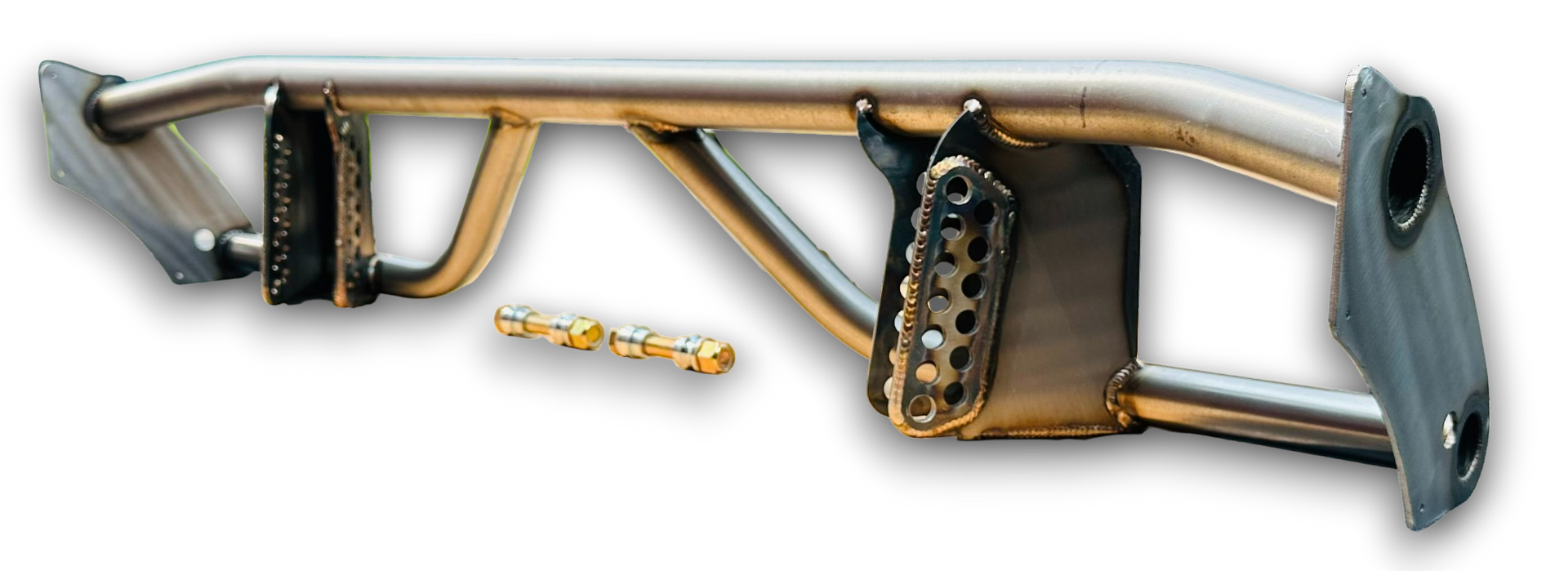

Stock Suspension G Body Upper Torque Box (Assembled)
Description
This assembled Upper Torque Box provides precision adjustability through its multi-position mounting system in G body (78-88) applications. Fabricated from high-strength 4130 tubing, this replacement component incorporates double row adjustment capabilities and reinforcement doublers for exceptional structural rigidity. Designed for heim joint control arm applications, this package delivers complete installation readiness with all required hardware and precision-machined spacers included.
Upper torque box bracket kit specs:
- 3/16" main brackets
- 1/8" main bracket doublers
- Uses a 1 1/2" main support tube and 1 1/4" lower support tubes
- 1/2" Bolt holes
- Designed for a 1.865" spacing between the brackets
- Frame rail mount flanges have 3 x 1/8" holes to cleco in place on the frame rail for ease of mockup
Includes:
- Welded upper torque box
- GR8 bolts and misalignment spacers
