Stock Suspension Mustang Upper Extended Torque Box DIY Builder Kit
Description
After numerous customer requests, we've developed our extended torque box bracket kit for DIY builders seeking cost savings or custom applications. This versatile kit is compatible with virtually any vehicle where you want to implement a stock Foxbody Mustang style suspension system and is common for cars with taller ride heights. The precision-engineered upper torque box angle provides perfect alignment with our stock suspension upper housing brackets, ensuring proper geometry and optimal performance.
Upper torque box bracket kit specs:
- 3/16" main bracket
- 1/8" main bracket doubler
- Uses a 1.625" main support tube and 1.250 lower support tubes
- 1/2" Bolt holes
- Designed for a 1.865" spacing between the brackets. Control arm hardware can be purchased separately here
- Frame rail mount flanges have 3 x 1/8" holes to cleco in place on the frame rail for ease of mockup. Support tube holes are ovaled to support proper angle of a stock frame rail

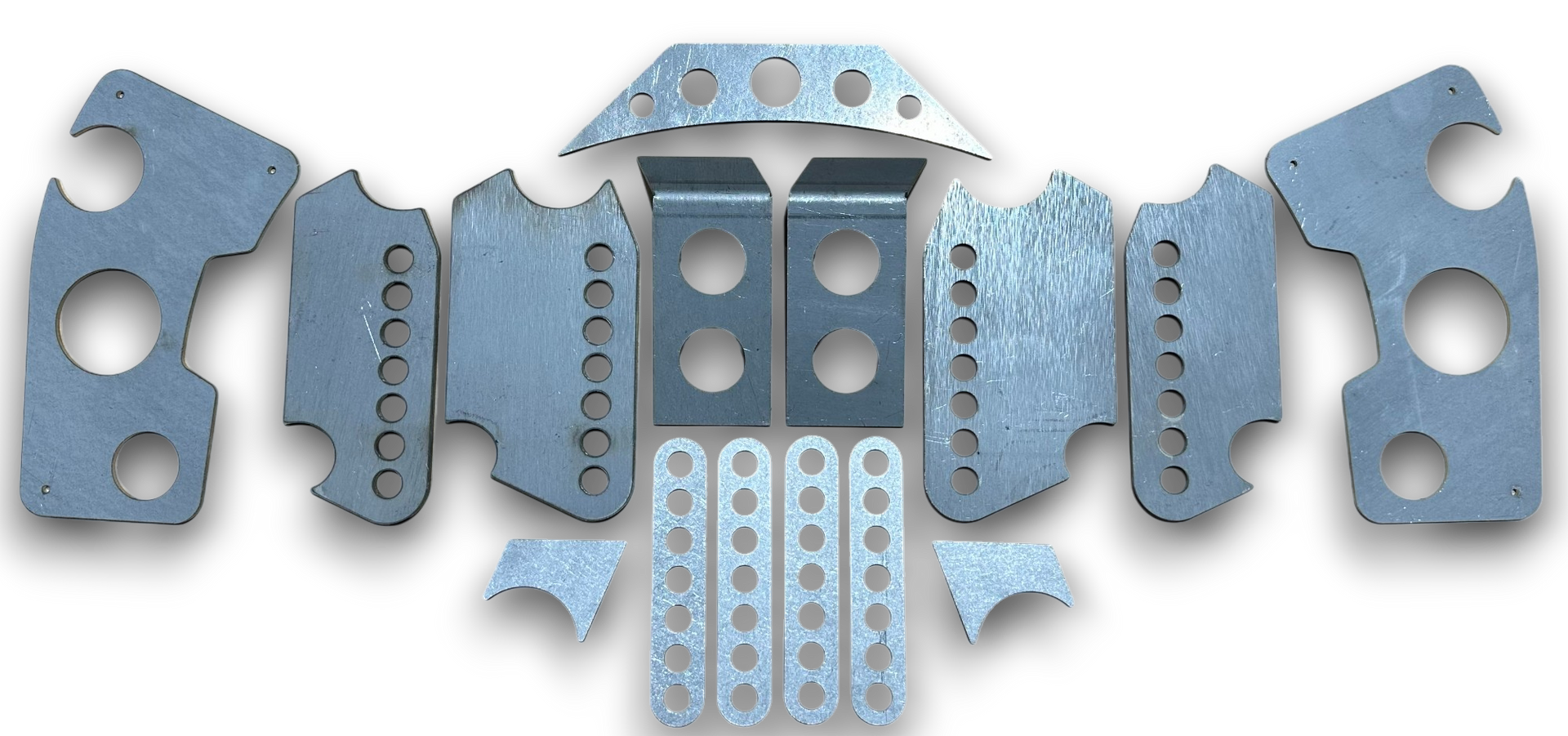

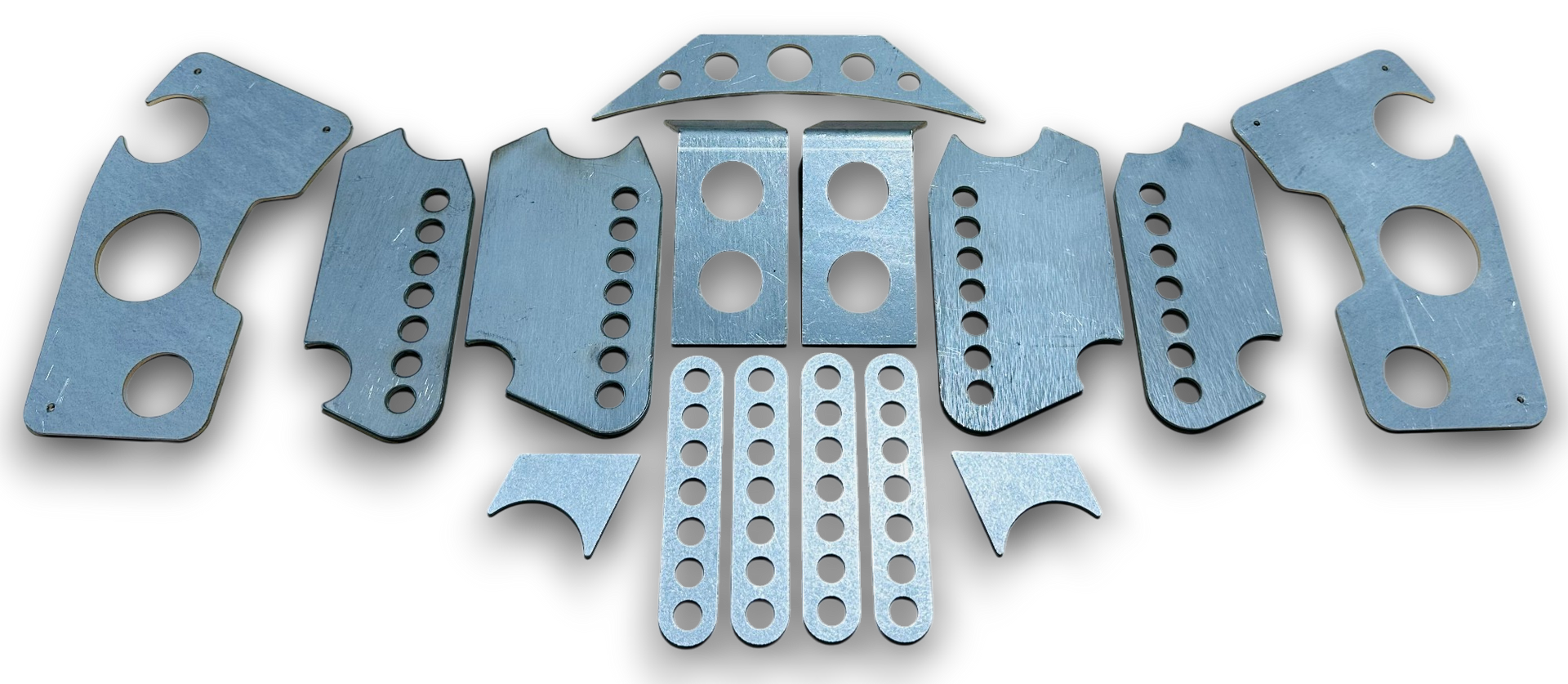

Upper torque box bracket kit includes:
- 2ea outer extended TQ box brackets
- 2ea inner extended TQ box brackets
- 4ea TQ box bracket doublers
- 2ea rear boxin
- 2ea lower boxin
- 1ea center gusset
- 2ea frame rail mount flange for stock Foxbody framerail
*** Kits require you so source the tubing and is not included***
*** Assembly Required***
