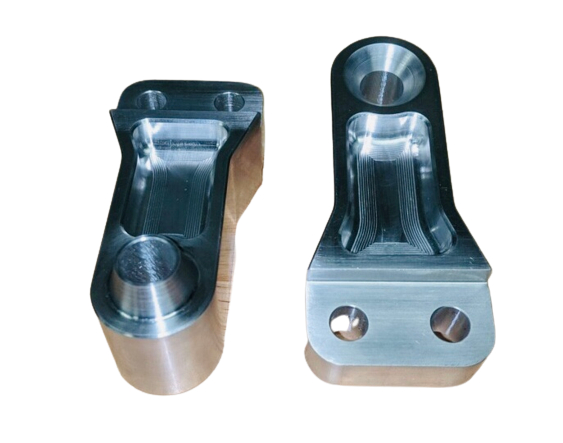

Billet Shock Mount Brackets (Single Shear Offset)

These billet shock mounts work with all of our 4 link brackets and stock suspension coil over brackets.  Made with 1.5" offset to step the shock inboard to align with frame rails when using our splined ARBs that mount to top of the housing 4 link bracket. We made the shock eyelet slot longer than our competitors to resolve known clearance issues.

Specs:

• 6061 material
• Left/Right side are interchangeable
• 1 1/2" offset (can be machined to support down to a 1 1/8" offset by machining down the fixed cone spacer)
• 3/4" width for mounting between 4 link or shock brackets
• 3/8" holes on a 1" spacing
• 1/2" shock mount bolt with flat head for clean appareance
• 3" distance between 3/8" shock bracket mount holes and 1/2" shock eye holes
• Grade 8 hardware included
• Sold in pairs
