Offset Shock Mount Brackets (Steel)
HCDSM-007-KIT-B3A
$85.00
$85.00
Shipping calculated at checkout.
Close
Description

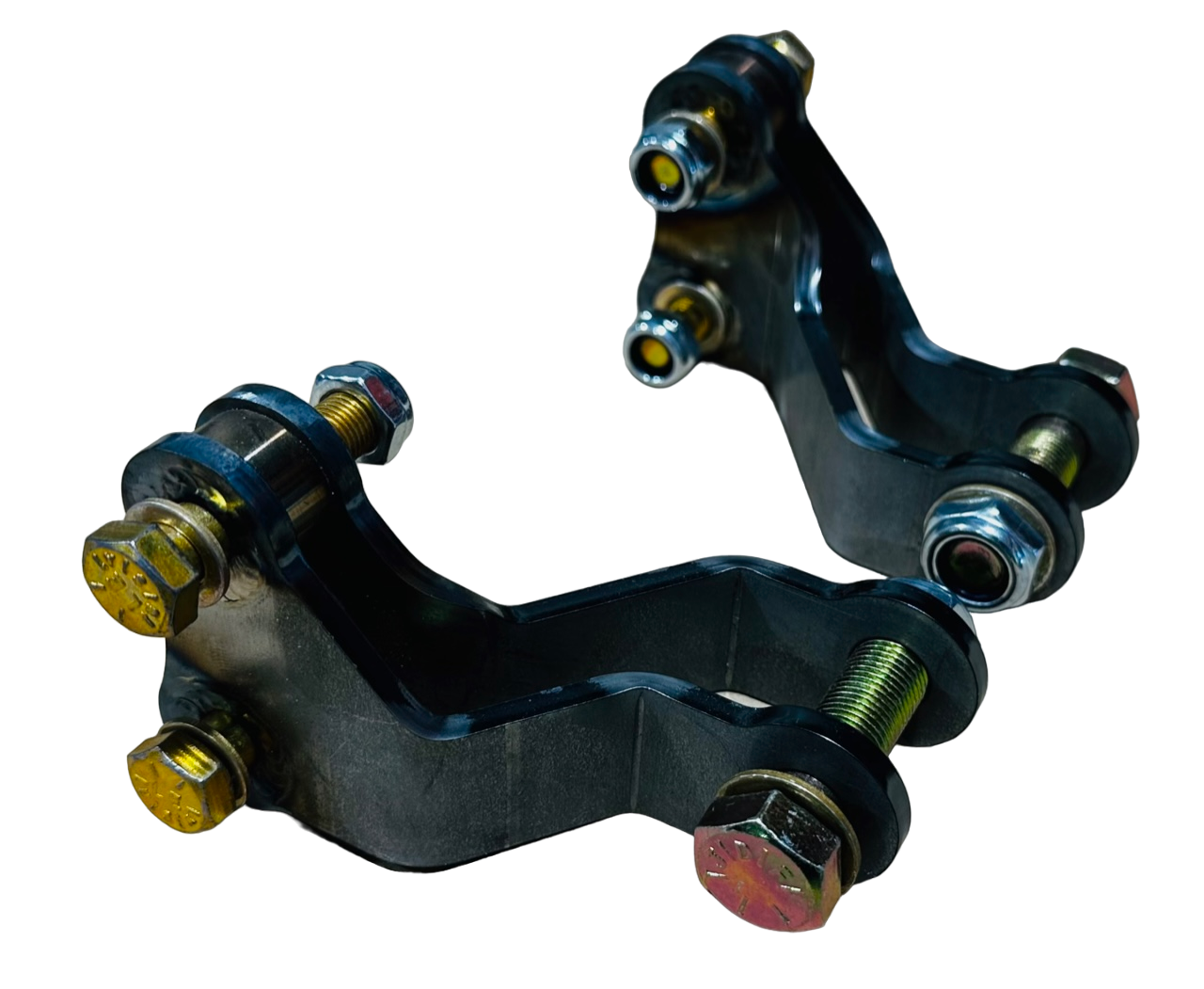

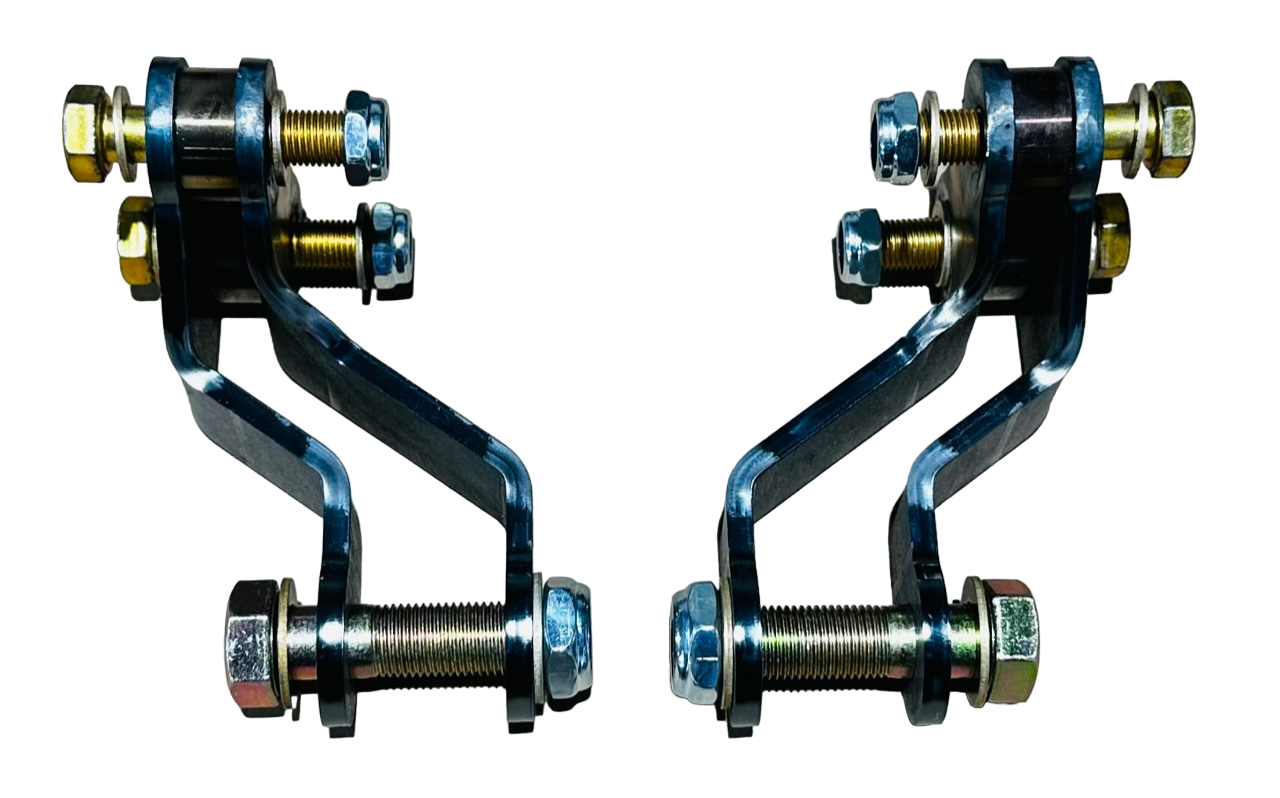

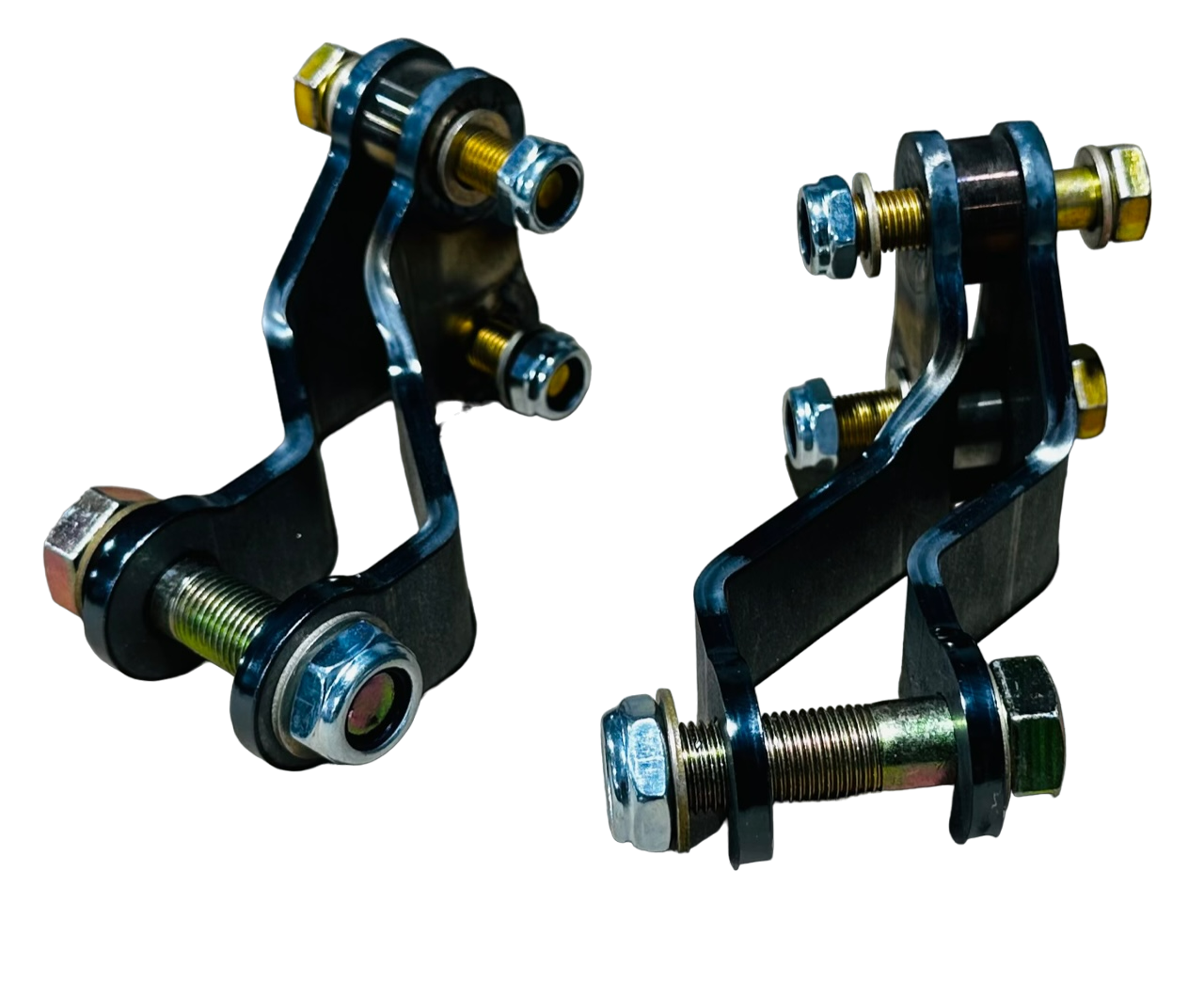

These billet shock mounts work with all of our 4 link brackets and stock suspension coil over brackets. Made with 1.5" offset to step the shock inboard to align with frame rails when using our splined ARBs that mount to top of the housing 4 link bracket.
Specs:
- 3/16" steel material
- 3/4" width for mounting between 4 link or shock brackets
- 3/8" holes on a 1.5" spacing (common with 3/4" spacing on housing shock or 4 link brackets)
- 1/2" shock mount holes with 1" shock eye spacing
- 3" distance between 3/8" shock bracket mount holes and 1/2" shock eye holes
- Grade 8 hardware included
- Raw finish
- Sold in pairs
