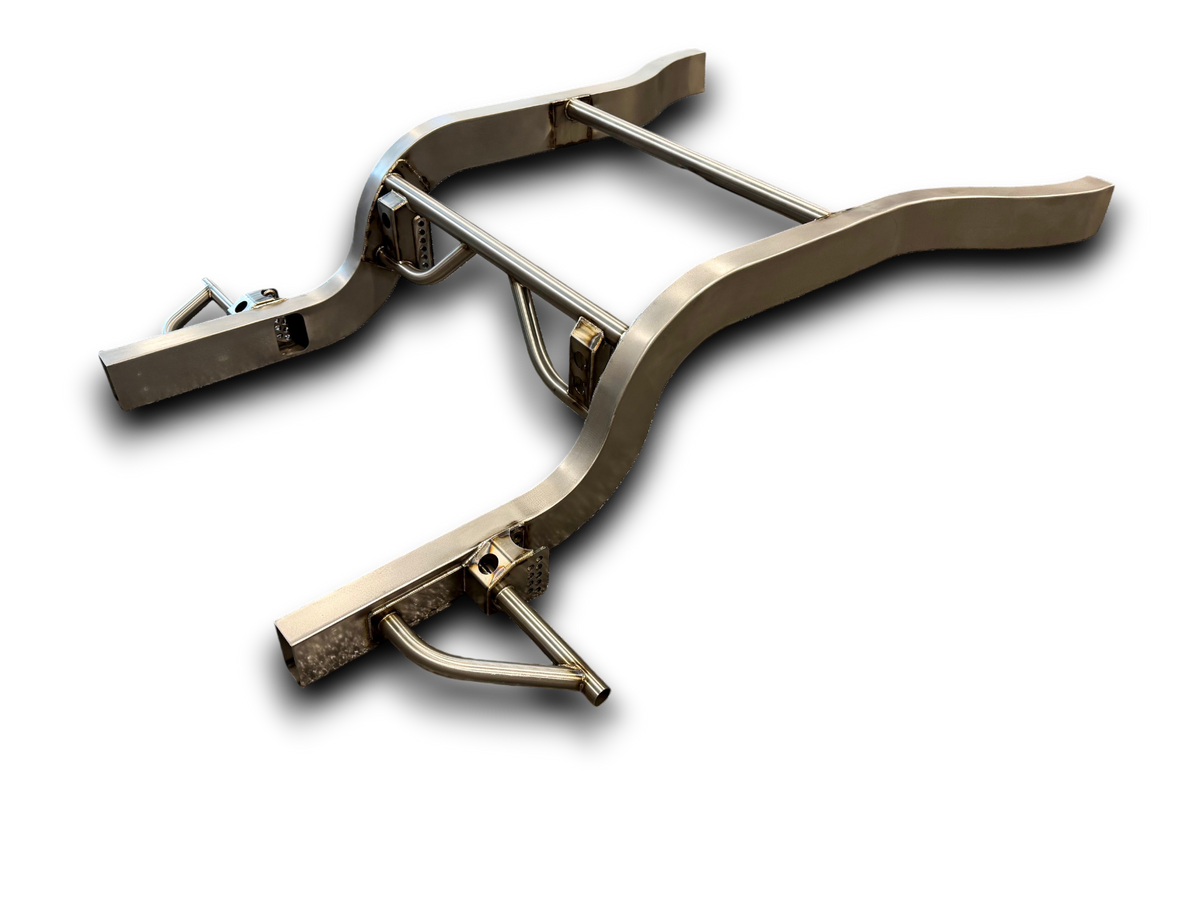

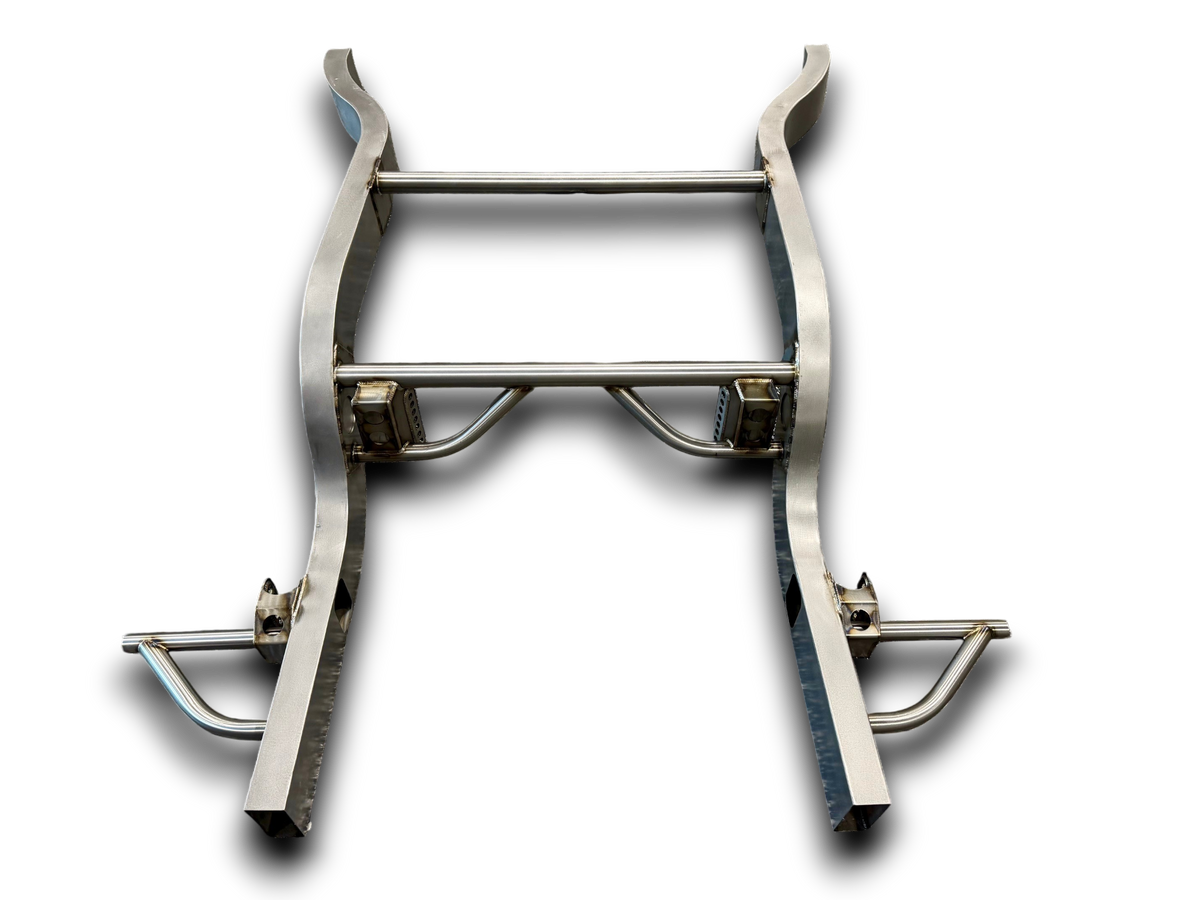

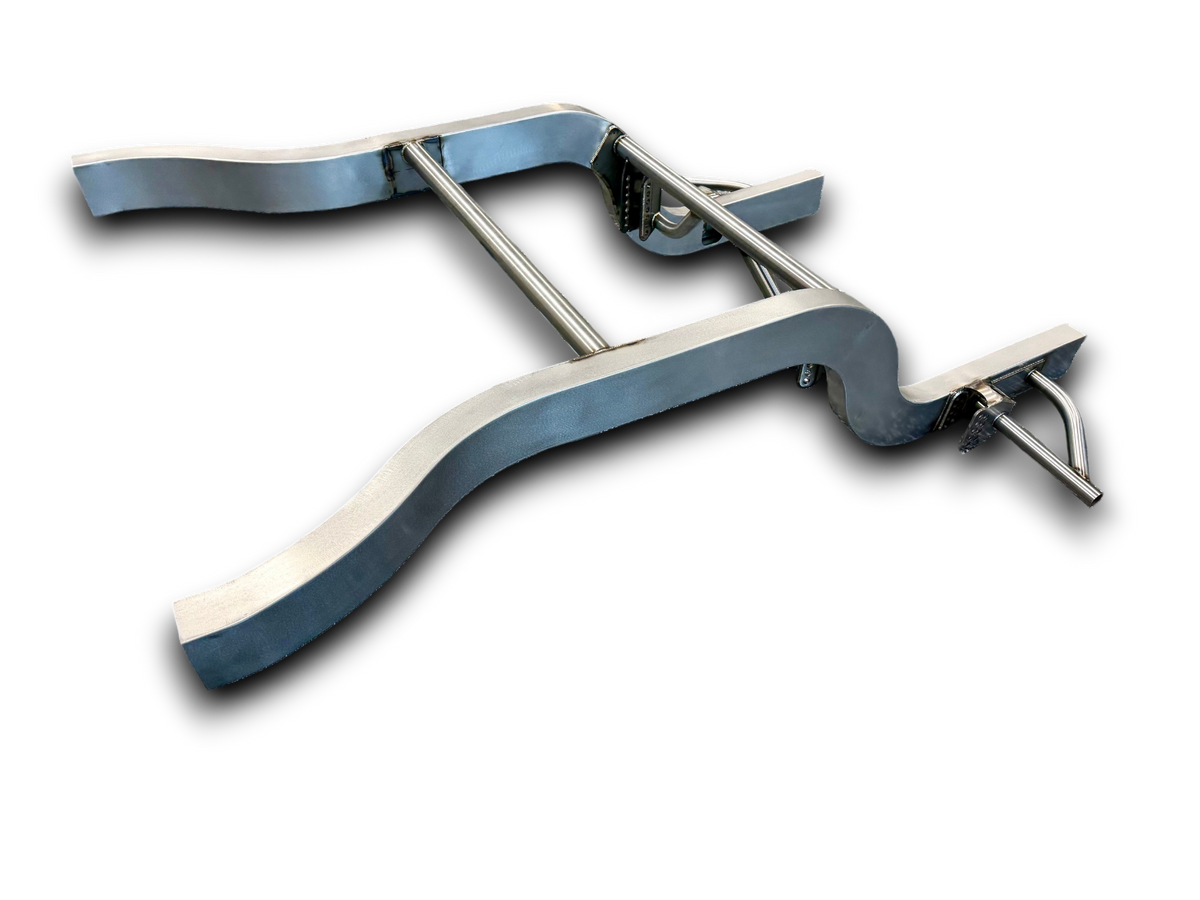

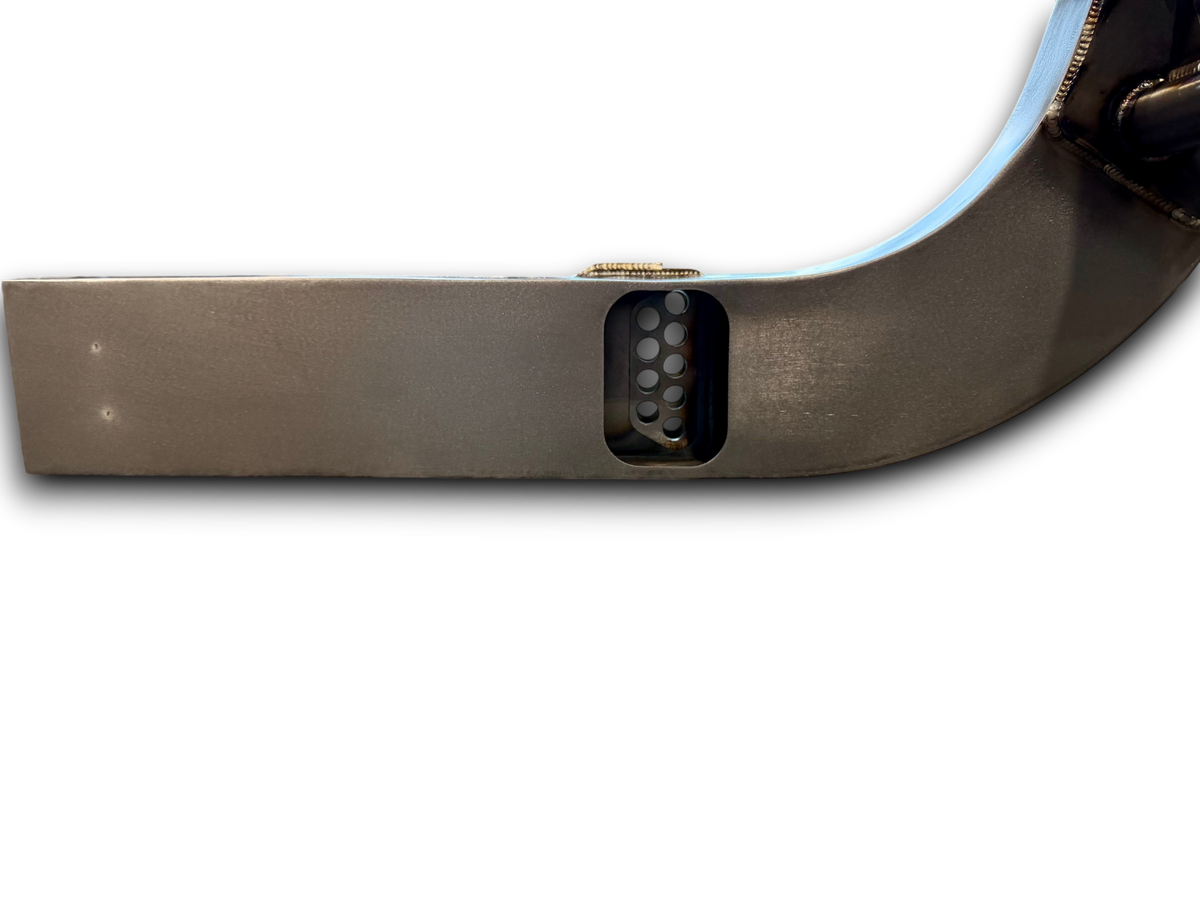

Stock Suspension Mustang Back Half Assembled Kit

Due to popular demand and production capacity, we have brought back our Foxbody back half frame rail assembly. These lightweight fox frame rail replacements (16ga) come assembled with upper and lower torque boxes completely welded. This is the ultimate setup for Foxbody chassis stock suspension builds that want light weight with maximum adjustability for "stockish" suspension builds.

Specs:

• Welded 16ga frame rails
• Frame rails maintain a flat profile for a tub to mount nicely to
• Frame rails do not require a mini tub notch
• Frame rails are 2" long on both ends allowing for a refined placement in the race car based on geometry requirements

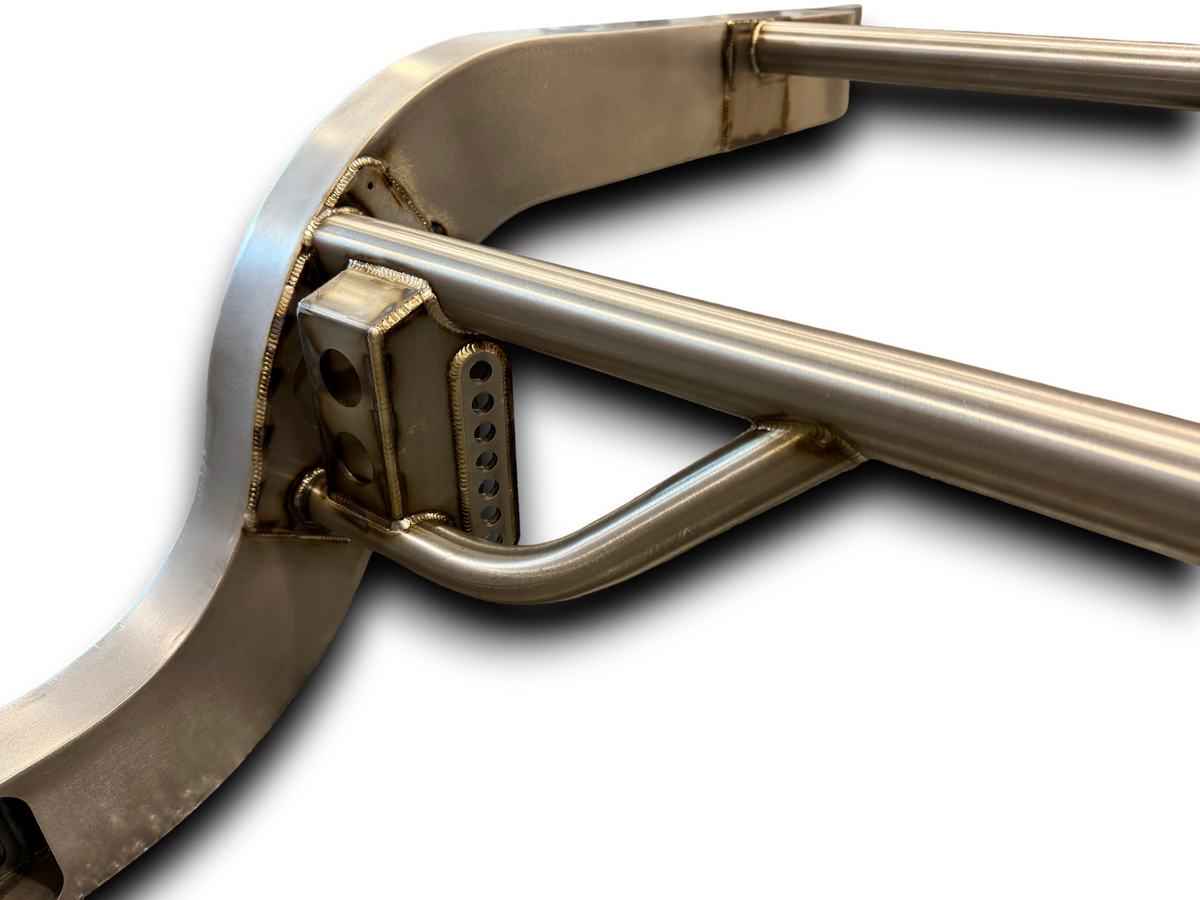

• HC&D Extended upper torque boxes

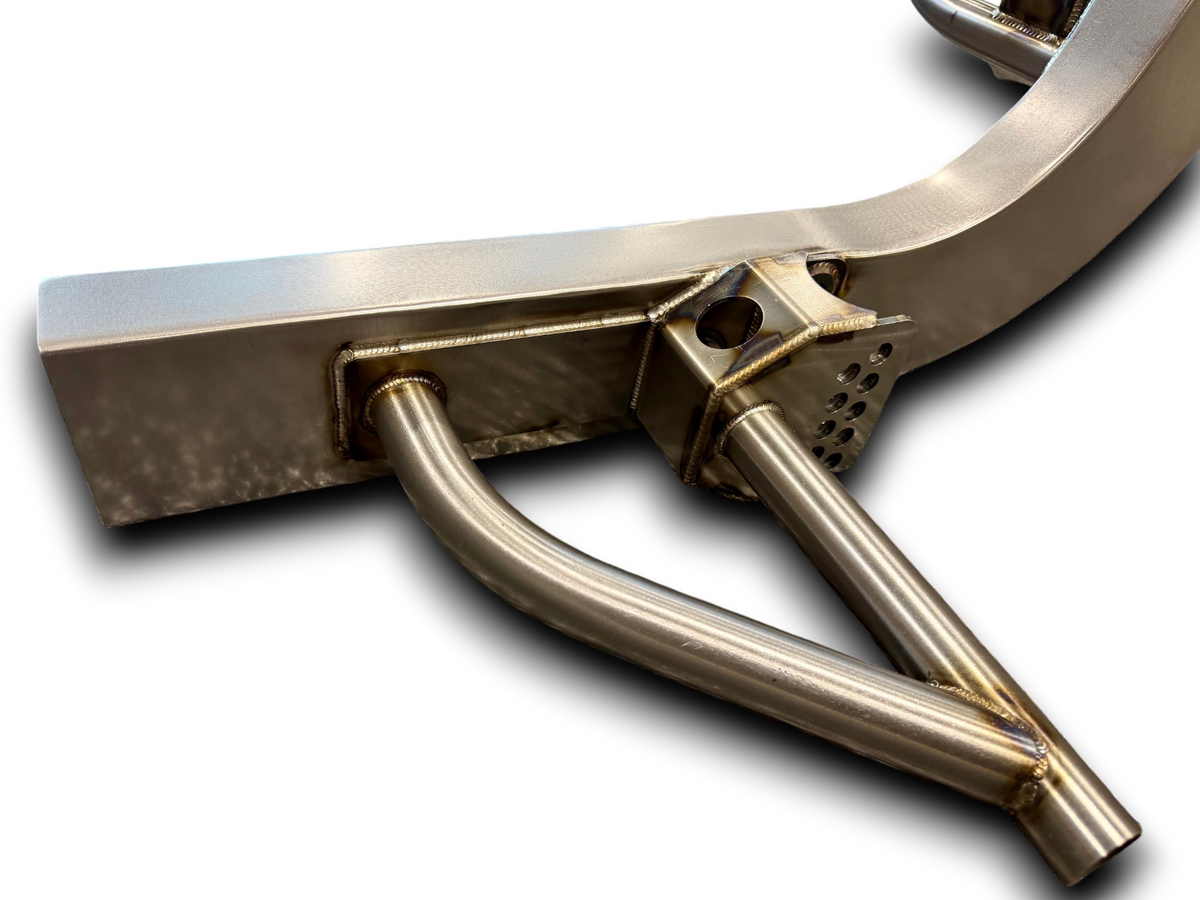

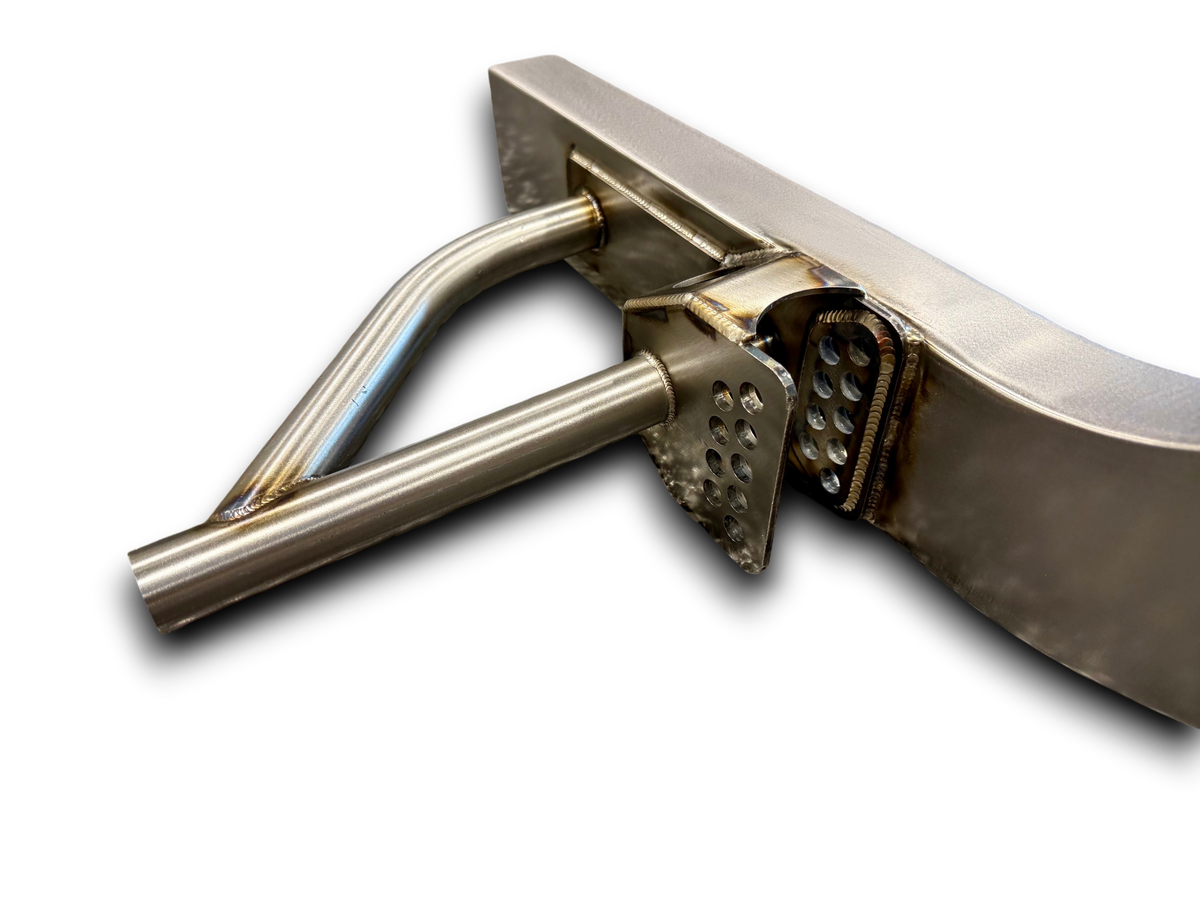

• HC&D Lower tubular torque boxes
• Rear cross tube welded in for shock or ARB mounting
• 1/2" Bolt holes
• Weighs 52 lbs

***Welding Required***

***Frame rails are non-structural and require the upper and lower torque boxes to be tied into the chassis with tubular supports***

***Pick up or Freight Required. Call the shop to order 931-820-0619***
