Stock Suspension Mustang Lower FAB 9 Bracket Assembly w/ Integrated HD ARB

For performance-minded enthusiasts seeking efficiency, our precision jigged Stock Suspension Mustang Lower FAB 9 Bracket Assembly with integrated HD ARB eliminates fabrication time and guesswork. Engineered with 4130 cross support tubes and comprehensively welded with shear tubes, doublers, and boxins, this ready-to-install assembly integrates seamlessly with your housing blank. The design includes a pre-welded integrated HD billet arm ARB.

Specs:

• Jig assembled and welded
• 35" LCA bracket centers
• 26" shock bracket centers
• 20" HD ARB arm centers
• 7 1/4" Billet 4130 HD ARB Arms
• 3.5" Axle tube radius
• 1/2" Bolt holes
• Compatible with stock length lower control arms (with adjustment heims)
• Spacing between control arm brackets designed to be 3/4" (same as 4 link) to remove stress on LCA bolts
• Shock mount holes 3/8" with 3/4" spacing
• Pro-Jack notches

Assembly includes:

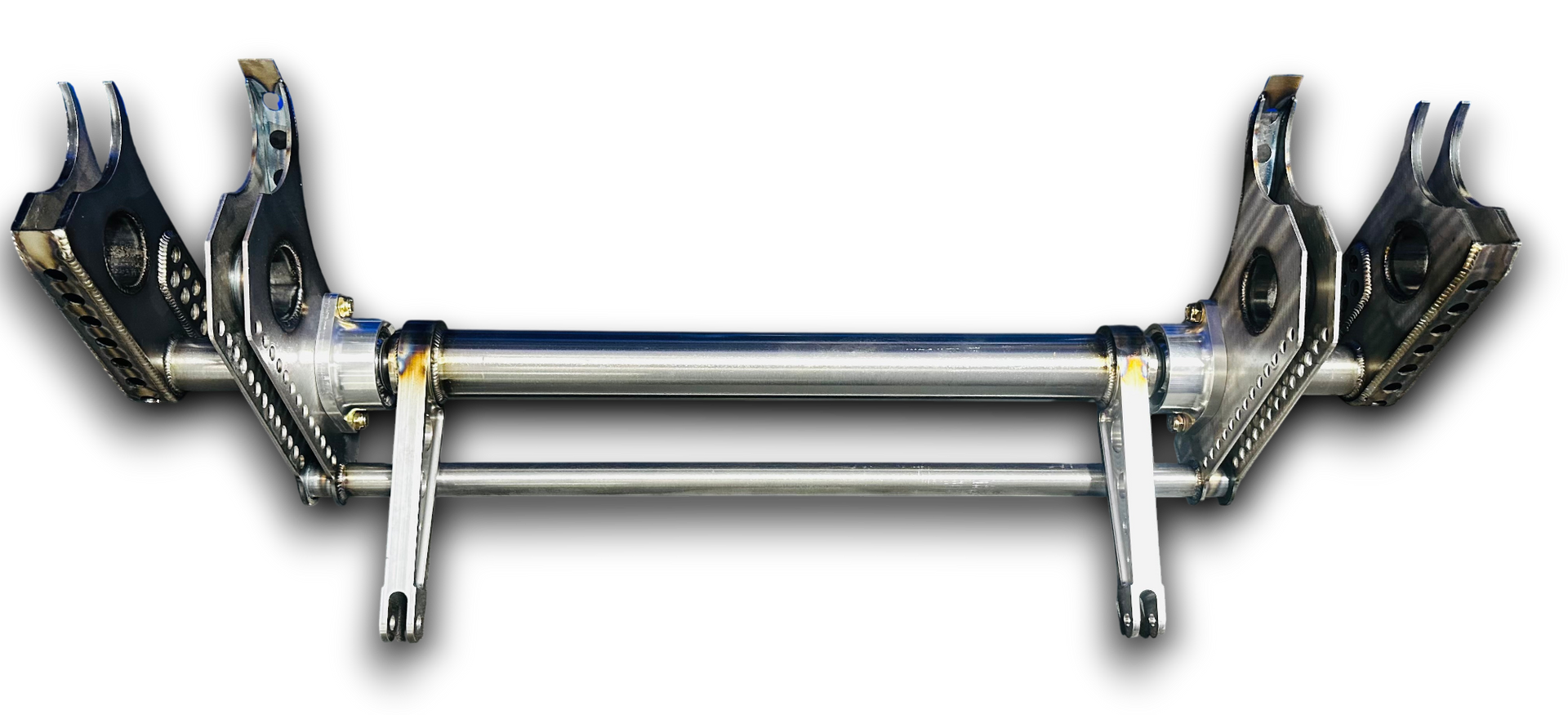

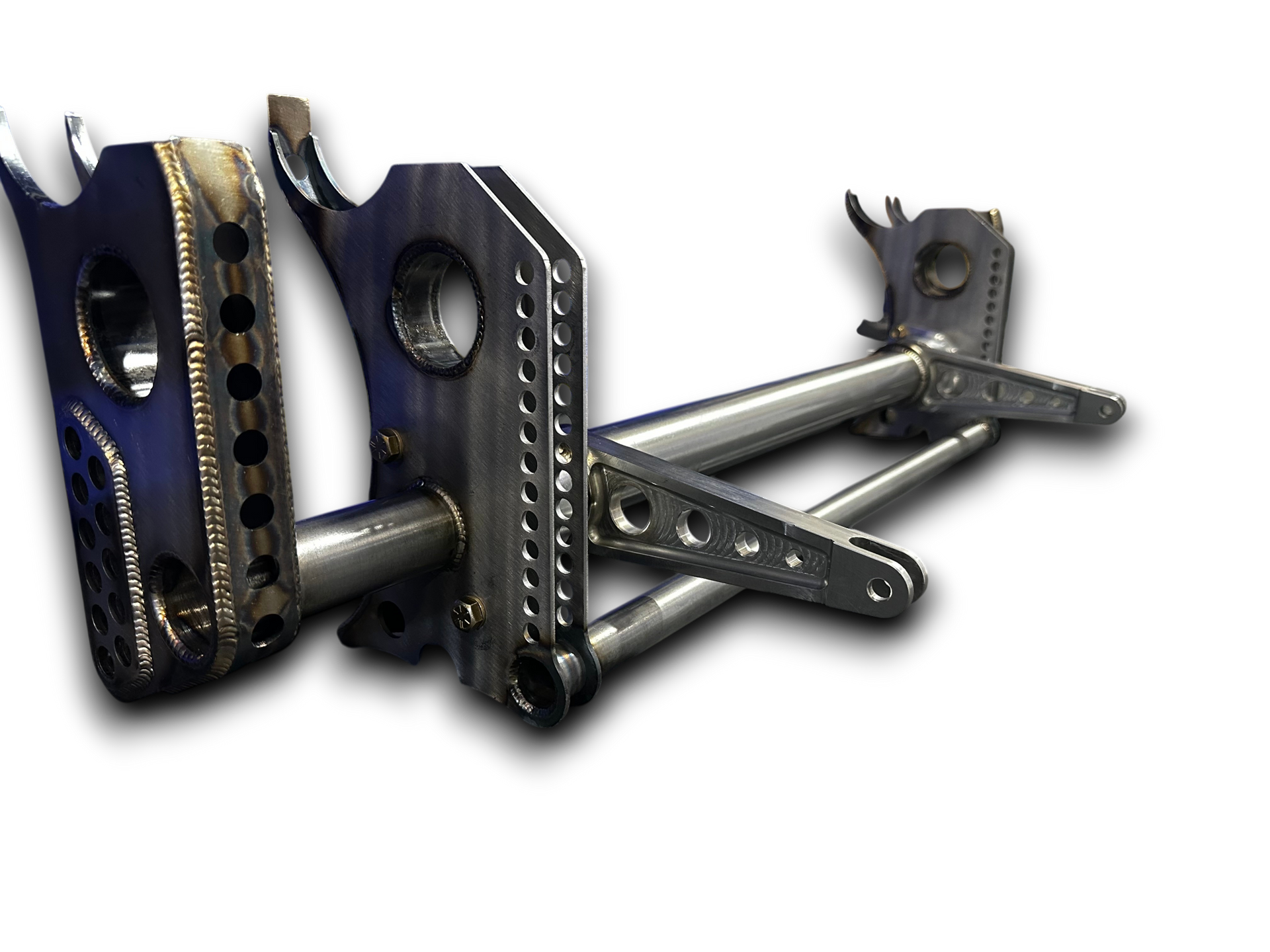

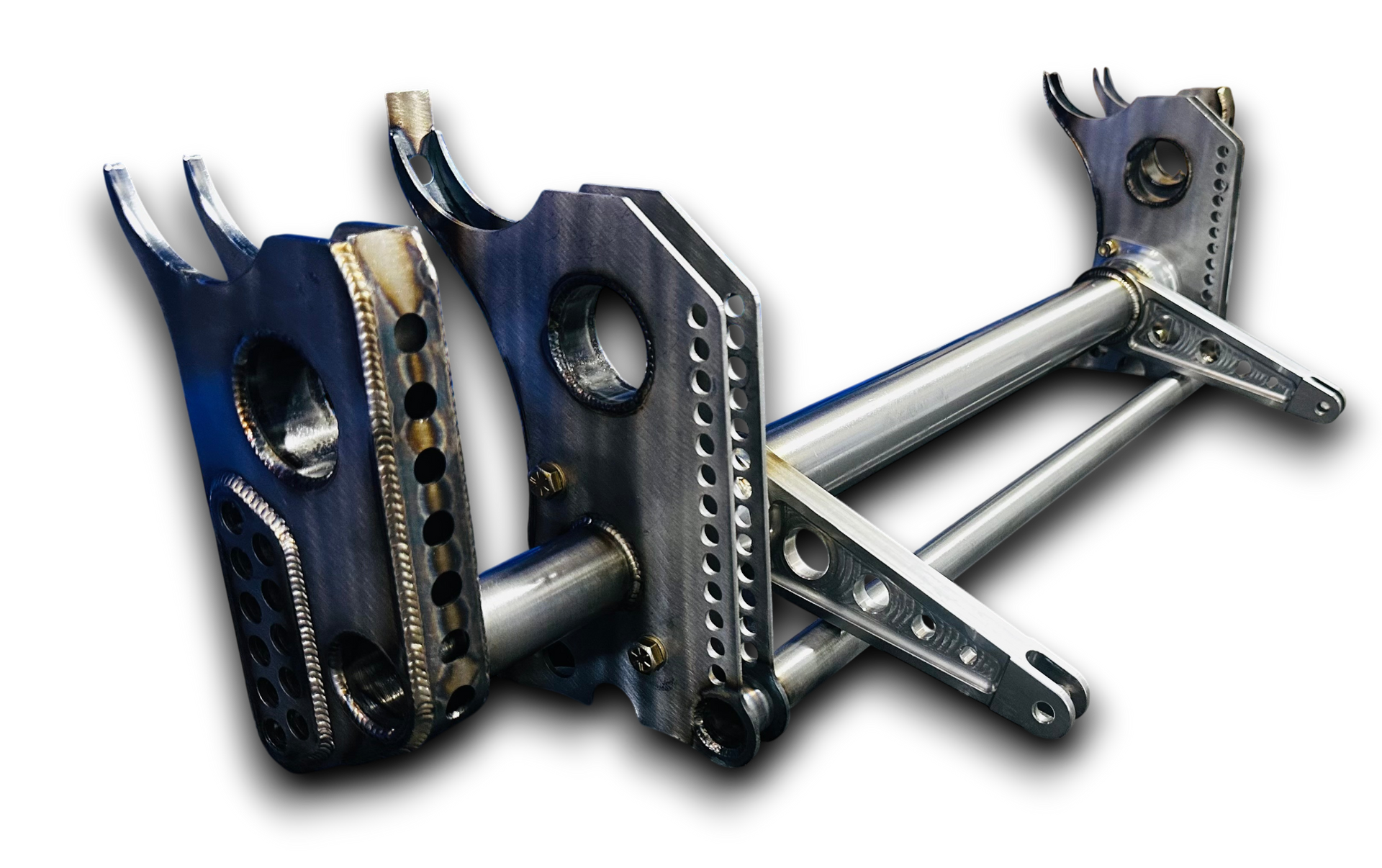

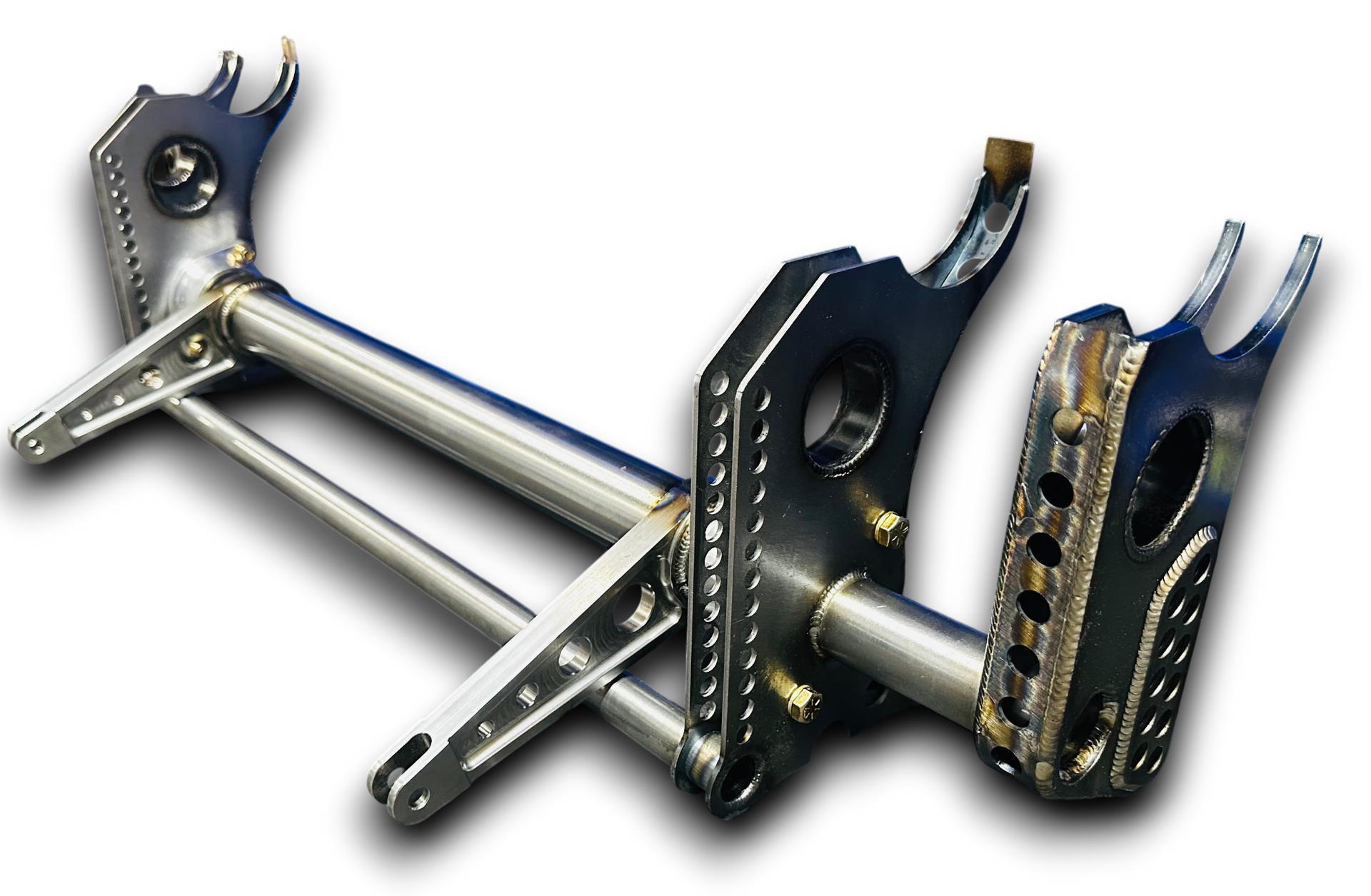

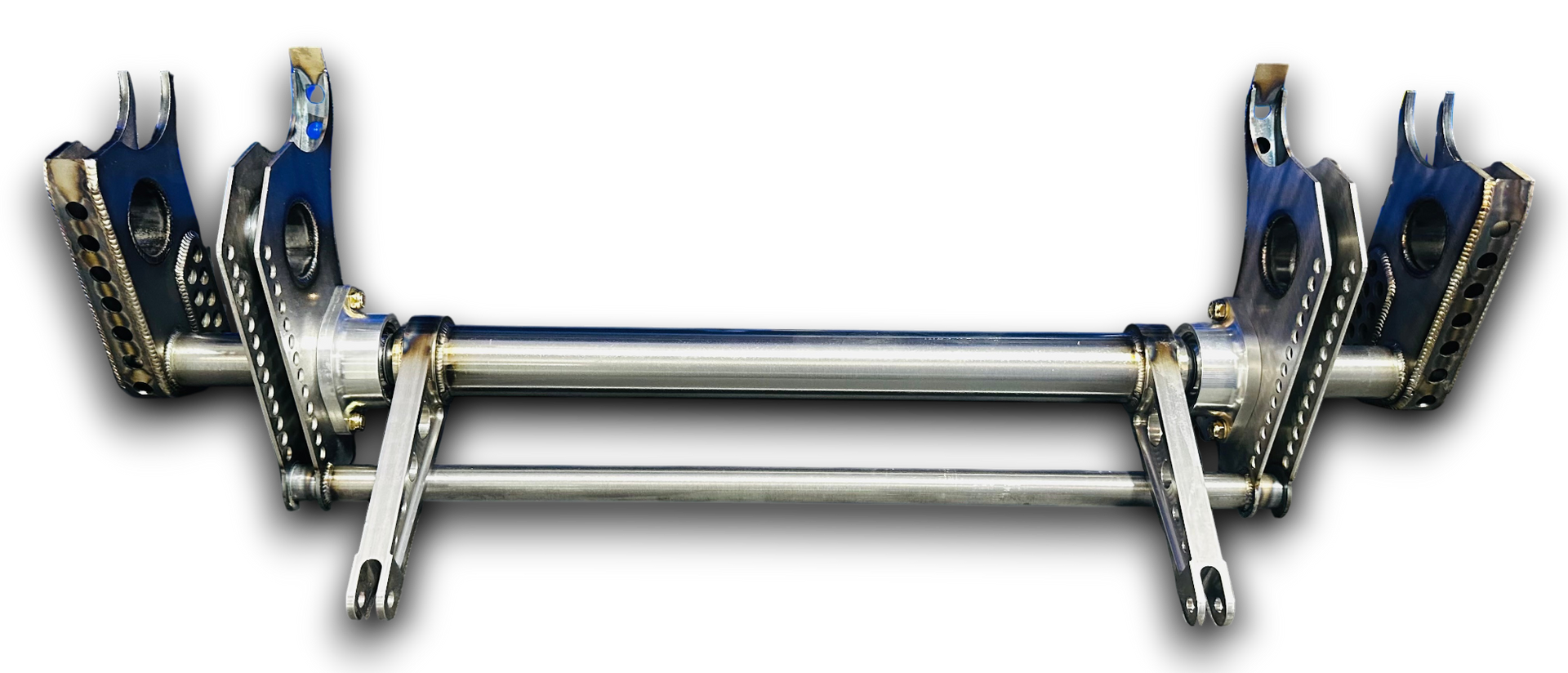

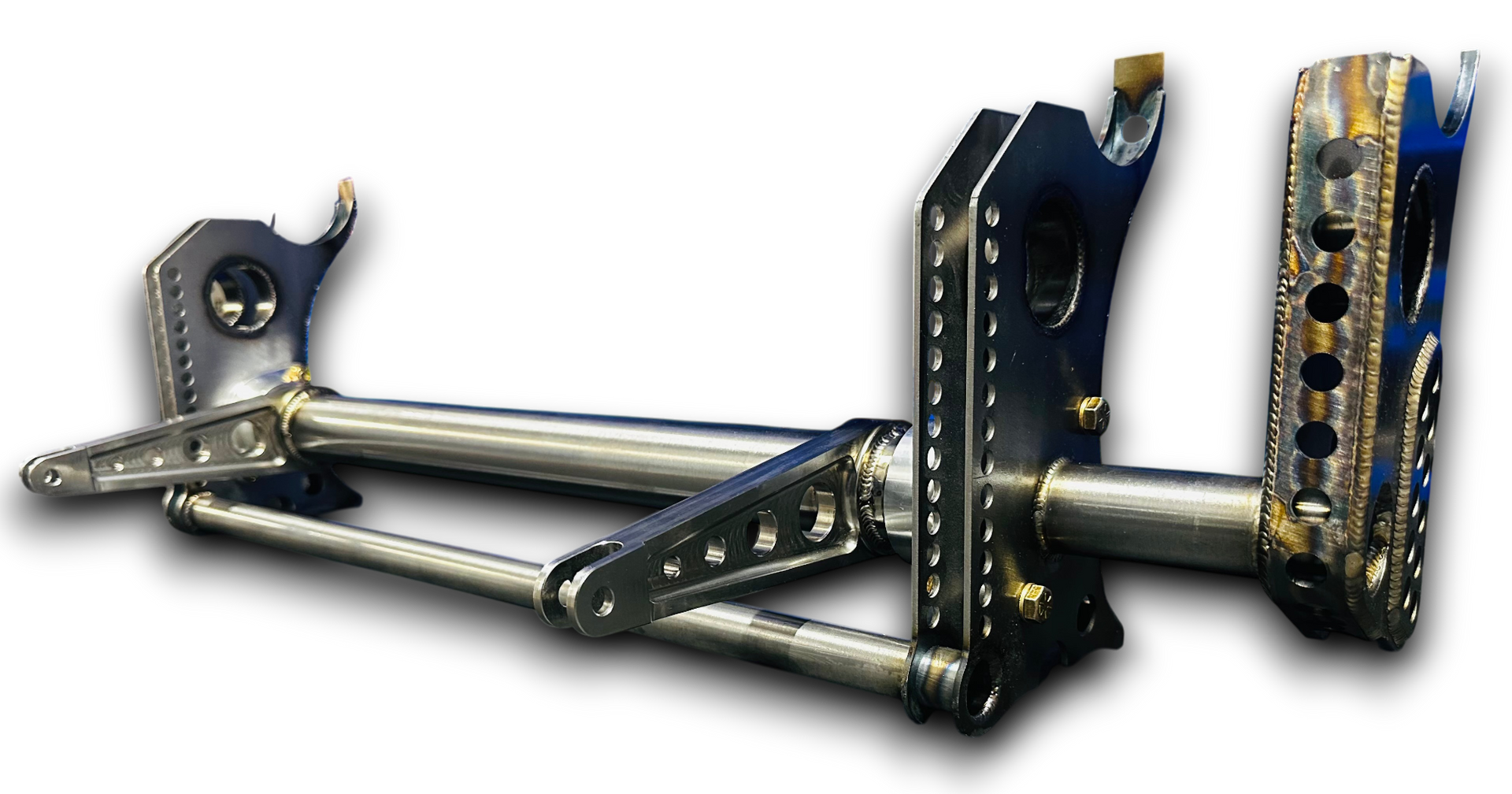

• 1ea LCA/Shock bracket welded assembly with integrated HD ARB as pictured

***Welding Required***

***Compatible with housings using a 3 1/2" diameter axle tube***
