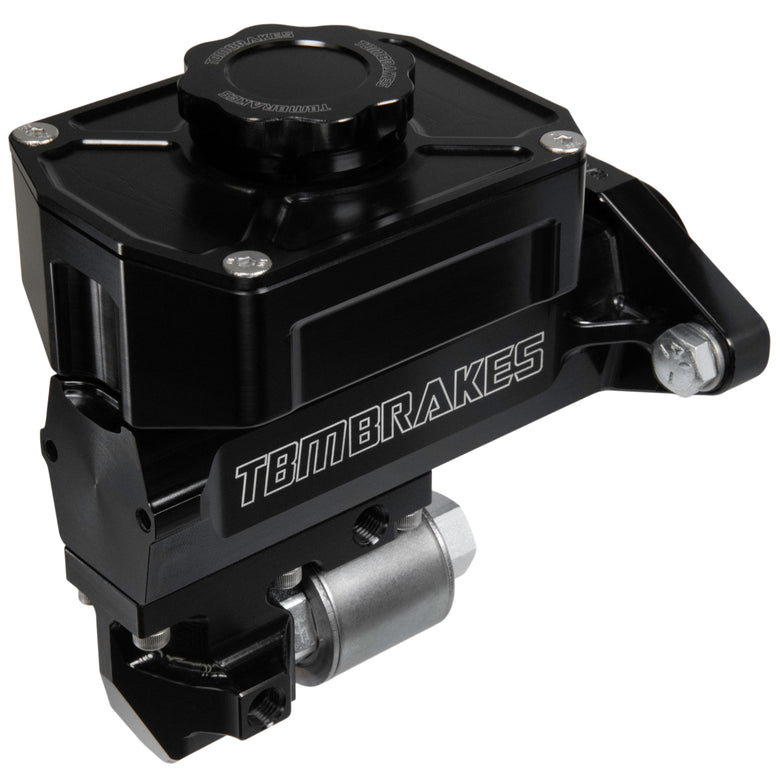

TBM Modular 1.032" Bore Billet Master Cylinder

TBM Modular Billet Master Cylinder 1.032" Bore (Reservoir Top)

Years of development have gone into this all new TBM Billet Modular Master Cylinder which answers the needs of racers and hot rodders alike. For years our brakes have rapidly developed to create world class braking systems. However, the control system of a car's braking system is the master cylinder. While most brake master cylinders are cast spinoffs of old technology that lack options in internal and physical outside sizing, have leaking issues, and reliability issues. The TBM brake master is a ground up engineered design to remedy those questions and offer new solutions for builders.

Features:

• Master Cylinders held to exact tolerance and precision for out of the box performance
• Compact Design fits where others don't (an inch or more shorter than standard masters)
• Modular design allows for adaptability on the top (reservoir) and bottom (outlet plate)
• Symmetrical Outlet plate gives you the ability to run the outlet fittings on either side of the master cylinder
• Standard outlet plate offers better line routing than traditional master cylinders with down facing or side facing outlet fittings
• 3an Female & 1/8" NPT outlet fittings
• Fully captured pushrod (Zero risk of pulling out)
• Hard Coated pistons avoid internal wear and debris with extended use that can clog and degrade brake caliper and system performance
• Front threaded mounting holes offer ability to rigid mount the front of the master cylinder in chassis cars with add on steel plate
• Oring construction for zero leaks
• Easily swap from reservoir to remote mount with P/N 41-0004
• 1lb. lighter than most aftermarket tandem master cylinders
• Bright Black Anodize finish for ultimate durability
• EPDM Seals
• Stainless Hardware
• Made completely in the USA in Bradenton, FL

Included:

• 1.032" Bore Modular Master Cylinder Body
• Reservoir Top
• Symmetrical Outlet Plate OR Integrated LineLock
• Standard Length (3.416") 3/8-24 Pushrod
• (2) 1/8NPT Plugs
• (2) 1/8NPT to 3an Male Fittings
• (2) 3an Male Unions
• (2) 3an Male Plugs
