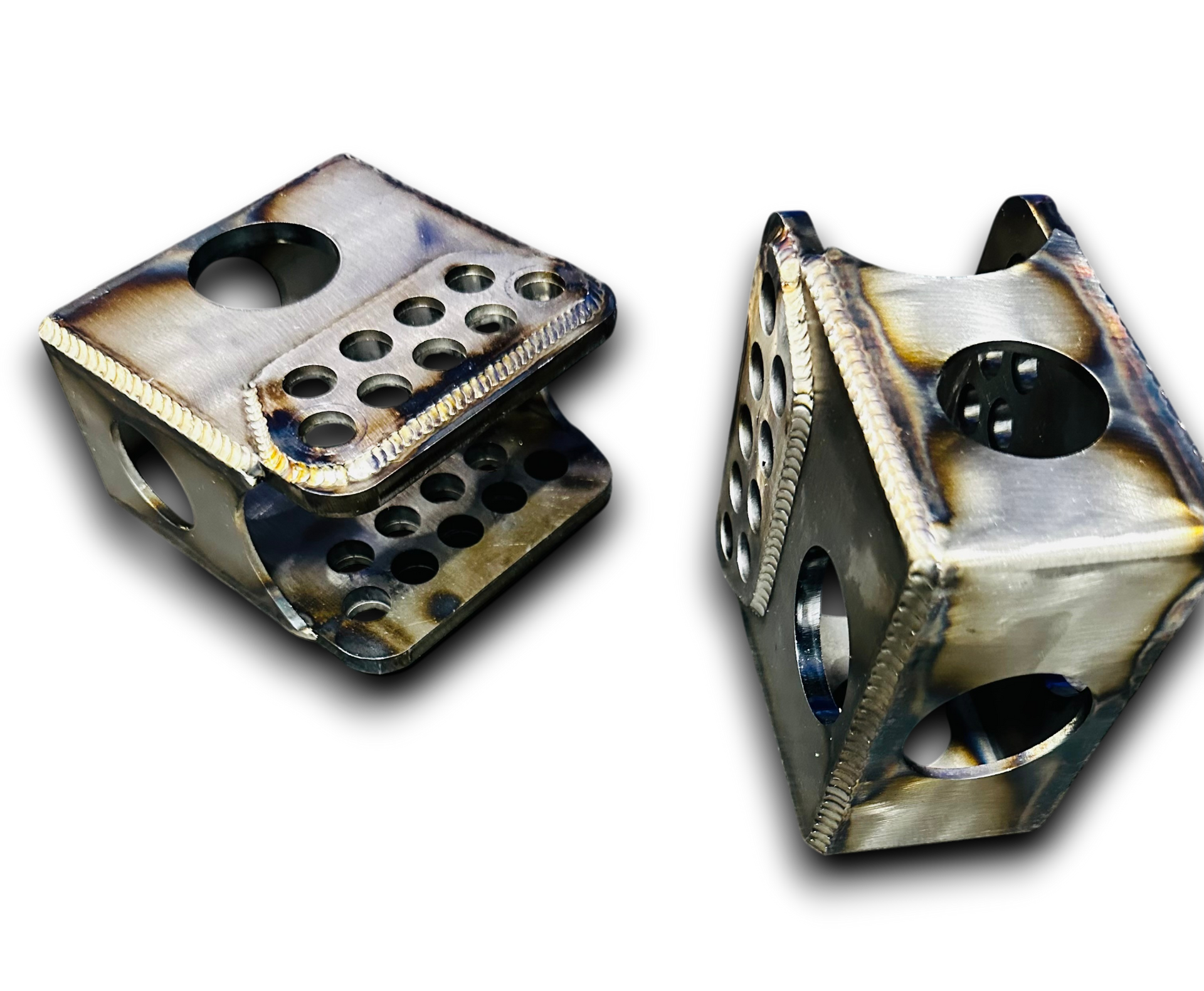

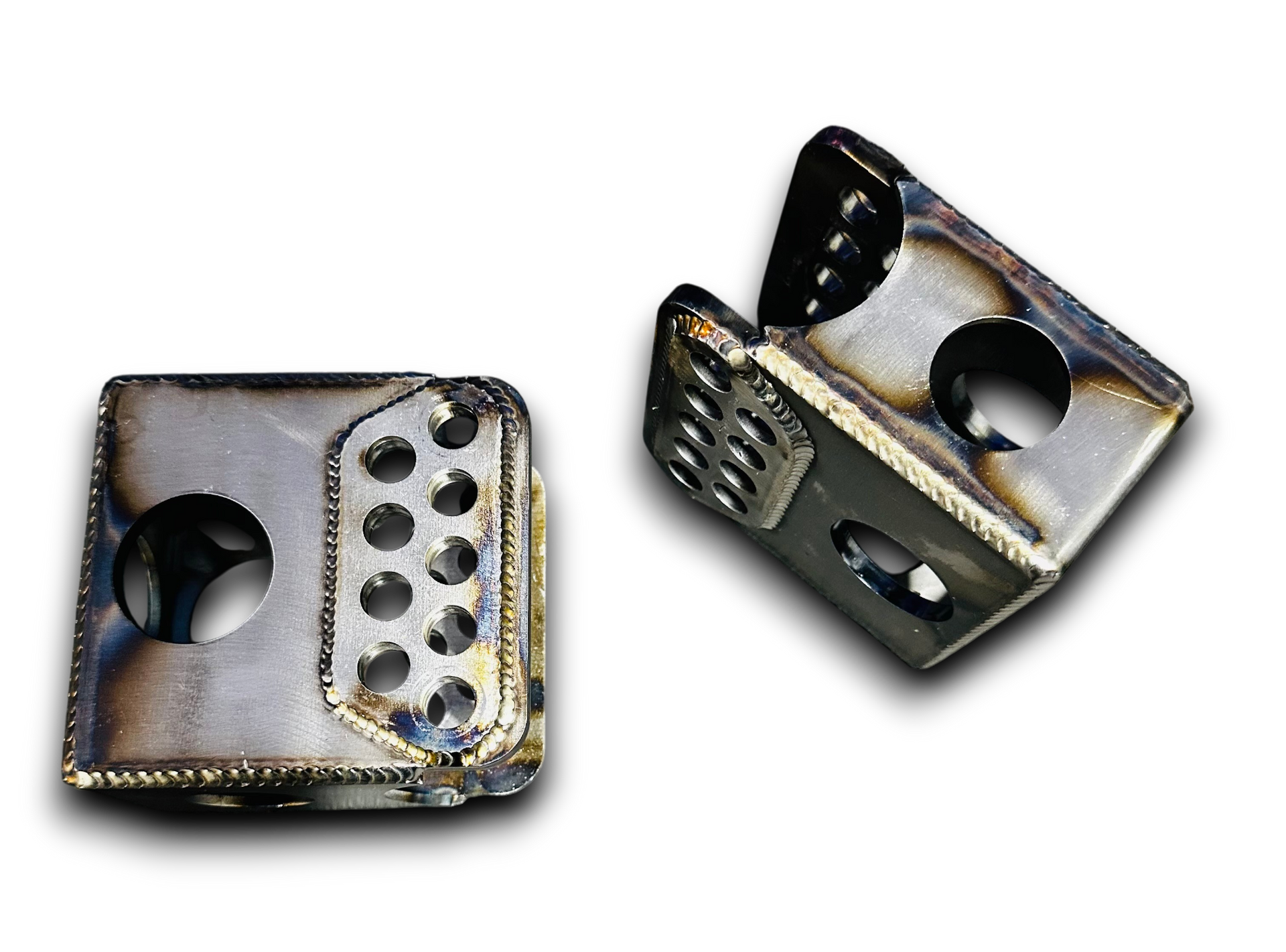

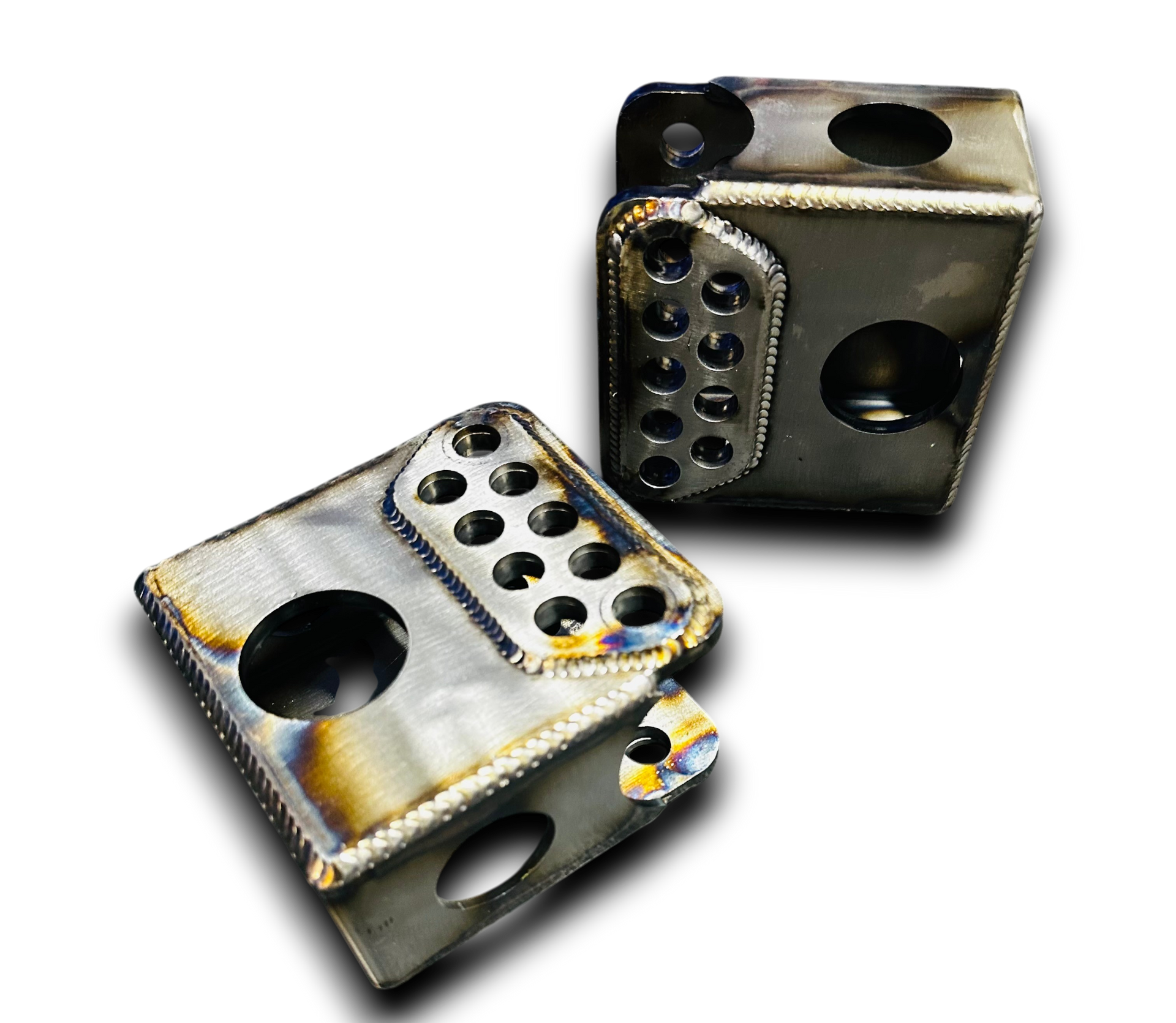

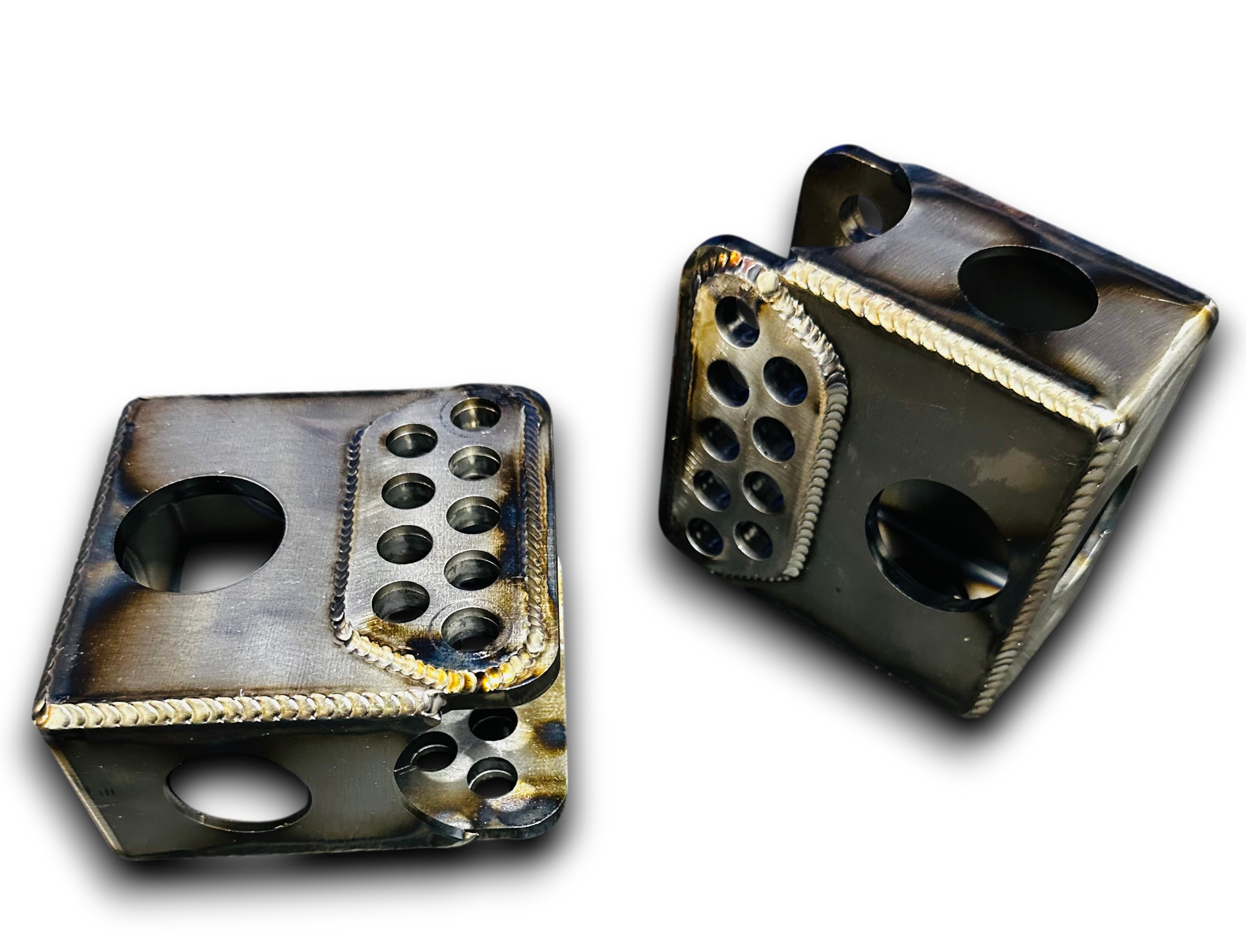

Universal Torque Box (Assembled)

Our welded universal torque box brackets are for applications that need more hole adjustment with the flexibility of locating them anywhere needed on a race cars rear suspension area. These are great universal torque boxes that can go on virtually any car.

Universal torque box bracket kit specs:

• 1/4" main bracket
• 1/8" main bracket doublers
• Uses a 1 1/2" support tubes
• Allows for a support tube to pass between brackets and an integrated join with a support tube off the rear for strength
• 1/2" Bolt holes
• Designed for a 1.865" spacing between the brackets.  Misalignment spacers can be purchased separately

Kit includes:

• 2ea Welded Universal Torque Boxes
